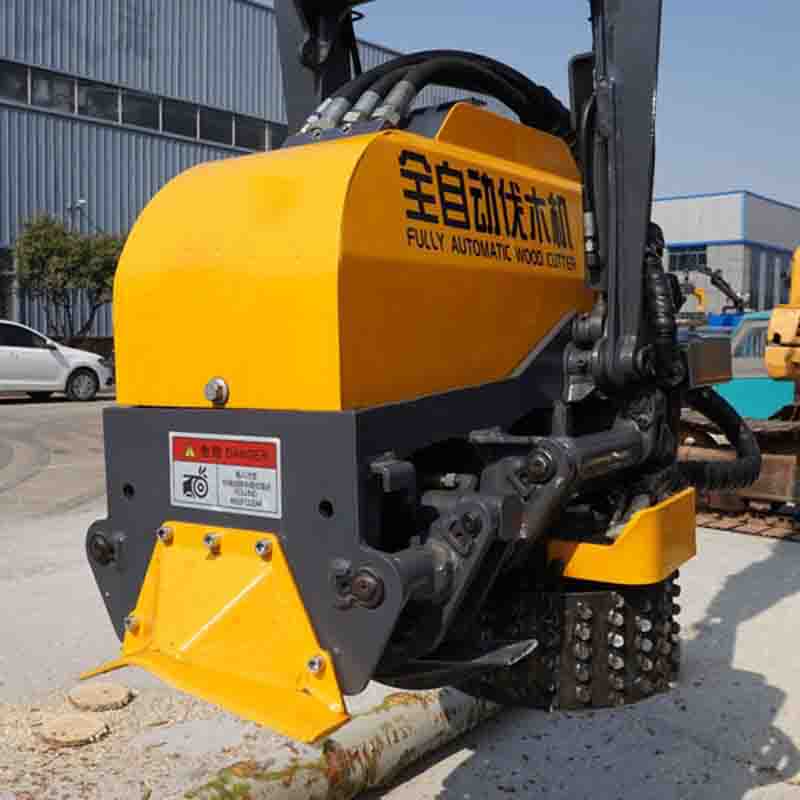

The LC5 logging machine is specifically designed for high-intensity construction work. Its overall frame is constructed from high-strength steel, ensuring outstanding performance. It features various convenient functions such as automatic feeding and assisted branch removal, making operation easy. The linkage mechanism feeding device optimizes power performance, meeting diverse production requirements. The programming control system, paired with a high-performance proportional valve, allows for setting parameters and obtaining logging data on the screen, meeting actual logging needs.
Email: [email protected]
The fully automatic logging machine is a forestry machinery that integrates functions such as cutting, pruning, and truncation. It achieves efficient operations through a hydraulic system and intelligent control, with an efficiency that can be over 40 times higher than manual logging.The overall frame of the LC5 fully automatic logging machine is made of high-strength steel, which makes it particularly outstanding in high-intensity construction operations. It features automatic feeding, assisted branch removal, jam handling, flow self-adjustment, and automatic tensioning of the chain saw, making operation easier.
| Category | Parameter | Value |
| Dimensions | Weight | 560kg |
| Length | 1260mm | |
| Width (Closed/Open) | 910/1160mm | |
| Height | 1160mm | |
| Power Consumption | 40 – 60kw | |
| Working Pressure | 22.5mpa | |
| Saw Device | Hydraulic Chain Saw | – |
| Maximum Cutting Diameter | 350mm | |
| Saw Plate Length | 18 inches | |
| Chain Pitch | 0.404〞 | |
| Chain Saw Oil Tank Capacity | 3L | |
| Chain Saw Speed | 40m/s | |
| Feeding Device | Feeding System | 2 feeding wheels |
| Maximum Opening Feeding Wheel | 350mm | |
| Feeding Force | 17kn | |
| Feeding Speed | 4m/s | |
| Pruning Device | Auxiliary Knife Device | 2 + 1 |
| Maximum Opening of Front Knife | 390mm | |
| Maximum Opening of Rear Knife | 350mm | |
| Auxiliary Knife and Feeding Wheel Control | Individually Controlled |
Excellent geometric construction
The feeding mechanism of the linkage mechanism optimizes its dynamic performance to meet various working requirements in production.
Stable and reliable
The pressure adjustment is accurate and stable, and it can achieve sawing with increased and decreased pressure, as well as weighing. The working arm can be quickly lifted, ensuring more stable operation.
Programming control system
Equipped with a high-performance proportional valve and an independently developed control system, parameters can be set as needed on the display screen to obtain relevant data for logging, making the operation more in line with actual logging requirements and user operating habits.
Made with sincerity
Computer board control, reliable and durable length measuring mechanism, high intelligence and precise measurement, ensuring more accurate cutting length.
Excellent performance The LC5 logging machine features a self-developed saw unit assembly with a maximum cutting diameter of 350mm, which possesses sufficient cutting capacity and automatic control to achieve optimal performance in cutting speed.
As a professional and reliable supplier, we are experienced in the Quality Inspection and Control. Every product is strictly inspected before it is delivered to our customers.
We are so glad to provide you the most favorable prices for our customers. And the prices are negotiable,so both parties can achieve a win-win result.
Aadequate equipment, professional logistics, clear division of labor, timely delivery.
● Equipment Selection Guide
● Detailed technical comparison
● One-on-one service
● One-year warranty
● Local after-sales service network, with faster response speed
● Inventory of vulnerable parts
● Remote and on-site setup and operationinstructions
● Logistics timeliness
● Ensure timely delivery
● Transport from the port to your designated destination
A: We will ship the goods within 3 to 7 days after receiving the payment. The exact time may vary depending on the distance.
A: Please inspect them on the spot when receiving the goods. If there is any damage, take photos immediately and contact us for assistance in handling the issue.
A: The engine, hydraulic system, etc. are all equipped with Liugong’s original factory products or designated brands.
A: The sales consultant will provide professional configuration suggestions based on your specific working conditions.
A: The whole machine is usually covered by warranty for 12 months or 2000 hours (whichever comes first). The specific period is as stated in the warranty manual.
A: After calling the service hotline, the engineer will usually contact and arrange the repair within 2 to 24 hours.
A: Basic operation and maintenance guidance will be provided upon delivery of the equipment, and further consultation is available afterwards.
For more details, kindly please contact us or send us inquiry, we’ll reply you within 8 hours. Hope we can reach a mutual success!
