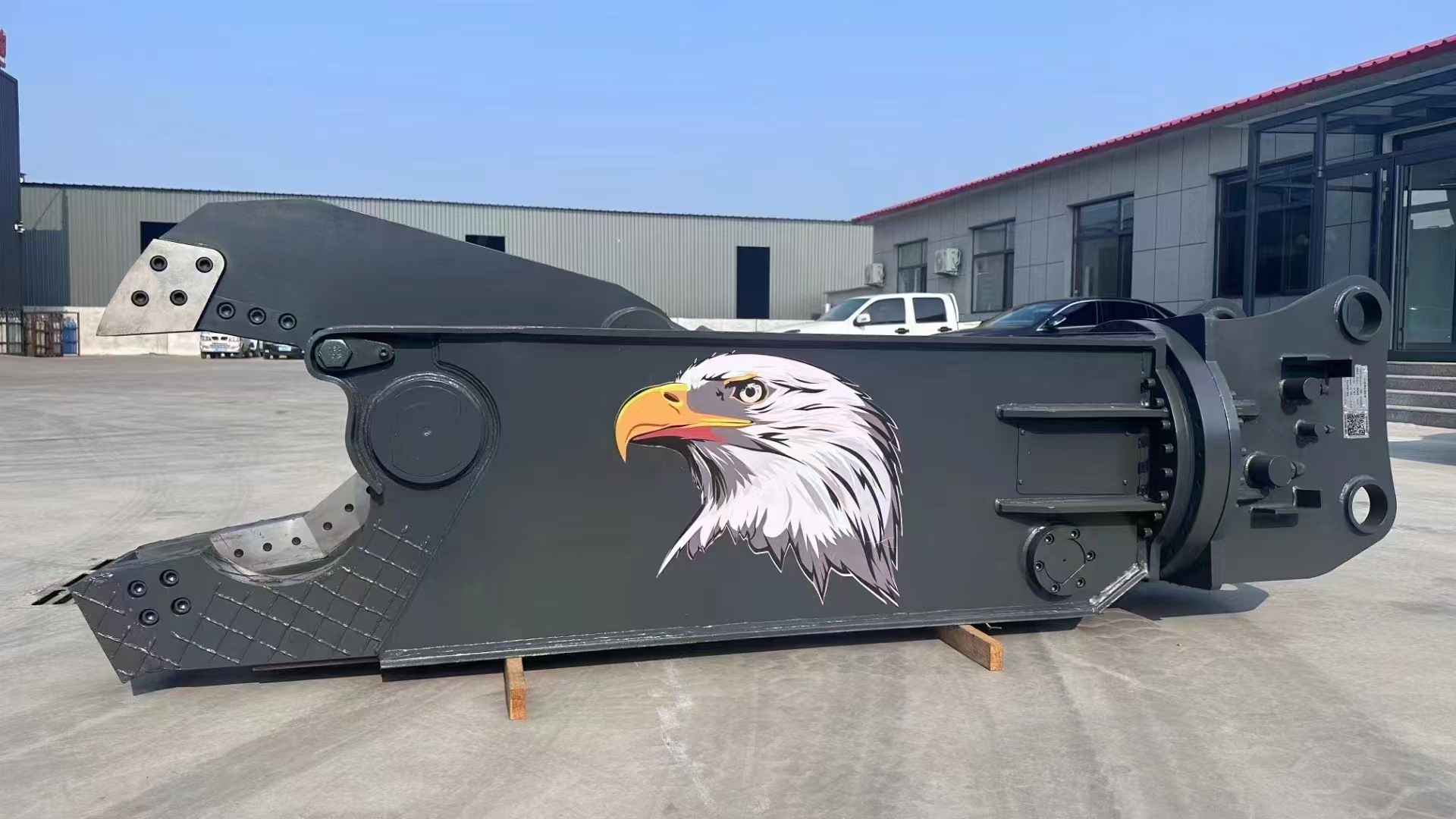

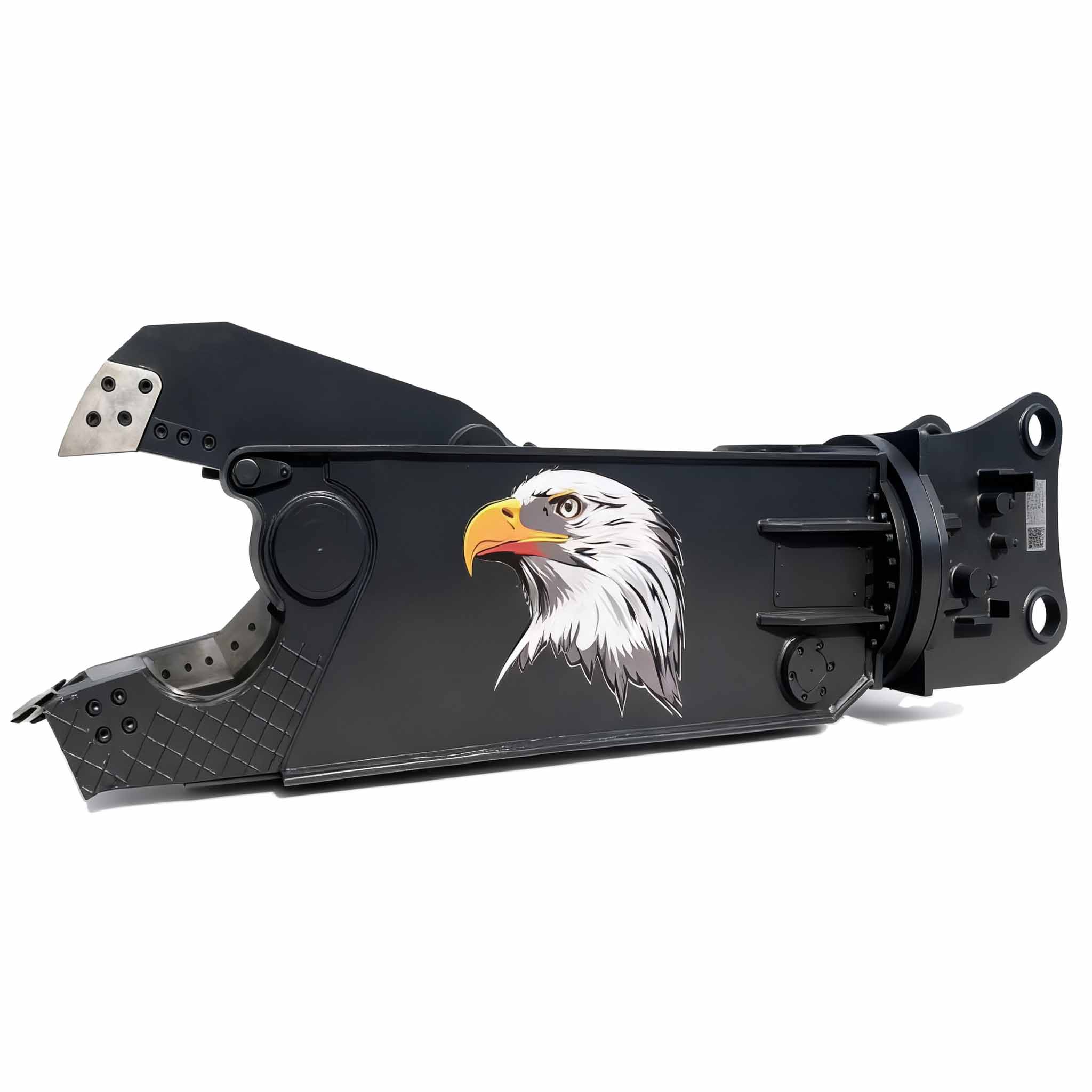

Hydraulic Steel Eagle Beak Shears

Hydraulic Steel Eagle Beak Shears

Product Introduction

The Hydraulic Steel Eagle Shear is a high-performance hydraulic cutting tool specifically designed for scrap metal processing. Manufactured from special steel materials, it boasts exceptional ductility and impact resistance, ensuring long-term durability and stable, reliable operation. Its core advantage lies in the integration of advanced hydraulic technology with user-friendly design, enabling efficient cutting of various scrap metal materials. It is an ideal choice for scenarios such as steel structure demolition, waste metal recycling, and construction waste processing.

Product Parameter

Item/Model	Unit	YZ30	YZ40	YZ50	YZ60
Weight	kg	2250	3000	4350	6000
Opening	mm	460	600	780	1000
Cutting Depth	mm	530	650	750	850
Height	mm	3030	3400	4260	5200
Width A/B	mm	950/700	1200/700	1350/700	1700/1850
Driving Pressure	kg/cm²	280 – 320	280 – 320	280 – 320	320 – 350
Cycle Time	sec	7 – 15S	9S	15S	15 – 20S
Cutting Force F1/F2/F3	ton	80/100/130	100/120/150	120/150/190	150/190/260
Suitable Excavator	ton	20 – 28	28 – 40	30 – 49	45 – 60

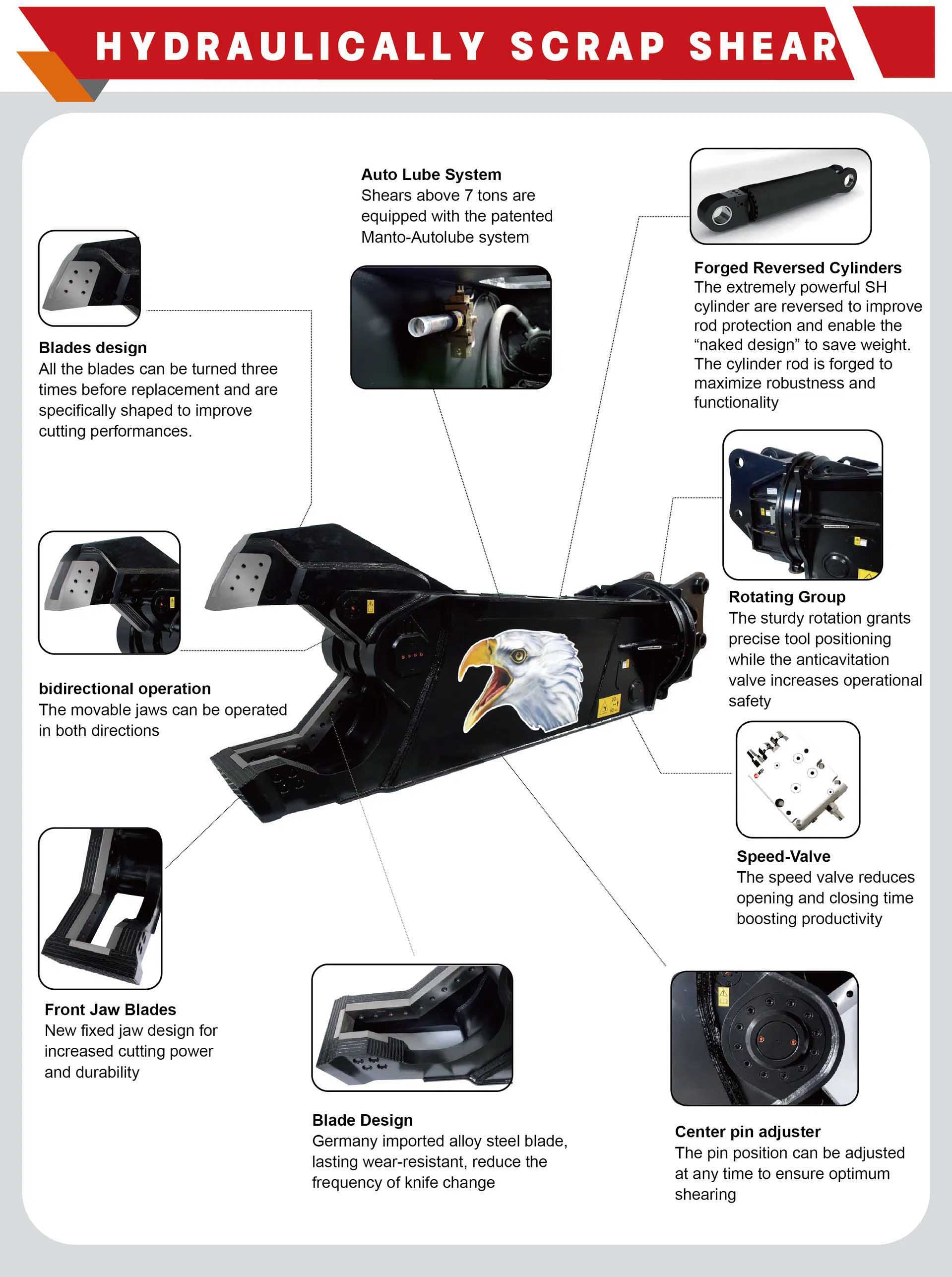

1. Auto Lube System
   • Shears above 7 tons are equipped with the patented Manto-Autolube system
2. Blades design
   • All the blades can be turned three times before replacement and are specifically shaped to improve cutting performances.
3. bidirectional operation
   • The movable jaws can be operated in both directions
4. Forged Reversed Cylinders
   • The extremely powerful SH cylinder are reversed to improve rod protection and enable the “naked design” to save weight.The cylinder rod is forged to maximize robustness and functionality
5. Rotating Group
   • The sturdy rotation grants precise tool positioning while the anticavitation valve increases operational safety
6. Front Jaw Blades
   • New fixed jaw design for increased cutting power and durability
7. Speed-Valve
   • The speed valve reduces opening and closing time boosting productivity
8. Blade Design
   • Germany imported alloy steel blade,lasting wear-resistant, reduce the frequency of knife change
9. Center pin adjuster
   • The pin position can be adjusted at any time to ensure optimum shearing

Product Advantages

1. Exceptional Production Efficiency
   • Significantly improves original operational efficiency while reducing labor and equipment costs.
   • Compared to traditional oxy-cutting methods, it minimizes material loss (avoiding cutting deformation and heat-affected zones), saving resources.
   • Compatible with excavators (20-60 tons, see model matching table for details), allowing quick integration into existing engineering machinery systems for immediate use.
2. Comprehensive Application Coverage
   • Applicable Fields: Steel structure demolition, waste factory/building debris processing, scrap vehicle dismantling, metal recycling yards, etc.
   • Applicable Materials: Scrap iron sheets, scrap vehicles, steel pipes, steel cans, H-beams, I-beams, steel components, and other metal scrap.
3. Flexible Configuration Options
   • Offers both rotating models (supporting 360° rotation) and fixed models (fixed-angle operation). Users can customize based on actual working conditions to meet diverse scenarios.

Service & Maintenance Convenience

1. Quick Replacement of Wear Parts
   • Key wear components (such as cutting blades) are designed for on-site quick replacement, eliminating the need for factory returns and significantly reducing downtime.
   • Blades support four-side switching (four-edge design), fully extending blade lifespan and lowering usage costs.
2. Continuous Performance Optimization
   • The second-generation Eagle Shear series upgraded products enhance cutting force by reinforcing body strength, optimizing jaw dimensions, and adopting special blade designs. Field-verified results demonstrate more stable cutting performance and high user satisfaction.

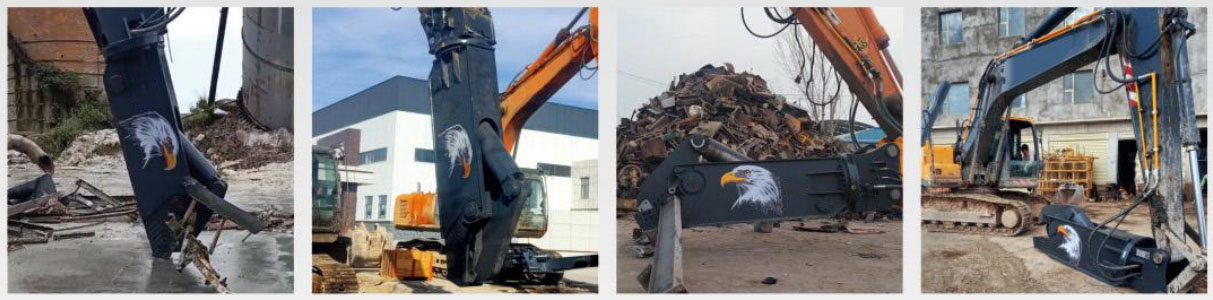

Applicable Fields

Used for cutting operations of H, l steel, automotive beams, factory support beams, etc
