The LC 2 wheels laser screed machine features powerful traction and the OASIS control system. It is a hand-held two-wheel drive model that can level in any direction and is easy to operate. Whether you are leveling concrete or preparing a roadbed, it can provide simple, fast and accurate results. The equipment integrates a laser receiving system (located above the column), which can accurately capture the laser horizontal plane signal. Based on this, the control system automatically and in real time adjusts the height of the leveling head, achieving an ultra-high flatness of ±3mm/3m. This perfectly meets the demanding requirements of industrial floors (such as ultra-flat floors), fundamentally solving problems like uneven ground and water accumulation. Click below to get in touch with us
Email: [email protected]
Two-wheel laser leveling machine – Laser ground leveling machine – Industrial floor construction equipment
The LC 2 wheels laser screed machine features powerful traction and the OASIS control system. It is a hand-held two-wheel drive model that can level in any direction and is easy to operate. Whether you are leveling concrete or preparing a roadbed, it can provide simple, fast and accurate results.
Millimeter-level accuracy, automatic leveling: Utilizing an advanced laser measurement and control system, it automatically levels the surface in real time, eliminating human error.
Efficient integrated operation: Paving, vibrating, and leveling are all completed in one step. The daily construction area exceeds 1,500 square meters, significantly enhancing efficiency.
Strong and flexible chassis: Rear-mounted large-sized tires provide strong ground grip, allowing for smooth steering and stable performance in complex construction sites. Dual-wheel drive offers good maneuverability.
Humanized remote control operation: The operator has a wide field of vision, reducing labor intensity and ensuring safety.
| Base Specifications | |
| Weight | 5,100 lbs | 2,336 kg |
| Width | 6’ 2” | 1.9m |
| Length | 19’11” | 6.07 m (transport mode) |
| Height | 6’4″ | 1.8m |
| Engine (Options) | Kubota V1505, 24.8 Hp Diesel |
| Screed Head Width (Standard) | 13’3″ | 4m |
| Vibrator Width | 12’ | 3.6m |
| Boom Length | 18’ | 5.48m |
Compliant with international trade standards, suitable for sea, rail and road transportation. We provide complete export customs declaration documents to ensure smooth customs clearance.

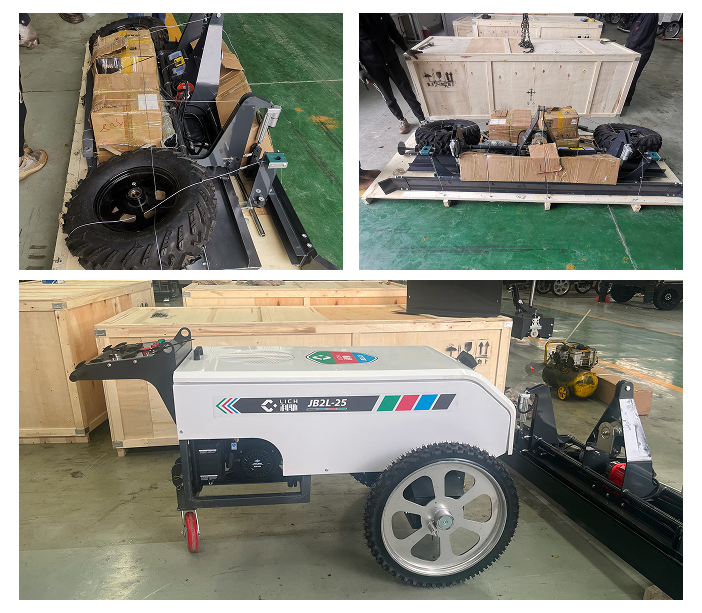

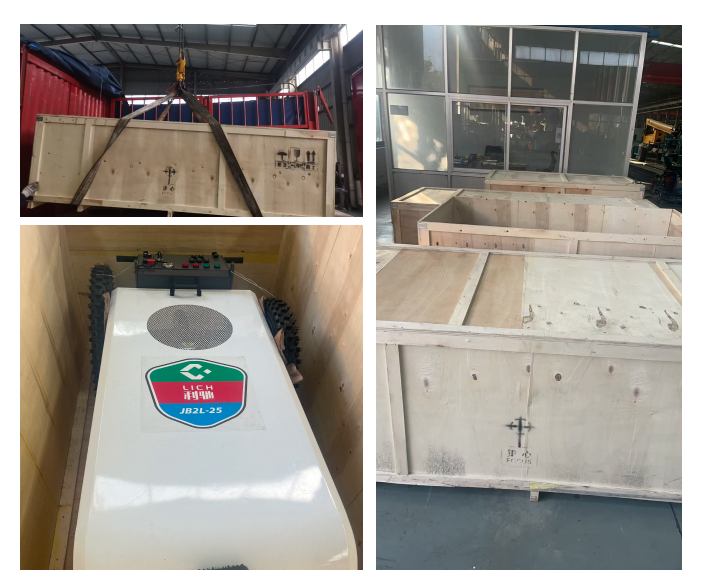

We reject simple packaging and adopt a comprehensive protection plan:
Main frame and core components: Use a sturdy steel-wood structure base to fix the equipment, and cover it with a high-strength waterproof composite film and custom protective corners, effectively preventing moisture, rust, and collision.
Precision components and appearance: For key precision components such as laser emitters and hydraulic cylinders, we provide exclusive customized foam padding for fixation to prevent displacement and vibration. The entire machine is wrapped with an all-around film covering, effectively resisting scratches and damages during transportation.
Clear identification: The packaging is clearly marked with equipment information, lifting position, moisture-proof and pressure-resistant, etc. (these are) international standard identifications, guiding loading and unloading personnel to operate in a standardized manner.
Laser Leveling Machine Frequently Asked Questions (FAQ)
Main purpose?
Replace manual labor, automatically complete concrete paving, vibration, and leveling, quickly creating high-precision ground surfaces.
Applicable scenarios?
Warehouse, factory, parking lot, shopping mall, airport, etc. for large-scale concrete ground construction.
How many people are needed for operation?
1 person for remote control operation, and a small number of auxiliary workers are required to handle edges and load materials.
Power source?
Optional diesel version (strong power, suitable for outdoor use) or electric version (low noise, suitable for indoor use).
What size of site is suitable?
Suitable for medium and large-sized sites of 500㎡ or more. The larger the area, the more obvious the efficiency advantage.
How to purchase?
Contact customer service → Select and quote → Sign contract → Make payment and deliver → Training and delivery.
What services are included?
Free technical consultation, operation training, one-year warranty and lifetime technical support.
What to do if it breaks?
Free repair within warranty period; provide remote guidance or quick on-site service to ensure timely problem resolution.
