The compact design for easy transportation enables efficient operation in narrow and inaccessible areas; The bidirectional high-flow hydraulic pipelines, equipped with proportional control, achieve precise and efficient operation;
Email: [email protected]

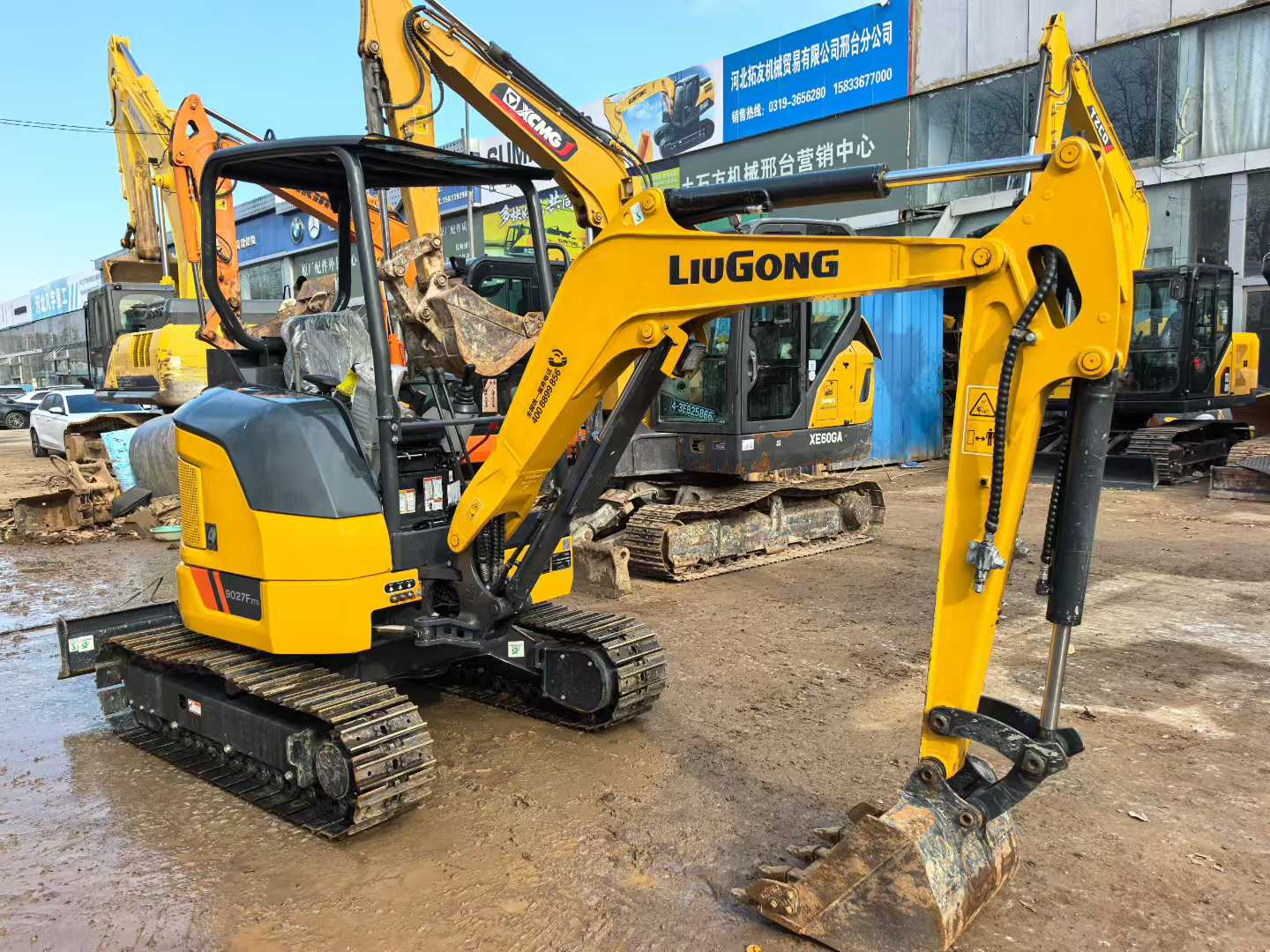

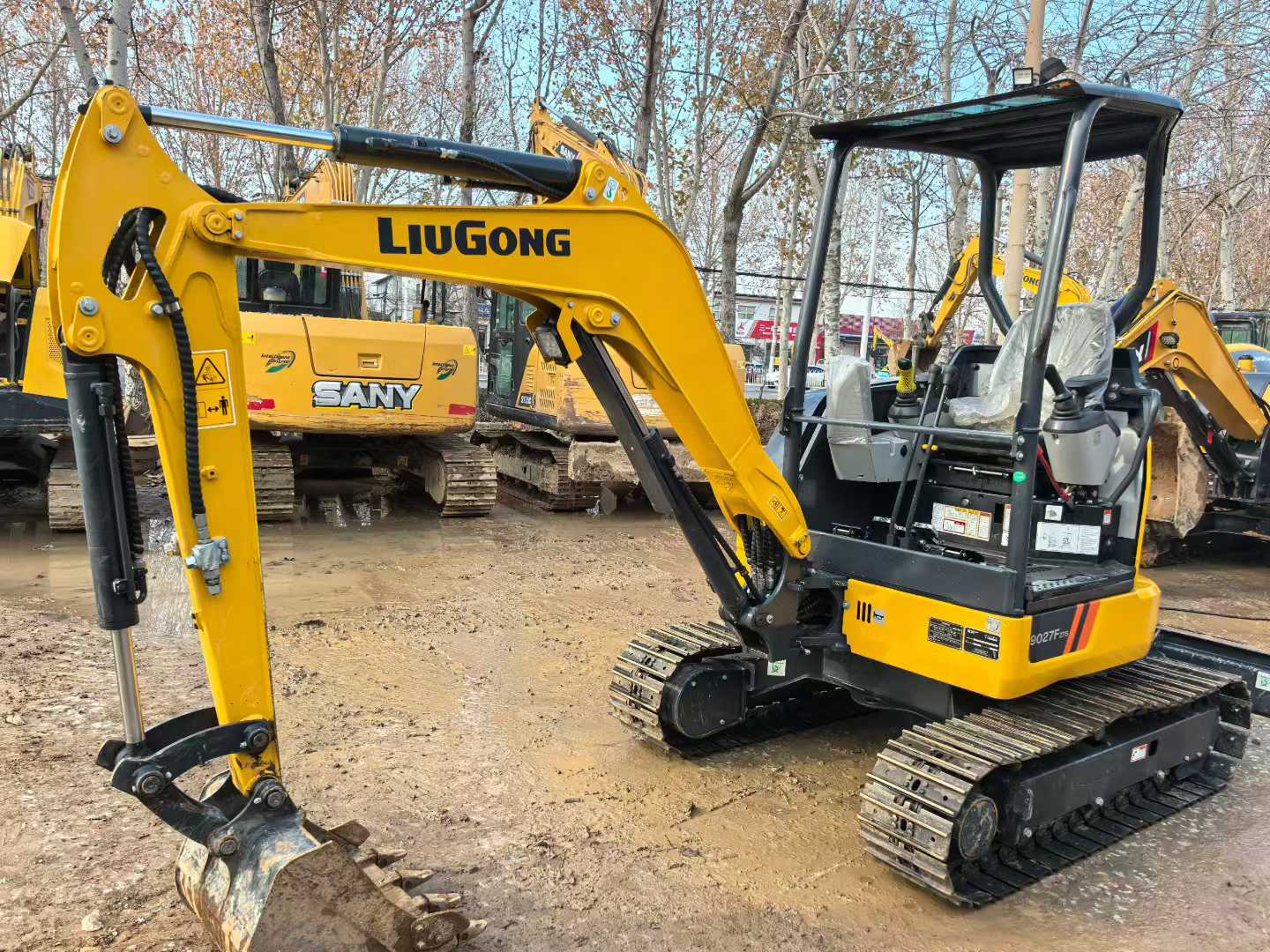

The Liugong 9027F is a highly mature and widely used small multi-functional excavator. With its features of flexibility, economy and practicality, it has occupied an important position in the specific market segment. For users who need to undertake light earthwork operations and have high requirements for equipment mobility and operating costs, it is a very worthy choice.
| ENGINE | |
| Description | |
| Yanmar Tier 4F/EU Stage V, 3-cylinder | |
| In-line, 4-stroke, indirect | |
| Injection. | |
| Exhaust gases | EPA Tier 4F/ EU Stage V |
| Production | Yanmar |
| Model | 3TNV80F-SNLY |
| Suction | Prirodno |
| Compressed air cooling | Aftercooler |
| Cooling fan drive | Direktno |
| Volume | 1.267 L(0.33 gal) |
| Number of revolutions | 2,500 rpm |
| Power output – net | 15.2 kW(20.4 hp/ 20.7 ps) |
| Max.torque | 67.3 N·m(49.6 lbf·ft) @1,800 rpm |
| Cylinder diameter x piston stroke | 80x84mm (3.1″x3.3″) |

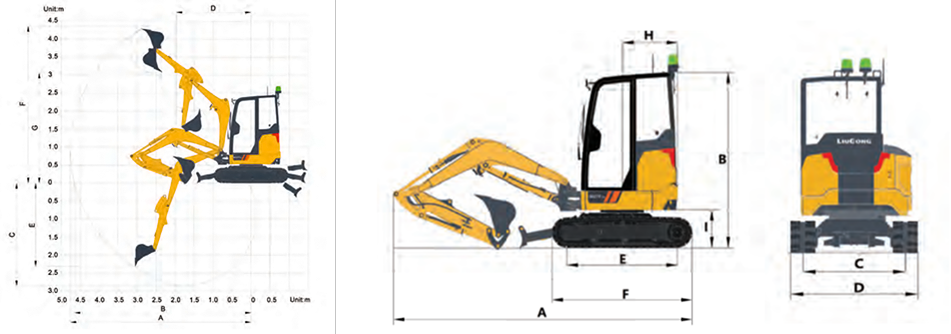

| WORKING RANGE | |
| Boom Length | 2,080 mm(6’10”) |
| Roller Option | 1,300 mm(4’3″) |
| A. Max. Digging Reach | 4,757 mm(15’7″) |
| B. Max. Digging Reach on Surface | 4,648 mm(15’2″) |
| C. Max. Digging Depth | 2,857 mm(9’4″) |
| D. Min. Vertical Digging Depth of Wall | 1,965 mm(6’5”) |
| E. Max. Vertical Digging Depth of Wall | 2,312 mm(7’7”) |
| F. Max. Cutting Height | 4,365 mm(14’3″) |
| G. Max. Dumping Height | 3,067 mm(10′) |
| Max. Digging Depth, 2.44m(8′) Level | 2,386 mm(7’10’) |
| Knife Lift | 350 mm(1’2″) |
| Knife Lower | 400 mm(1’4″) |
| Bucket Digging Force (ISO) | 20 kN(4,496 lbf) |
| Stick Digging Force (ISO) | 12 kN(2,698 lbf) |
| Bucket Capacity | 0.08 m3(0.1 yd3) |
| Bucket Tip Radius | 662 mm(2’2′) |
The compact design offers excellent maneuverability and rotational flexibility, making it particularly suitable for delicate operations such as interior decoration, garden construction, and ditch excavation.
Low fuel consumption, relatively low purchase cost and operation/maintenance cost, quick return on investment. It is a popular choice for small-scale engineering entrepreneurs and leasing companies.

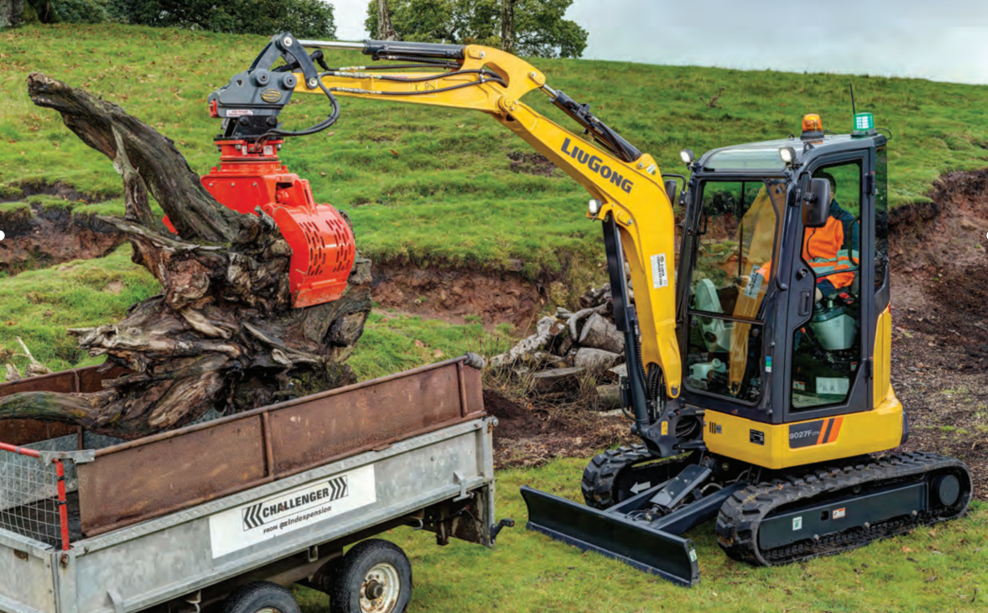

By replacing different attachments (such as buckets, hydraulic hammers, rotary drills, timber clamps, etc.), various functions such as excavation, crushing, leveling, and grasping can be achieved.
Usually, an ergonomic cab is adopted, making the control simple and intuitive, and friendly for novice drivers.

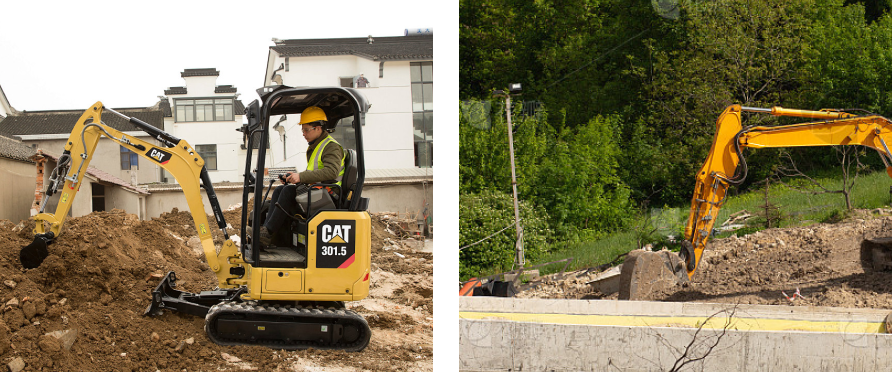

Excavate pipeline trenches beneath city roads and sidewalks to lay or repair water supply, gas, communication cables, and sewage pipelines.
Clean and repair inspection wells, septic tanks, and other municipal facilities. Dig tree pits and reshape the terrain in the park and green belts.

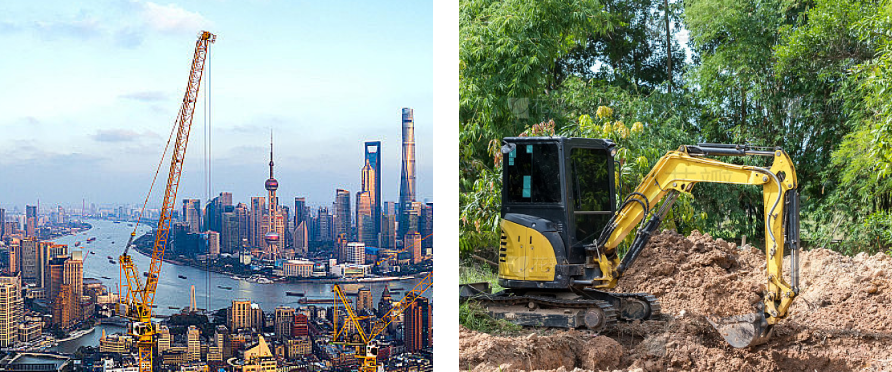

Excavate and dredge irrigation canals and drainage ditches. Build small reservoirs and water cisterns.
Carry out the excavation of foundations, site leveling and the cleaning work after the demolition of old houses for rural self-built houses. Digting fertilizer trenches or drainage trenches in orchards and farmlands.
Carrying out local ground crushing, basement excavation and wall demolition indoors. Conducting auxiliary excavation and cleaning in the corner areas of large building foundations. Handling and clearing construction waste in narrow spaces.
Excavating standard tree pits when transplanting trees. Participating in the slope construction and sediment removal of small ecological rivers and wetlands. Carry out auxiliary operations such as spreading the covering soil at the landfill site.
● Equipment Selection Guide
● Detailed technical comparison
● One-on-one service
● One-year warranty
● Local after-sales service network, with faster response speed
● Inventory of vulnerable parts
● Remote and on-site setup and operationinstructions
● Logistics timeliness
● Ensure timely delivery
● Transport from the port to your designated destination
A: We will ship the goods within 3 to 7 days after receiving the payment. The exact time may vary depending on the distance.
A: Please inspect them on the spot when receiving the goods. If there is any damage, take photos immediately and contact us for assistance in handling the issue.
A: The engine, hydraulic system, etc. are all equipped with Liugong’s original factory products or designated brands.
A: The sales consultant will provide professional configuration suggestions based on your specific working conditions.
A: The whole machine is usually covered by warranty for 12 months or 2000 hours (whichever comes first). The specific period is as stated in the warranty manual.
A: After calling the service hotline, the engineer will usually contact and arrange the repair within 2 to 24 hours.
A: Basic operation and maintenance guidance will be provided upon delivery of the equipment, and further consultation is available afterwards.
