It is widely applied in various working scenarios, such as earthwork projects, road construction, municipal engineering, quarries, etc.
Email: [email protected]

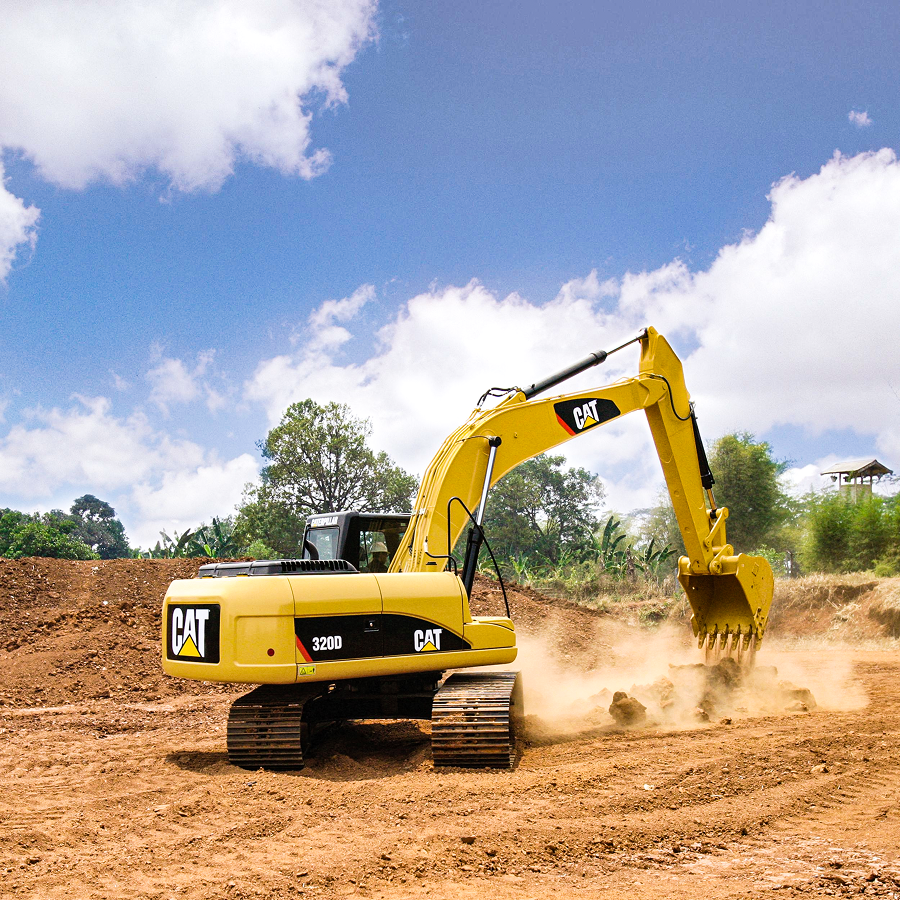

The Caterpillar 320D is a medium-sized hydraulic excavator of 21-22 ton class, an upgraded version of its predecessor model 320C. It is renowned for its outstanding reliability, powerful productivity, low operating costs and excellent fuel economy, and is widely used in various working conditions such as earthwork engineering, road construction, municipal engineering, quarries and so on.
| Boom Options | Reach 5.68(18’7″) | |
| Stick Options | R2.9B1 m(9’7″) Std/SA | |

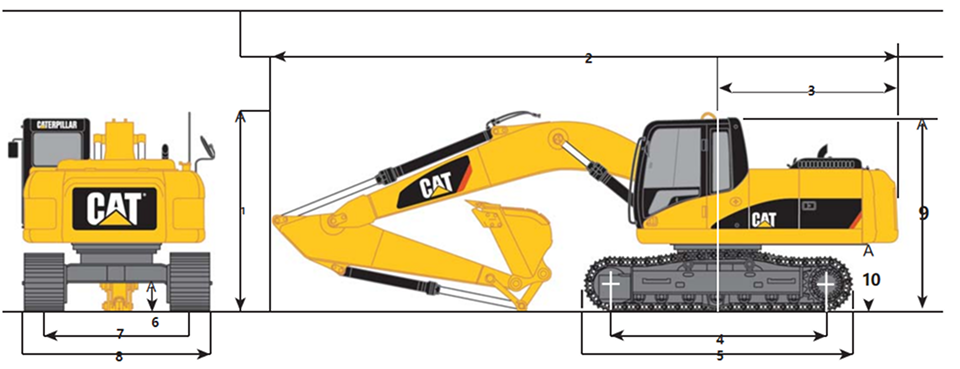

| 1 | Shipping Height | 3030 mm(9’11”) |
| 2 | Shipping Length | 9460 mm(31’0″) |
| 3 | Tail Swing Radius | 2750 mm(9’0″) |
| 4 | Length to Center of Rollers | 3265 mm(10’9″) |
| 5 | Track Length | 4075 mm(13’4″) |
| 6 | Ground Clearance | 450 mm(1’6″) |
| 7 | Track Gauge | 2200 mm(7’3″) |
| 8 | Transport Width | 800 mm Shoes 3000 mm (9’10”) |
| 9 | Cab Height | 2950 mm (9’8″) |
| Boom Options | Reach 5.68 m(18’7″) | |
| Stick Options | R2.9B1 m(9’7″) | |

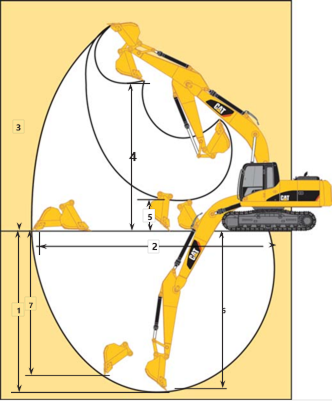

| 1 | Maximum Digging Depth | 6580 mm(21’7″) |
| 2 | Maximum Reach at Ground Level | 9710 mm(31’10”) |
| 3 | Maximum Cutting Height | 9360 mm(30’9″) |
| 4 | Maximum Loading Height | 6640 mm(21’9″) |
| 5 | Minimum Loading Height | 2310mm(7’7″) |
| 6 | Maximum Depth Cut for 2440 m(8′) Level Bottom | 6400 mm(21’0″) |
| 7 | Maximum Vertical Wall Digging Depth | 5800 mm(19’0″) |
| Bucket Digging Force(SAE) (ISO) | 137.5 kN(30,910 1b) | |
| 155.6 kN(34,980 1b) | ||
| Stick Digging Force (SAE) (ISO) | 105.6kN(23,740 1b) | |
| 109.9 kN(24,710 1b) | ||
| Engine | ||
| engine model | Cat® C6.4 ACERT™ | |
| Net Flywheel Power | 103 kW | 138 hp |
| Weights | ||
| Operating Weight- | 21450 kg | 47.290 lb |
| Std. Undercarriage | ||
| ● Heavy Duty Reach boom, R2.9B1(9 ft 6 in) Reinforced,Stick,0.9 m'(1.2 yd’) General Purpose Bucket,800 mm,(32 in) Shoes | ||
The core components (such as the engine and hydraulic main pump) are designed to be robust and durable, with a relatively low failure rate, making them the epitome of “sturdy and durable” in the construction machinery field.
In the second-hand market, Caterpillar equipment, especially the D series, has a much higher preservation rate than most of its competitors.
Although the initial purchase cost may be high, its long lifespan, low failure rate, low fuel consumption and ease of maintenance make the total cost over its entire lifecycle very competitive.
Caterpillar has the most comprehensive network of agents and a complete parts supply system worldwide, ensuring prompt service and maintenance for the equipment.
Conducting roadbed excavation, ditch digging, slope modification, material transportation and backfilling. Its powerful excavation force and stable control enable efficient transfer of earthwork.
Responsible for site leveling, foundation pit excavation, basement excavation, pipeline trench excavation and backfilling. Its diverse combinations of boom and bucket can meet different depth excavation requirements.
During these high-intensity continuous operations, its low failure rate ensures the completion of the project schedule, the relatively low fuel consumption significantly reduces operating costs, and the fast cycle time enhances overall efficiency.
Construction or maintenance of sewers, water supply pipes, gas pipes, and cable trenches. Precise control of excavation depth and width is required. The 320D pilot hydraulic control and pressure compensation system can achieve sub-millimeter level precision operations.
Utilizing various tools (such as hydraulic tampers), carry out terrain shaping, excavation of tree planting pits, and excavation of ponds, etc.
clearing the working face, separating the ore, repairing roads, and loading trucks. Its sturdy structure can withstand harsh working conditions.
loading and classifying loose materials such as sand, gravel, coal, and scrap steel. The rapid and powerful combined actions can shorten the loading time.
● Equipment Selection Guide
● Detailed technical comparison
● One-on-one service
● One-year warranty
● Local after-sales service network, with faster response speed
● Inventory of vulnerable parts
● Remote and on-site setup and operationinstructions
● Logistics timeliness
● Ensure timely delivery
● Transport from the port to your designated destination
