BDW-17X Multi-Purpose Micro Excavator

BDW-17X Multi-Purpose Micro Excavator

Product Introduction

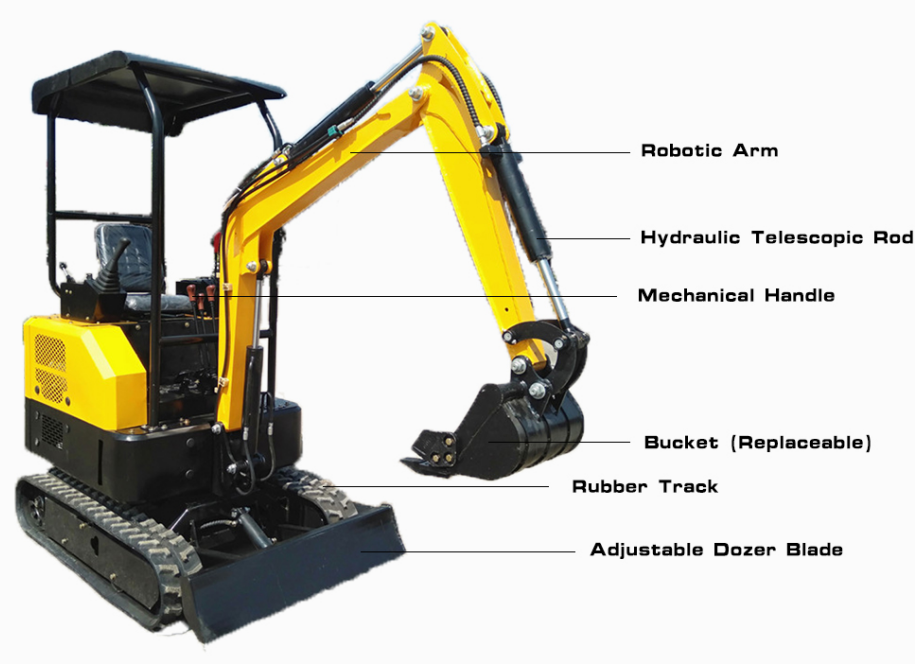

The BDW-17X is a high-performance, compact, and agile micro hydraulic excavator, specifically designed for work environments with space constraints. It combines powerful performance, exceptional operational capabilities, and high reliability, making it an ideal choice for light excavation tasks such as landscaping, municipal construction, farmland water conservancy, and interior demolition.

Product Parameters

Machine Model: BDW-17X	Track Width: 180 mm
Engine Model: Laidong 385B	Vertical Digging Depth: 1550 mm
Bucket Capacity: 0.04 m³	Track Height: 320 mm
Power: 33 HP	Dozing Blade Lifting Height: 325 mm
Working Device Type: Backhoe	Transport Length: 2600 mm
Swing Radius: 1250 mm	Weight: 1650 kg

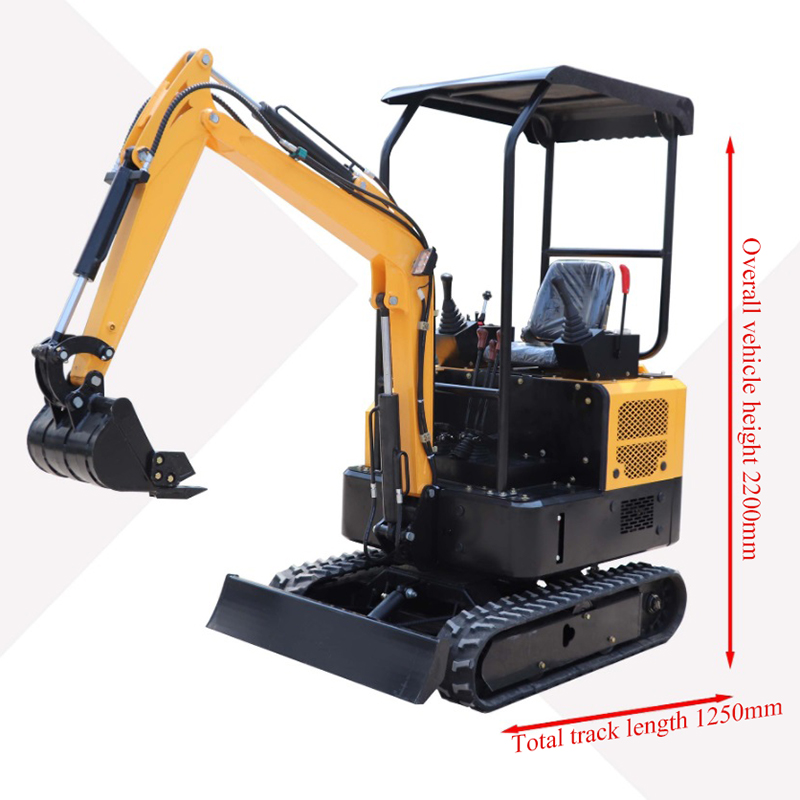

Total Track Length: 1250 mm	Overall Height: 2200 mm
Digging Height: 2600 mm	Digging Depth: 1800 mm
Platform Ground Clearance: 380 mm	Control Valve: Northern Heavy Industries
Unloading Height: 1900 mm	Travel Motor: Eaton (USA) / Sanyo
Undercarriage Width: 1100 mm	Swing Motor: Eaton (USA) / Sanyo
Ground Digging Radius: 2550 mm	Hydraulic Pump: Japan Shimadzu

Key Performance Highlights

1. ​Powerful and Efficient Core:​​ Equipped with a ​Laidong 385B engine​ that delivers ​33 HP​ of robust power, ensuring efficient and stable operation under various working conditions.
2. ​Compact Body, Agile Operation:​​ Its compact design (with a ​transport length of only 2600mm​ and an ​operating weight of 1650kg) allows it to easily pass through narrow passages and turn flexibly in confined spaces ( ​swing radius of 1250mm), minimizing impact on the surrounding environment.
3. ​Outstanding Operational Capability:​​ As a ​backhoe​ excavator, it boasts a maximum ​digging depth of 1800mm, a ​digging height of 2600mm, and a ​digging radius of 2550mm, offering comprehensive performance to handle a variety of tasks.
4. ​Strong Ground Clearance and Stability:​​ A ​1100mm​ undercarriage width and ​1250mm​ total track length provide excellent stability during operation. A ​380mm​ platform ground clearance ensures good passability.
5. ​High-Quality Key Components:​​ Critical hydraulic components utilize internationally renowned brands, such as ​Eaton​ (USA) for the travel and swing motors, and ​Japan Shimadzu​ for the hydraulic pump, ensuring precise machine movements, durability, and reliability. The control valve is supplied by ​Northern Heavy Industries, guaranteeing quality.

Multi-Functional Capabilities

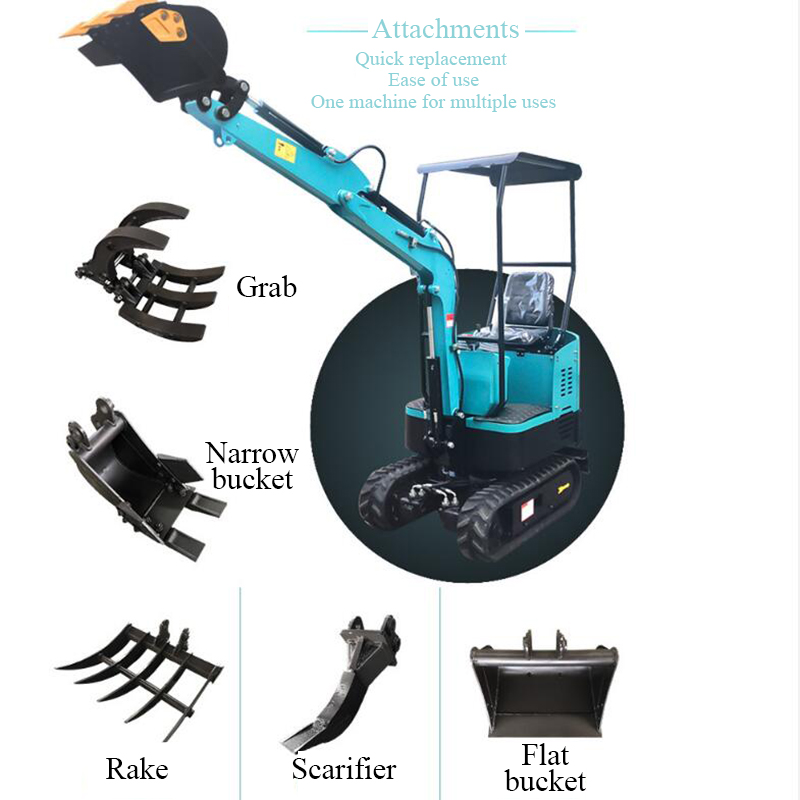

The BDW-17X micro excavator, equipped with a quick coupler system, is compatible with various attachments such as buckets, hydraulic breakers, augers, grapples, and tilt rotators. It enables diverse operations including excavation, demolition, drilling, material handling, and fine grading, making it ideal for complex scenarios like construction in confined urban spaces, landscaping, agricultural planting, and municipal pipeline installation. The machine’s versatility significantly enhances equipment utilization and return on investment by fulfilling multiple functions with a single unit.
