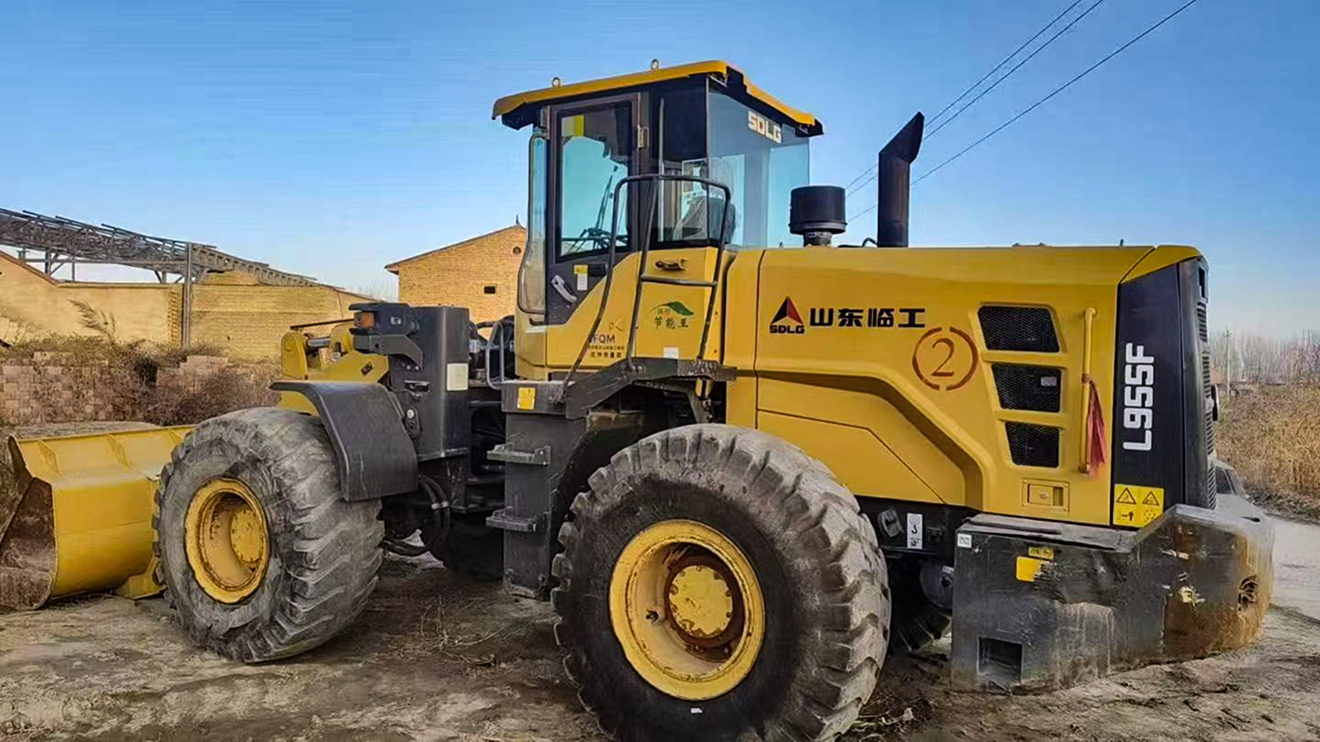

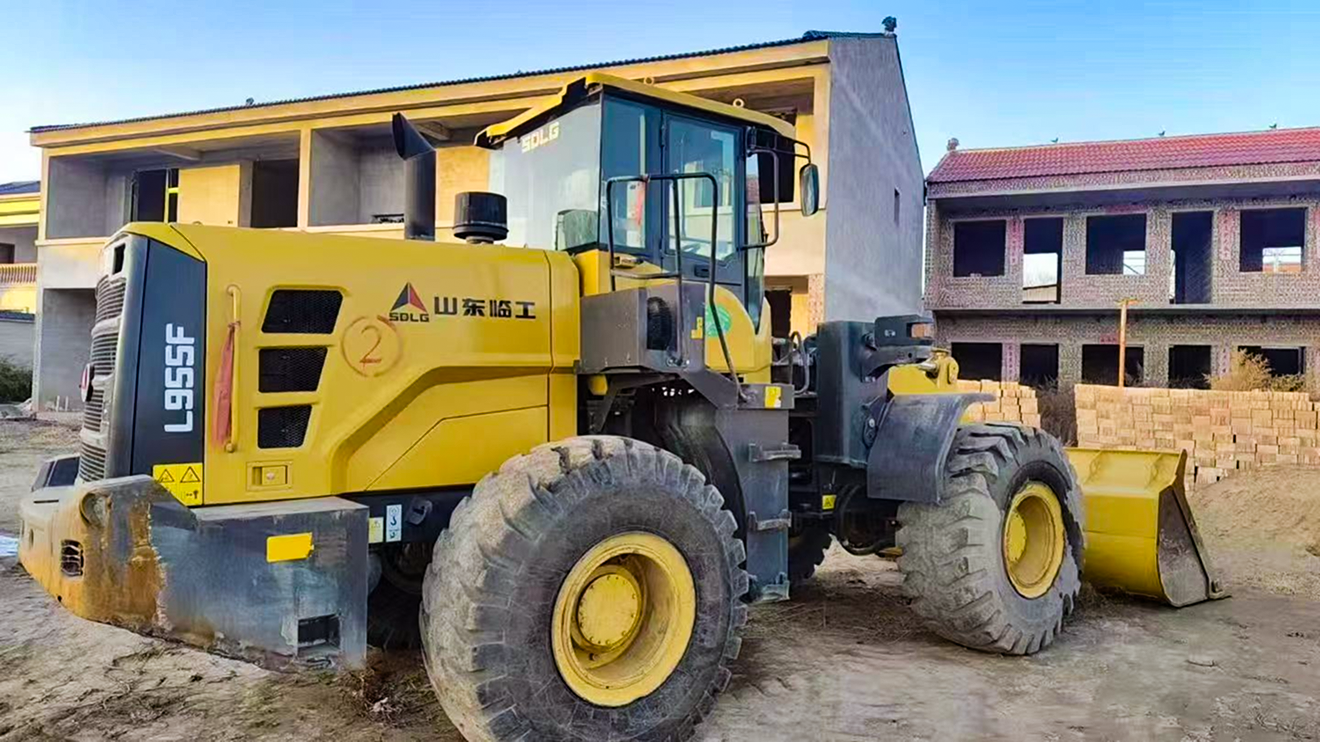

The vehicle is in good condition. This retired construction equipment, the L955F loader, is equipped with a three-stage low-speed engine, which is reliable and efficient. The wheelbase has been lengthened, significantly enhancing the digging force and overturning load capacity, and making the movement more stable.
Email: [email protected]
The L955F is a heavy-duty, loading-type, 3200mm wheelbase energy-saving loader. It features a new design, is equipped with a three-stage low-speed engine, and is reliable and efficient. The wheelbase has been lengthened, significantly enhancing the digging force and overturning load capacity, while also making the movement more stable.
Advanced energy-saving engine: Equipped with the third-generation low-speed energy-saving diesel engine that complies with the latest national emission standards. This engine features the outstanding characteristic of high torque at low speed, ensuring powerful power output while optimizing the main operating conditions to be in the low fuel consumption zone, achieving a perfect balance between power and energy efficiency.
Intelligent electronic control and maintenance convenience: Equipped with an electronic control system and dedicated fault detection interface, it supports rapid fault diagnosis and maintenance, significantly enhancing the attendance rate and maintenance convenience
Efficient transmission combination: Merging the independently developed high-efficiency transmission system with the reinforced drive axle, it boasts high transmission efficiency and unparalleled reliability, capable of withstanding continuous heavy-load impacts.
Super strong load-bearing frame: Both the front and rear frames adopt reinforced box-type structure design, with extremely strong torsional and bending resistance, and a long service life. The 3200mm axle distance provides excellent driving and operation stability.
Professional articulation system: The articulation points adopt a composite design of tapered roller bearings and spherical bearings, significantly enhancing the adaptability and durability in rough and uneven road conditions.
Safety braking: It adopts an electronically controlled pneumatic parking brake system, which responds quickly and provides safe and reliable braking.
Efficient hydraulic and operation system: Powerful, precise, durable
Strong lifting capacity: The hydraulic system of the working device is equipped with thickened lifting cylinders, providing greater digging force and lifting force, ensuring a quick full bucket.
Intelligent energy-saving hydraulic system: It adopts a load-sensing full hydraulic steering system and is equipped with a dual-pump steering pump. It can achieve proportional variable control according to the steering requirements, featuring energy saving, high efficiency, and smooth and comfortable operation. The full hydraulic pipeline adopts a double-sealing structure to prevent leakage and has high reliability.
Optimize bucket design: The bucket has been optimized through mechanics, featuring a high loading coefficient. The main cutting blade is made of trapezoidal wear-resistant steel structure, and the bottom wear-resistant plate adopts a thickened concave design, effectively reducing insertion resistance and significantly increasing the wear resistance lifespan.
| Equipment model | L955F | Model abbreviation | 955 |
| Rated load capacity (kg) | 5000 | Overall machine operating weight (kg) | 18250 |
| Bucket capacity (m³) | 2.8（2.7～4.5） | Maximum digging force (lifting force) (kN) | 128 |
| Maximum traction force (kN) | 155 | Travel mode | Tire type |
| Operating conditions and applications | General-purpose | Tonnage range | 5-8 t |
| Power type | Fuel | ||
| Engine (fuel) | |||

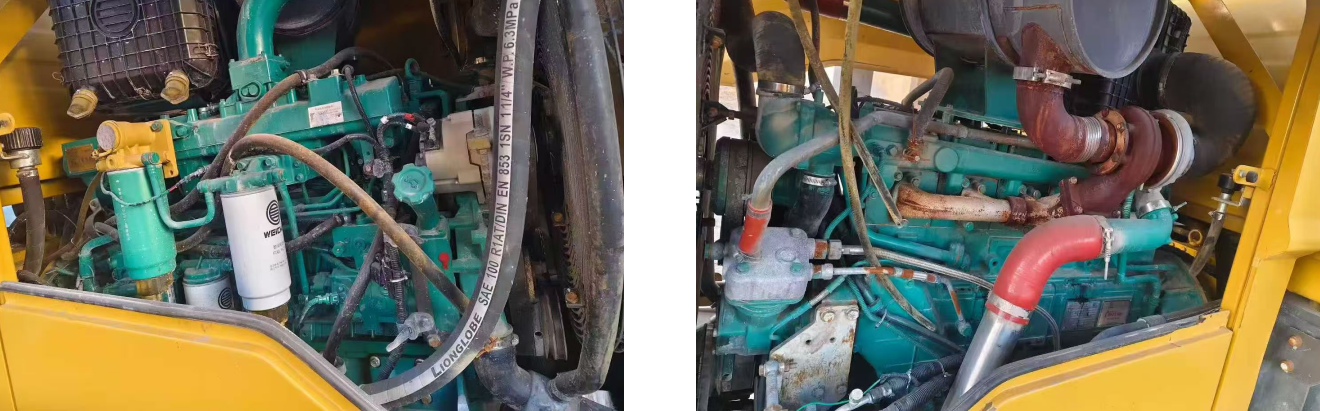

| Engine brand | Weichai | Model number | WP10G220E341 |
| Type | In-line, water-cooled, electronically controlled high-pressure common rail, four valves | Rated power / rotational speed (kW/r/min) | 162/2200 |
| Maximum torque/rpm (N·m/min) | 980/1400 – 1600 | Total displacement (L) | 9.726 |
| Fuel consumption rate (g/kW·h) | ≤215 | ||
Our hydraulic oil tanks are made of specially treated steel pipes, which can prevent corrosion and extend the system’s lifespan. In terms of oil tank cleaning, hoses and valve blocks are thoroughly cleaned to eliminate contaminants, ensuring clean hydraulic oil circulation and reducing wear.
The diesel cleaning ports are heat-treated and blown with compressed air. This can remove all impurities, ensuring cleaner oil quality. By maintaining the purity of the hydraulic oil, we can minimize system failures and extend the lifespan.
Before shipment, we conduct high, medium, and low pressure tests to ensure the machine operates stably and without leaks. We will also verify its performance under actual working conditions.
LICH products feature quick, tool-free installation and disassembly. This significantly saves your time and enhances productivity at the construction site.
A: This is one of the core advantages of 955F. Due to its large market share, the supply network for this machine’s accessories (including original factory parts and brand aftermarket parts) is very mature, with transparent and low prices. Whether it’s the engine, hydraulic components or structural parts, they are all very easy to find in the market. The maintenance techniques are also universal, which means that your maintenance and repair costs are low, the waiting time is short, and it can maximize the operational rate.
A: With an investment much lower than that of a new device, you can obtain a main equipment that can immediately generate profits. For users who value the return on investment, it has a short “break-even” period, stable residual value, and is an extremely cost-effective choice.
A: The 955F is a classic 5-ton loader, highly suitable for operations such as loading and unloading at sand and gravel yards, transporting materials at construction sites, road construction in rural areas, agricultural water conservancy, and bulk cargo operations at ports and docks. Its sturdy structure and strong low-speed torque make it particularly adept at handling heavy loads and challenging road conditions.
A: Firstly, when dealing with a reputable seller, you usually agree on a short-term warranty period or a commitment for major components. Secondly, as mentioned before, the 955F has extremely high maintenance convenience. You can contact any local service point or large construction machinery repair factory nearby for technical support. It is recommended to perform a comprehensive maintenance and inspection immediately after purchase, replace the oil and filters, and get the equipment working at its best to prevent potential problems.
A: The main advantages lie in “balance” and “ease of use”. It may not be the machine with the strongest performance in any single parameter, but its comprehensive reliability, astonishingly high availability of accessories, low maintenance costs, and extremely high market acceptance (easy resale) form an irreplaceable combination of advantages. For users who seek stable operation and control of the overall holding cost, it is the safest and most practical choice.
