Deliver Superflat Floors with Ride-on Power Trowels Product Introduction

Deliver Superflat Floors with Ride-on Power Trowels Product Introduction

Product Introduction

The primary functions of the ride-on power trowel are flattening the concrete surface, vibrating and consolidating the mix to bring up the cream, and screeeding for a level finish. Firstly, after workers initially place the concrete within the built forms, the machine is positioned on the pathway via a crane or its own travel mechanism. The machine then moves along guide rails, while its spiral auger, mounted on a transverse shaft within the frame, moves back and forth to smooth the surface.

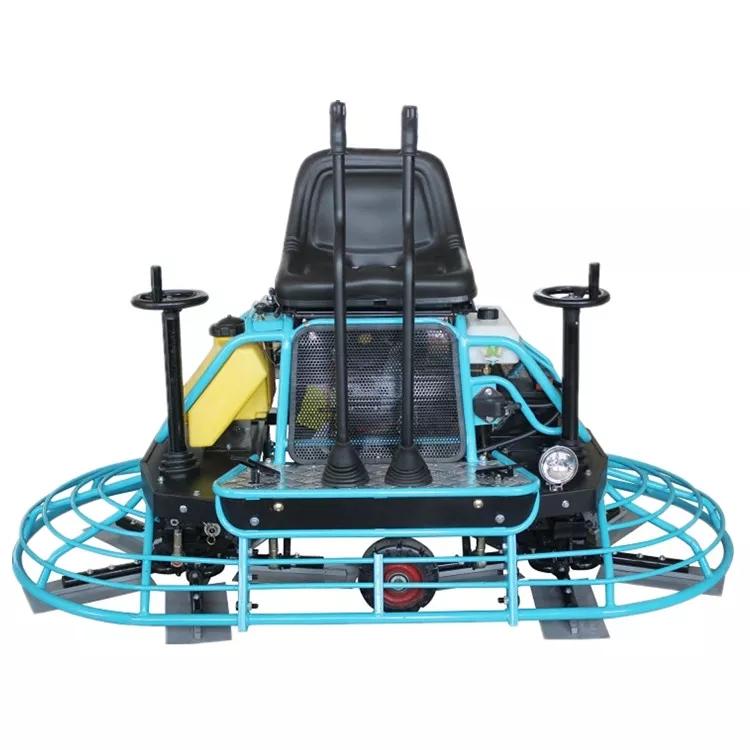

Ride-on power trowels are designed for large-scale concrete slabs and professional superflat floor construction. Compared to walk-behind trowels, they significantly improve both work efficiency and finish quality. The reinforced gearbox and clutch greatly enhance the machine’s reliability, making operation simpler and faster.

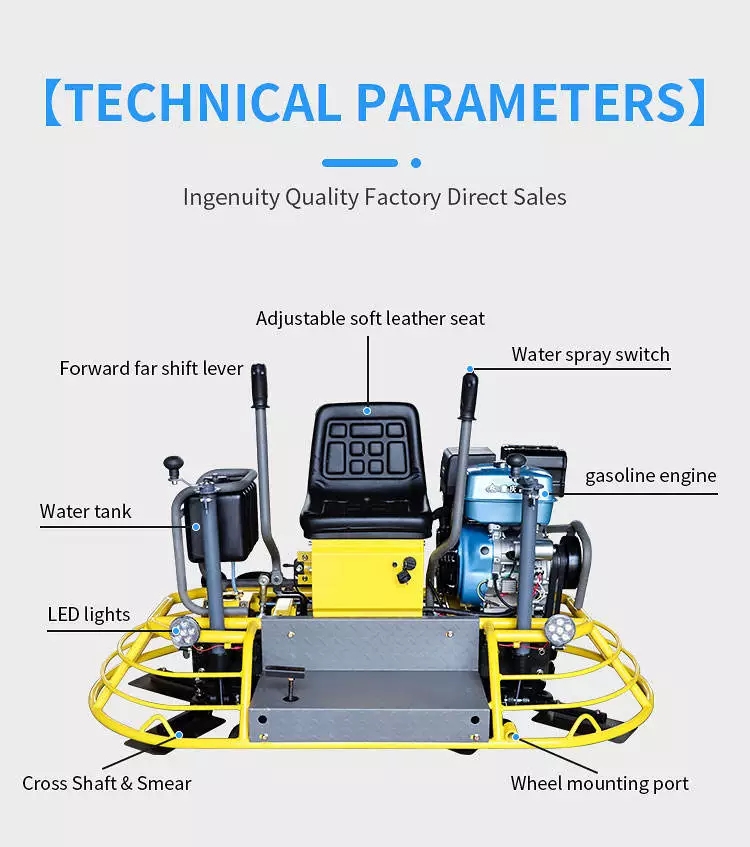

Product Parameter

Model​	100 Ride-on	​Operation Mode​	Ride-on
​Blade Size​	150*350MM	​Engine Oil Capacity​	1.5L
​Blade Hole Spacing​	80-120MM	​Fuel Tank Capacity​	20L
​Pan Diameter​	1000MM	​Engine Power​	24HP
​Wheel Type​	Liftable Wheel	​Engine Type​	4-Stroke Gasoline Engine
​High Speed​	1-180 R/MIN	​Machine Weight​	350KG
​Low Speed​	1-130 R/MIN	​Number of Blades​	8
​Starting Method​	Electric Start	​Overall Dimension (L*W*H)​​	2010*1200*990MM

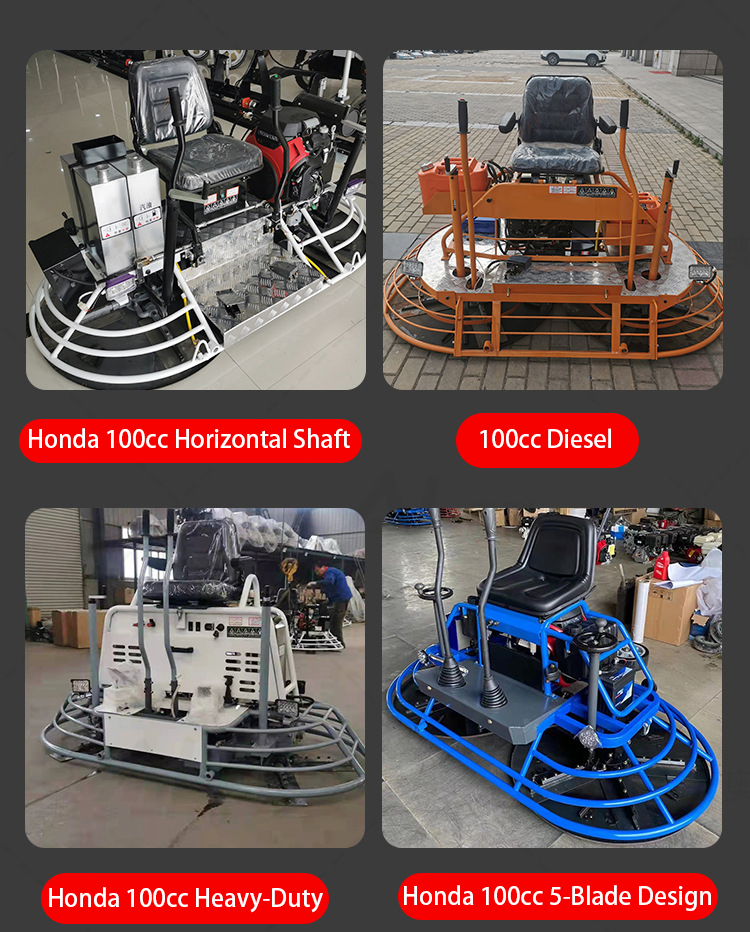

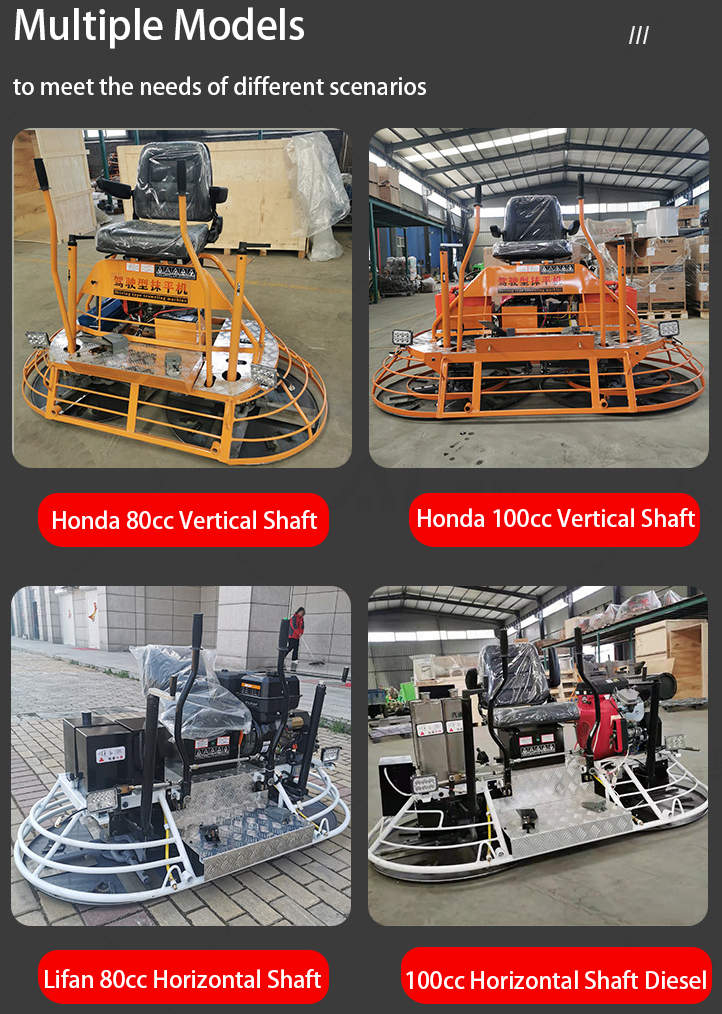

Multiple Models

Product Advantages

1. High-Rigidity Structure & Powerful Output:​​ Features a high-rigidity mechanical structure and high horsepower output, enabling high-speed, stable material feeding, which boosts productivity and extends the equipment’s service life.​Precision
2. Correction Rollers:​​ The correction rollers are made of solid bearing steel, undergo high-frequency heat treatment, grinding, and hard chrome plating. This ensures a smooth, flawless finish after leveling without damaging the material surface.
3. ​Robust & User-Friendly Design:​​ Boasts a rational design that is more ergonomic, coupled with low failure rates and a long operational lifespan.
4. ​Integrated Water Tank & Enhanced Mobility:​​ Comes with a large built-in water tank, saving time on manual watering. Equipped with travel wheels for easy repositioning on site. Includes powerful lighting for strong illumination, allowing uninterrupted progress during night work.​
5. Comfortable Operator Seat:​​ The comfortable seat significantly enhances operator comfort during projects, reducing fatigue during long working hours and improving overall efficiency.
6. ​Reinforced & Durable Frame:​​ The machine frame is constructed with thickened materials for increased stability and durability. Treated with specialized anti-corrosion and anti-rust technology, it ensures long-term use even in harsh environments.
