Product Introduction

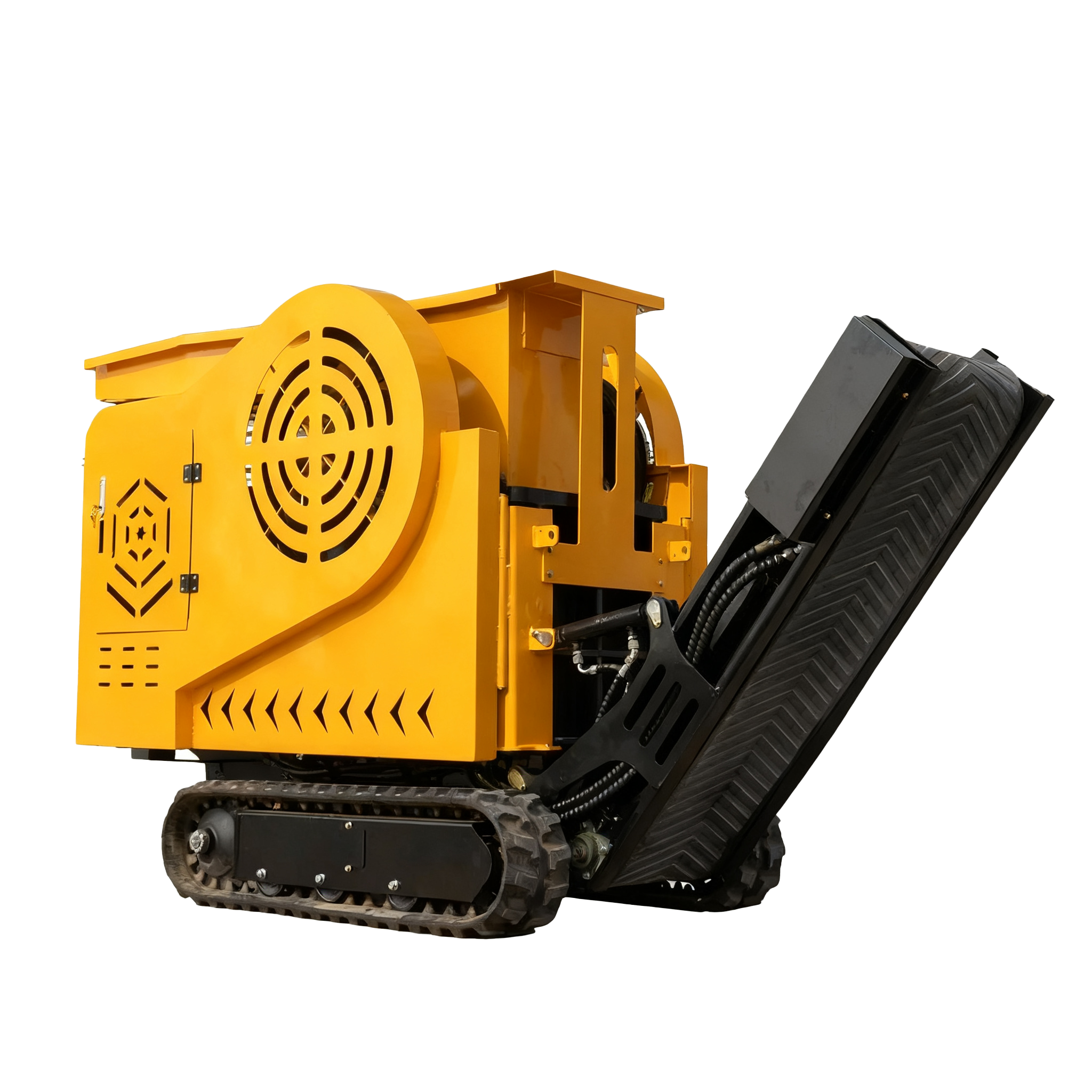

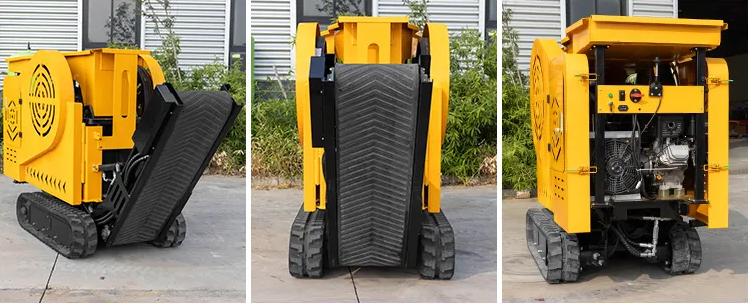

The LC430 Mobile Jaw Crusher is a high-performance mobile crushing equipment that integrates crushing, conveying, and feeding functions. Its core design features a jaw crusher, optimized for the primary crushing of various ores and construction waste materials. It can crush materials with a compressive strength of no more than 240MPa to a medium particle size in a single pass, making it an ideal choice for modern stone production and resource recycling.

Product Parameters

Category	Parameter	Value
​ Equipment Parameters​	​Working Size (in)​​	126 x 40 x 64
	Inner Width of Baffle (in)	15
	​Shipping Dimensions (in)​​	82.68 x 40 x 69
	Total Outer Width of Shroud (in)	37.8
	Track Model (in)	7 x 3 x 1.61
	Roller Diameter (in)	5
	Number of Rollers (group)	6
	Feed Port Size (in)	8.66 x 13.78
	Maximum Feed Size (in)	7.87
	Hopper Volume (m³)	0.25
	Discharge Height (in)	27.56 – 45
	Feed Conveyor (in)	59 x 19.69
	Product Size Range (in)	Diameter 0.59 – 2
	Travel Speed (mi/h)	0 – 1.86
	Track Specifications	Rubber Track
	​Capacity (T/h)​​	45693
	Conveyor Belt Width (in)	15.75
Operation Form & Main Accessories​	​Equipment Operation Mode​	Manual Hydraulic Valve
	​Travel Mode​	Hydraulically Powered Crawler
	Travel Motor Model	6K-395
	Continuous Torque (N.m)	850
	Hydraulic Pump Specifications	PGP5108
	Conveying Mechanism Motor Model	BMER-300
	Conveyor Lifting Method	Manually Operated Hydraulic Lift
	Jaw Crusher Lubrication Method	Lubricating Grease
	Track Tensioning Adjustment Method	Mechanical
Power System​	​Standard Gasoline Engine​	Runtong R500-V2-18HP
	Output Power Max	13 kW / 3600 r/min
	Output Torque Max	28 N.m / 2500 r/min
	Fuel Tank Volume (L)	6.5
Oil Type & Dosage​	Fuel Tank Volume	Gasoline 6.5 L
	Engine Oil Volume (L)	1.0 L
	Hydraulic Tank Volume (L)	35 L (32# / 46# Hydraulic Oil)

Product Advantages

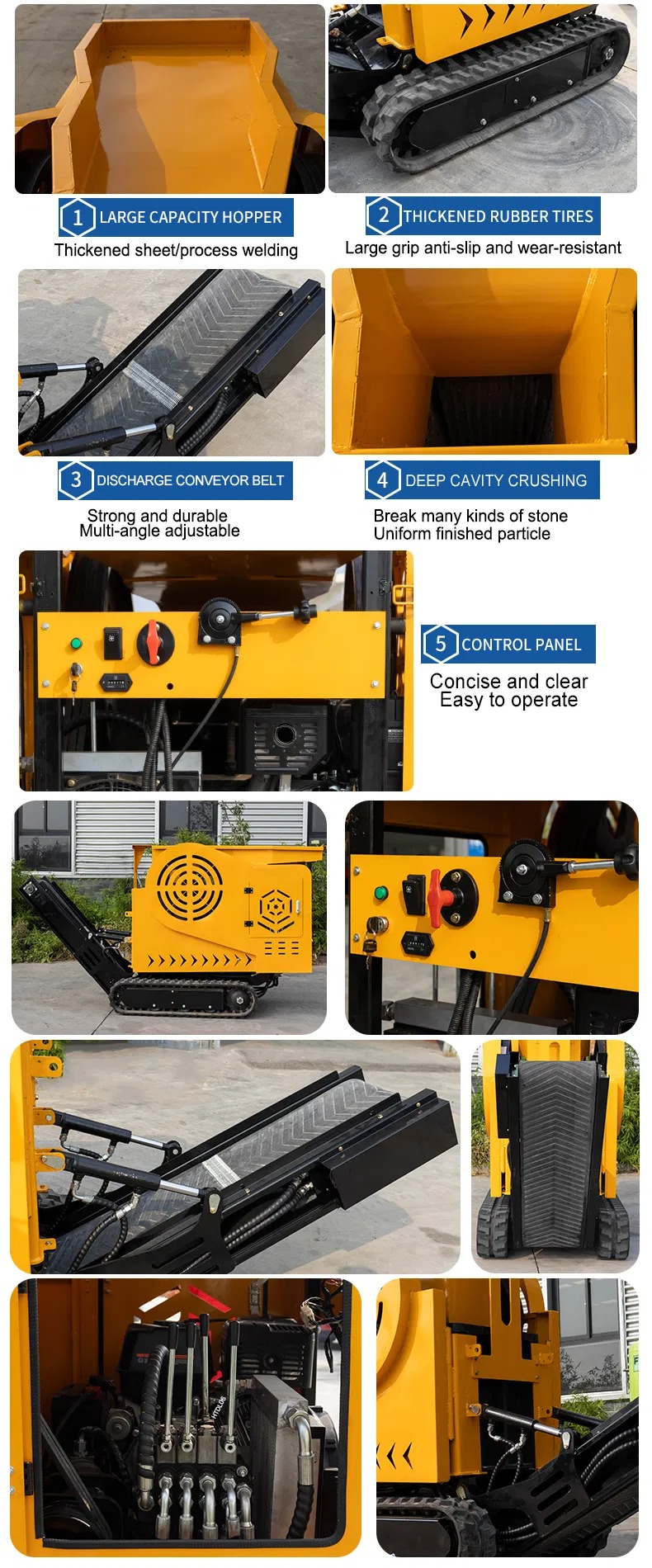

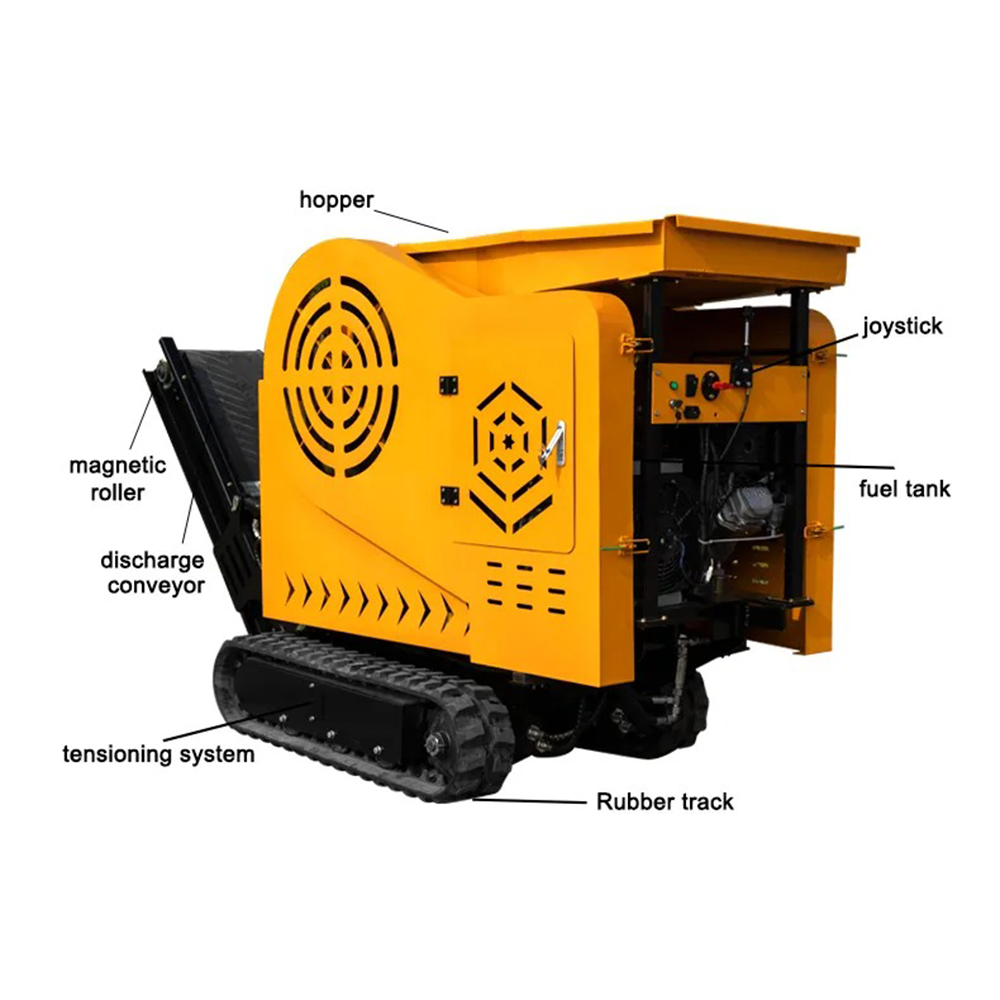

1. Integrated Design
   • The equipment highly integrates crushing, conveying, and feeding systems, offering strong adaptability. Crushed materials can be directly applied in various fields such as sand and gravel aggregates and road construction materials, enabling seamless operation from raw materials to finished products.
2. Exceptional Mobility and Flexibility
   • With strong mobility, it can operate directly on job sites such as sand and gravel yards, mines, and construction sites. It can be flexibly configured with related equipment according to users’ specific needs, meeting diverse production requirements.
3. Efficient and Energy-Saving Crushing Performance
   • Through an optimized jaw crusher structure and diversified configuration options (supporting single-machine operation or multi-machine joint operation), it achieves outstanding crushing efficiency and precise control over particle size, ensuring ideal crushing results.
4. Eco-Friendly and Low-Carbon Operation
   • The equipment has low requirements for job sites and effectively controls dust and noise during operation, achieving low-pollution, environmentally friendly green production that aligns with modern industry’s stringent low-carbon environmental standards.

Application Scenarios

1. Materials Processed: Blue stone, yellow stone, iron ore, limestone, construction waste, etc.
2. Industry Applications: Sand and gravel aggregate production, mining, coal mining, concrete batching plants, power plant desulfurization, etc.
