High Precision Full Series Silent Hydraulic Breaker

High Precision Full Series Silent Hydraulic Breaker

Product Introduction

Silent breakers are modern hydraulic equipment that combines efficient crushing performance with low-noise design, widely used in various demolition and crushing operations. Based on work requirements and scale, we offer three specifications: Small (40-140), Medium (150-175), and Large (185-240), meeting the construction needs of different scenarios.

Product Parameters

		Miniature Silent Breaking Hammer
Parameter	Unit	​WW-40​	​WW-45​	​WW-53​	​WW-60​
​Weight​	kg	82	129	188	227
​Overall Length​	mm	1185	1270	1430	1550
​Hyd. Working Pressure​	bar	90~120	90~120	90~130	90~130
​Hyd. Oil Flow​	L/min	15~30	20~40	20~50	20~50
​Setting Pressure​	bar	130	140	150	150
​Impact Rate​	b.p.m	600~1100	600~1100	600~1100	600~1100
​Striking Energy​	J	204	280	406	722
​Hose Diameter​	inch	½	½	½	½
​Chisel Rod Diam.​​	mm	40	45	53	60
​Suitable Excavator​	ton	0.5~1.2	0.8~1.5	1.5~3.5	4.5~6

		Small Silent Breaking Hammer
Parameter	Unit	​WW-68​	​WW-75​	​WW-85​	​WW-100​	​WW-125​	​WW-135​	​WW-140​	​WW-140F​
​Weight​	kg	351	470	970	1005	1337	1730	1922	2077
​Overall Length​	mm	1600	1790	2120	2284	2630	2764	2824	2824
​Hyd. Working Pressure​	bar	90~130	120~150	130~160	150~180	160~180	160~180	160~220	160~220
​Hyd. Oil Flow​	L/min	40~60	50~90	60~100	80~110	90~120	100~150	120~180	120~180
​Setting Pressure​	bar	160	180	190	200	210	210	210	210
​Impact Rate​	b.p.m	500~990	450~980	360~690	350~700	350~580	350~500	350~450	350~750
​Striking Energy​	J	1016	1835	2055	3102	6190	6190	6485	6977
​Hose Diameter​	inch	½	½	¾	¾	1	1	1	1
​Chisel Rod Diam.​​	mm	68	75	85	100	125	135	140	140
​Suitable Excavator​	ton	4.5~6	6~8.5	7~11	10~15	14~18	18~22	20~24	20~27

		Medium-Sized Silent Breaking Hammer
Parameter	Unit	​WW-150​	​WW-155​	​WW-165​	​WW-175​	​WW-175L​
​Weight​	kg	2448	2739	2939	3110	4350
​Overall Length​	mm	3019	3133	3177	3370	3877
​Hyd. Working Pressure​	bar	170~190	180~230	180~230	200~240	210~240
​Hyd. Oil Flow​	L/min	130~190	180~240	180~240	190~260	200~250
​Setting Pressure​	bar	230	250	250	260	290
​Impact Rate​	b.p.m	280~400	200~300	200~400	150~300	120~200
​Striking Energy​	J	9380	10930	11977	13200	16507
​Hose Diameter​	inch	1¼	1¼	1¼	1¼	1¼
​Chisel Rod Diam.​​	mm	150	155	155	165	175
​Suitable Excavator​	ton	24~27	24~33	27~33	33~36	36~42

		Large Silent Breaking Hammer
Parameter	Unit	WW-185	WW-190	WW-195	WW-200	WW-205	WW-210	WW-220
​Weight​	kg	4307	4986	5538	6400	6800	7100	7150
​Overall Length​	mm	4027	4537	4627	4837	4877	4917	5077
​Hyd. Working Pressure​	bar	220~260	240~280	260~300	260~300	260~300	260~300	260~300
​Hyd. Oil Flow​	L/min	220~280	240~280	250~320	260~340	280~360	280~360	280~360
​Setting Pressure​	bar	300	300	320	320	330	330	330
​Impact Rate​	b.p.m	120~180	110~160	100~140	100~140	100~140	100~140	100~140
​Striking Energy​	J	22380	24280	25490	29700	32260	35670	37280
​Hose Diameter​	inch	1¼	1¼	1¼	1¼	1¼	1½	1½
​Chisel Rod Diam.​​	mm	185	190	195	200	205	210	220
​Suitable Excavator​	ton	37~50	40~50	45~55	48~60	52~60	55~65	60~65

		Super-Large Silent Breaking Hammer
Parameter	Unit	WW-220L	WW-230	WW-240
​Weight​	kg	7386	/	/
​Overall Length​	mm	5177	5227	5457
​Hyd. Working Pressure​	bar	260~300	260~300	260~300
​Hyd. Oil Flow​	L/min	300~430	330~430	330~430
​Setting Pressure​	bar	340	340	340
​Impact Rate​	b.p.m	100~140	90~130	90~130
​Striking Energy​	J	47000	49800	59800
​Hose Diameter​	inch	1½	1½	1½
​Chisel Rod Diam.​​	mm	220	220	220
​Suitable Excavator​	ton	65~100	70~100	70~120

Product Features

1.  Small Silent Breaker (40-140)
   • High striking frequency, high impact energy, low energy consumption
   • Efficient crushing capability and flexibility
   • Suitable for operation in space-restricted environments

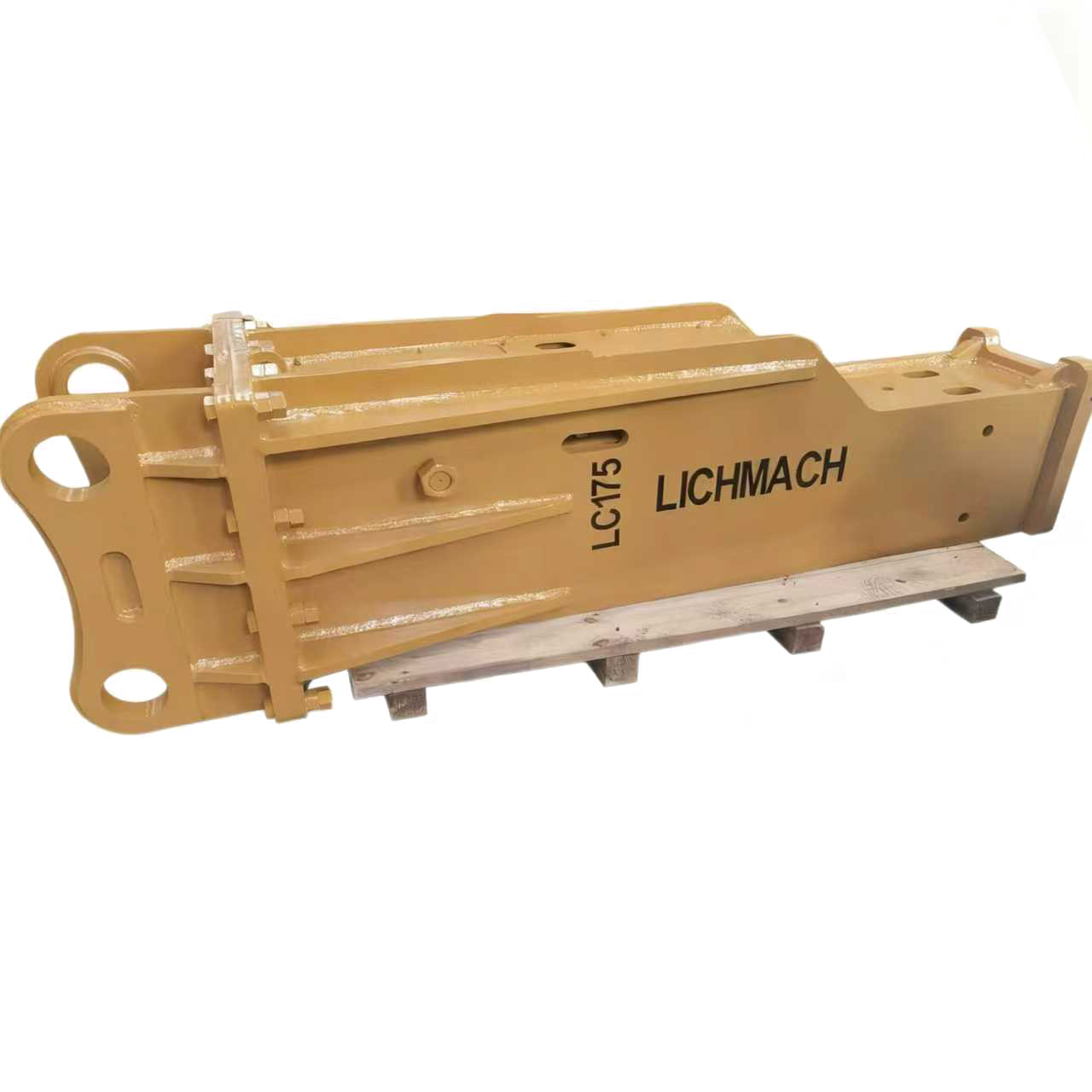

2.  Medium Silent Breaker (150-175)
   • Excellent noise control, minimal impact on the surrounding environment
   • Larger lift angle, high operational flexibility
   • High crushing efficiency and productivity
3. Large Silent Breaker (185-240)
   • Powerful performance and extremely high crushing efficiency
   • Precise control and efficient energy conversion
   • Low environmental impact during construction
   • Capable of precision crushing

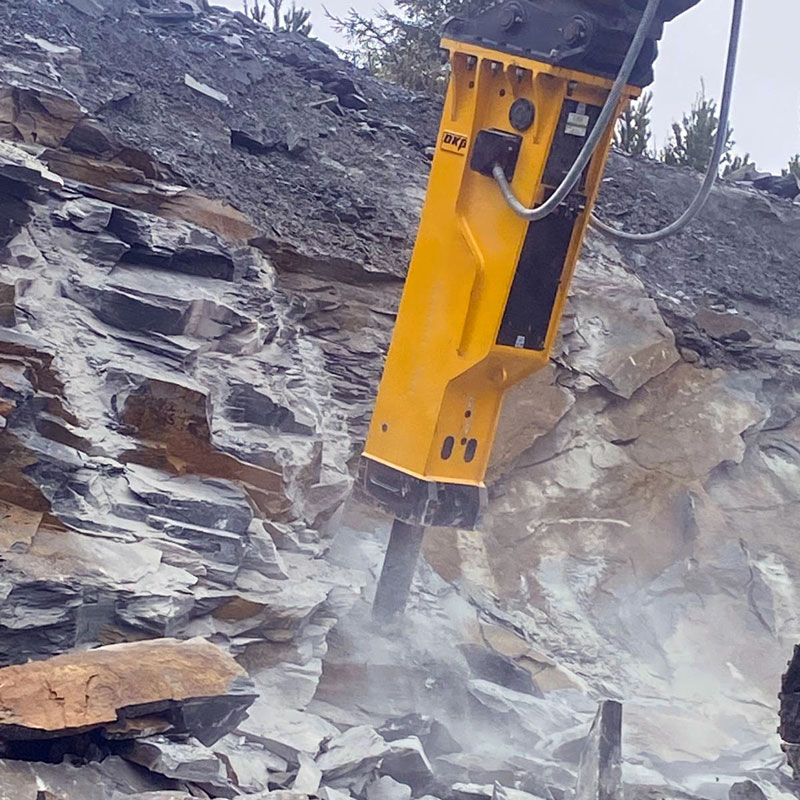

Primary Applications

•  Small (40-140)
  • Ideal for precise urban operations such as building demolition, concrete breaking, road repair, and secondary crushing in mines—scenarios with space constraints and low-noise requirements.
• Medium (150-175)
  • Serves as a versatile mainstay, widely used in urban construction, tunnel excavation, mining, and the metallurgical industry (e.g., ladle and slag cleaning).
• Large (185-240)
  • Designed for heavy-duty engineering projects, suitable for non-blast mining, urban rock excavation, bridge demolition, and breaking large concrete piles—applications demanding high power.

The selection of silent breakers follows a “tailor-made” principle. The small model (40-140) emphasizes flexibility and low disturbance, suited for refined urban operations with high environmental standards. The medium model (150-175) is the versatile core, balancing power, flexibility, and quiet operation, making it the most widely applicable. The large model (185-240) is specifically designed for heavy-duty, high-intensity projects, delivering massive impact energy. Together, the full product series provides an efficient and eco-friendly crushing solution for modern engineering construction.

Technical Advantages

Our silent breaker series incorporates advanced hydraulic technology and noise suppression design. While ensuring powerful crushing force, they significantly reduce noise pollution, making them particularly suitable for urban construction and environmentally sensitive areas. The products feature high energy efficiency, stable performance, and long service life, representing the ideal choice for modern construction.
