Hydraulic plate compactor for excavators

Hydraulic plate compactor for excavators

Product Introduction

The hydraulic plate compactor is an efficient and versatile excavator attachment designed for compacting various types of soil and gravel. Driven by the excavator’s hydraulic system, it combines the digging function of the excavator with professional compaction capabilities. It is particularly suitable for narrow, sloped, or high-risk areas where traditional large compaction equipment cannot operate, making it an ideal solution for modern construction projects that require enhanced efficiency and quality assurance.

Product Parameters

Static version
		HC 150	HC350	HC450	HC850	HC1050
Carrier weight class	t	1-3	3-8	4-9	9-20	20-40
Service weight	kg	160	330	450	890	1,130
Product weight	kg	140	296	408	832	1,040
Height	mm	486	623	622	764	786
Width	mm	295	475	610	28	864
Length	mm	721	846	929	50.1	1,364
Vibrating force	t	1.4	2.3	3.6	7.3	10.5
Revolutions per minute	n/min	2,100	2,100	2,200	2,200	2,200
Vibrating frequency	Hz		35	37	37	37
Plate coverage	㎡	0.17	0.31	0.4	0.68	0.9

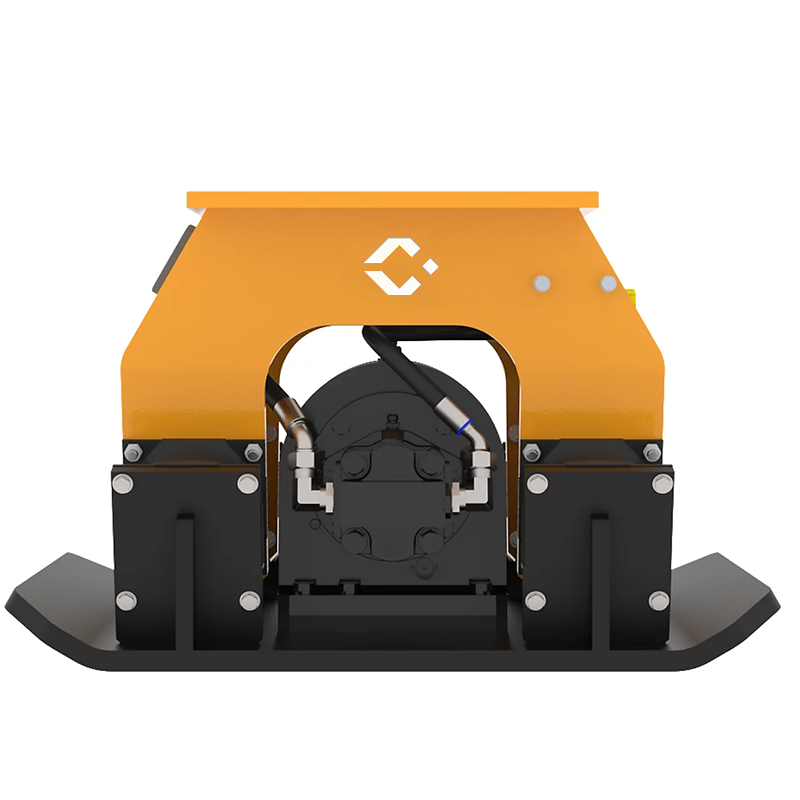

Rotating Version
			HC 350R	HC 450R	HC 850R	HC 1050R
Carrier weight class	t	–	4-8	5-9	9-20	20-40
Service weight	kg	–	450	570	1,010	1,320
Product weight	kg	–	416	528	952	1,225
Height	mm	–	913	622	1,054	1,080
Width	mm	–	475	610	710	864
Length	mm	–	846	929	1,272	1,364
Vibrating force	t	–	2.3	3.6	7.3	0.9
Revolutions per minute	n/min	–	2,100	2,200	2,200	2,200
Vibrating frequency	Hz	–	35	37	37	37
Plate coverage	㎡	–	0.31	0.4	0.68	0.9
Static and rotating version
Force	kN	14	23	36	73	105
Number of revolutions	rpm	2100	2,100	2200	2,200	2200
Frequency	Hz	35	36	37	37	37
Compaction coverge	㎡	0.17	0.31	0.4	0.68	0.9
Oil flow rate	l/min	30	57	76	114	151
Max. operating pressure	bar	150	160	160	200	200
Oil flow rate（rotation）	l/min	–	25	25	25	25
Max. operating pressure(rotation)	bar	–	320	320	320	320

Features and Advantages

1. Exceptional Compaction Performance
   • High Vibration Force: Delivers greater impact force and amplitude than ordinary plate compactors, enabling deeper and more effective compaction.
   • High Compaction Density: Allows for thicker filling layers and meets the strict requirements of high-grade foundations, such as those for highways and railways, significantly reducing the number of compaction passes needed.
2. High Efficiency and Flexibility
   • Quick Attachment System: Easily connected to the excavator via a quick coupler, enabling “one-machine-multi-use.” The same excavator can swiftly switch between digging, backfilling, and compaction tasks, saving time and costs associated with waiting for additional equipment.

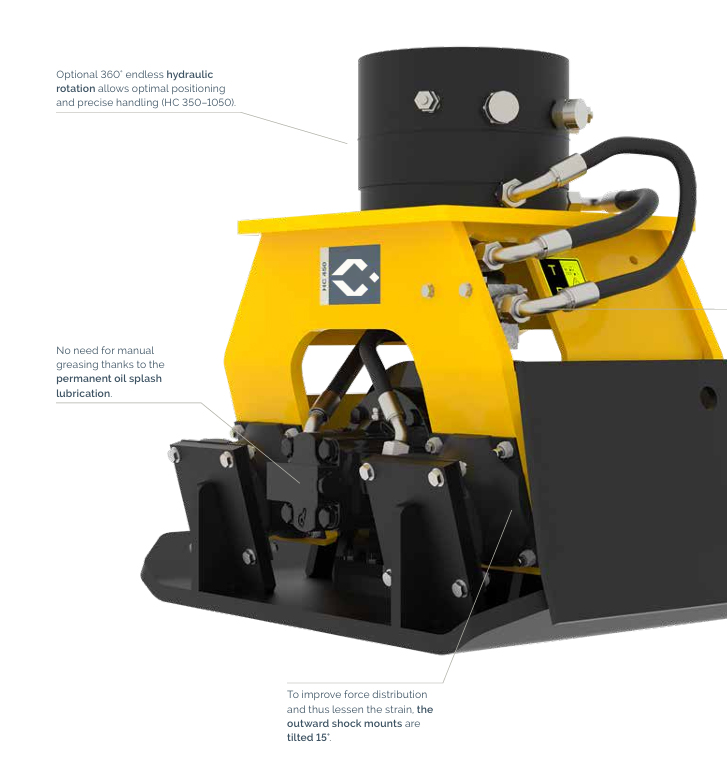

   • Precise Positioning: An optional continuous rotation device allows 360° flexible positioning, making it easy to operate in hard-to-reach areas such as corners, slopes, and trenches, thereby greatly improving productivity.
3. Safe and Eco-Friendly Operation

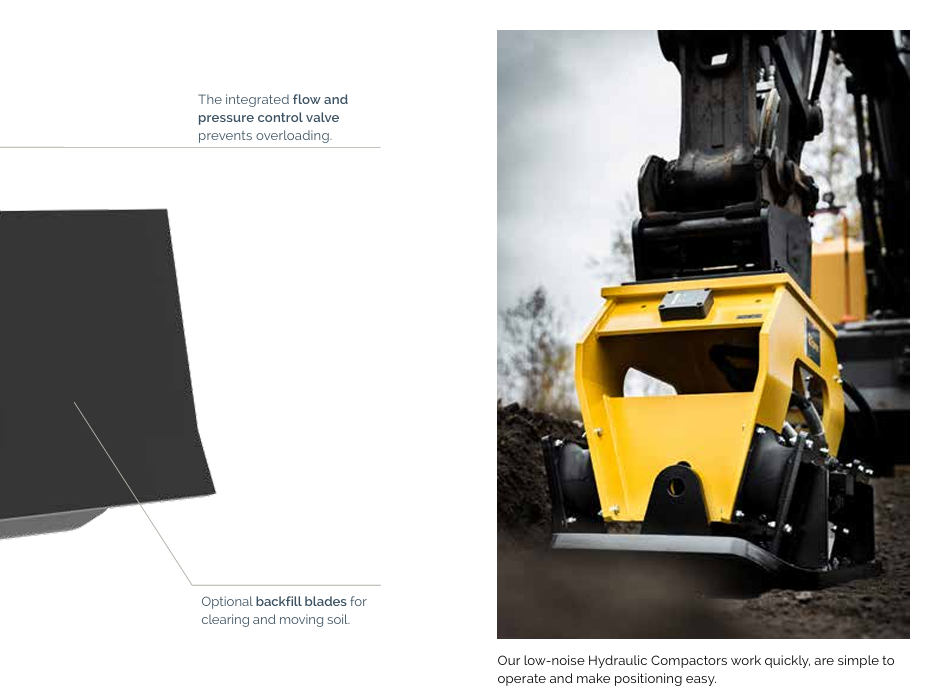

   • Low Noise Levels: Operates much more quietly than traditional equipment, making it suitable for noise-sensitive urban areas or nighttime construction, with minimal disturbance to the surrounding environment.
   • Enhanced Safety: Operators can control the equipment remotely from the cabin, eliminating the need for personnel to enter hazardous areas such as trenches or slopes, significantly reducing on-site risks.

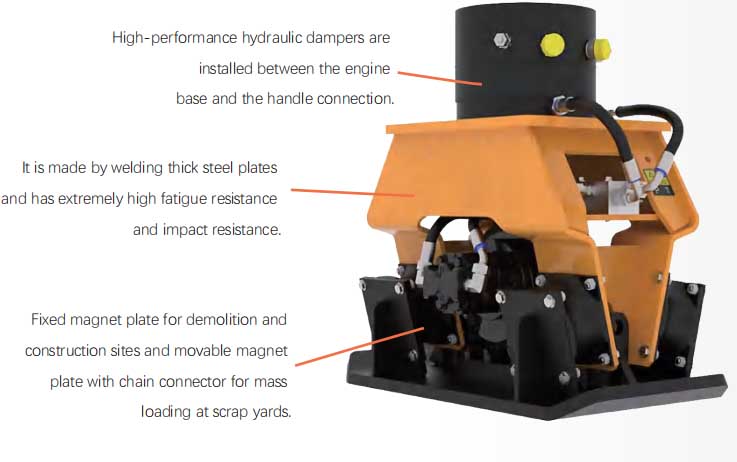

4. Durability and Adaptability
   • Reliable Core Components: Equipped with imported high-performance hydraulic vibration motors, ensuring robust and long-lasting performance even under harsh working conditions.
   • Versatile Terrain Application: Powered by the excavator, it requires no additional power source and can adapt to various complex and changing terrains.

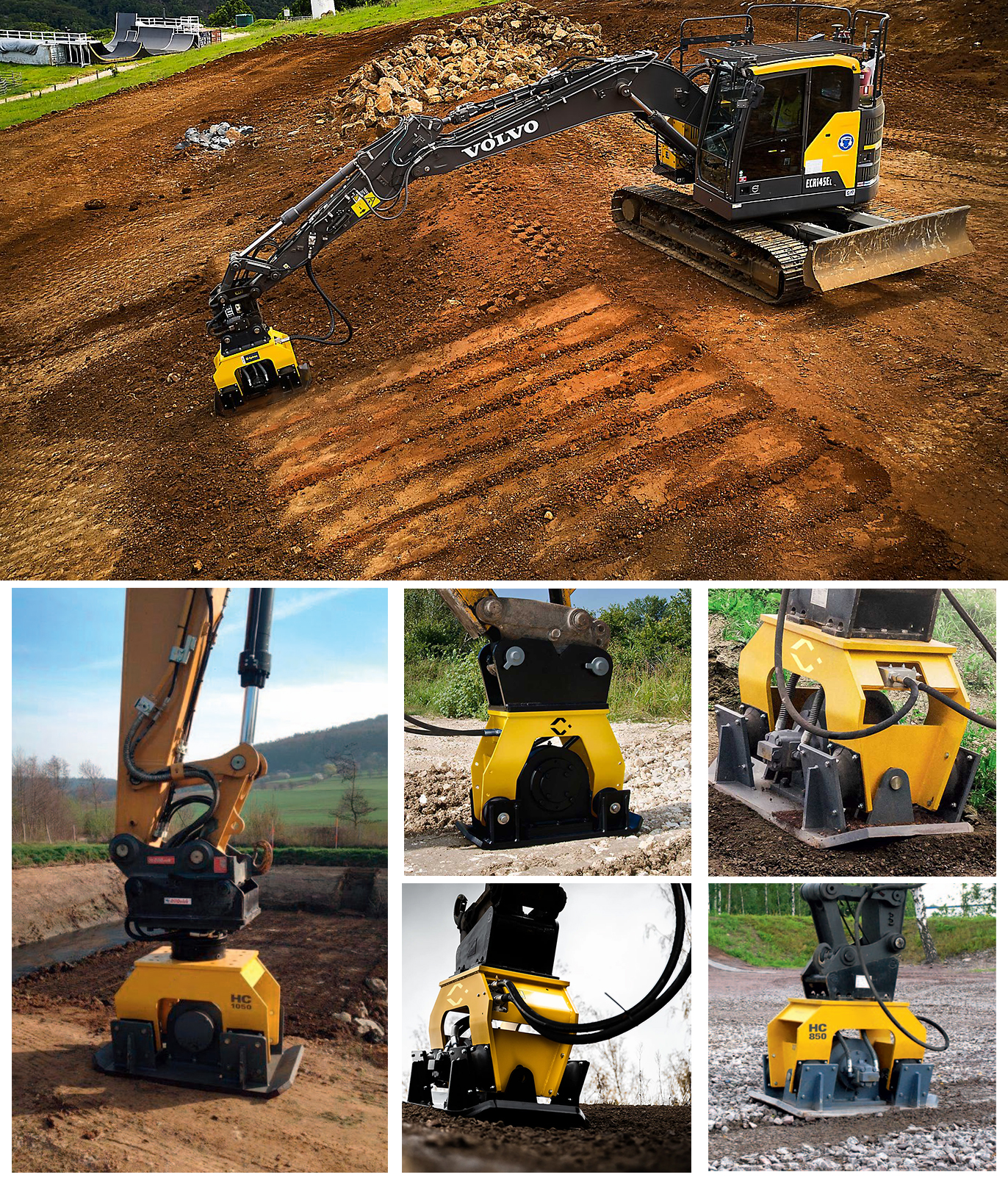

Application Scenarios

Pipeline and Utility Projects: Ideal for compacting back fill in pipeline trenches to ensure soil density.

Road and Railway Construction: Perfect for compacting sub grades, slopes, and abutment backs of highways and railways.

Building Construction: Used for leveling and compacting building foundations and indoor floors.

Water Conservancy and Embankment Projects: Suitable for the construction and compaction of riverbanks and canals.

Confined Space Operations: Irreplaceable for compaction in restricted spaces where large equipment cannot access, such as behind retaining walls, building corners, and utility tunnels.
