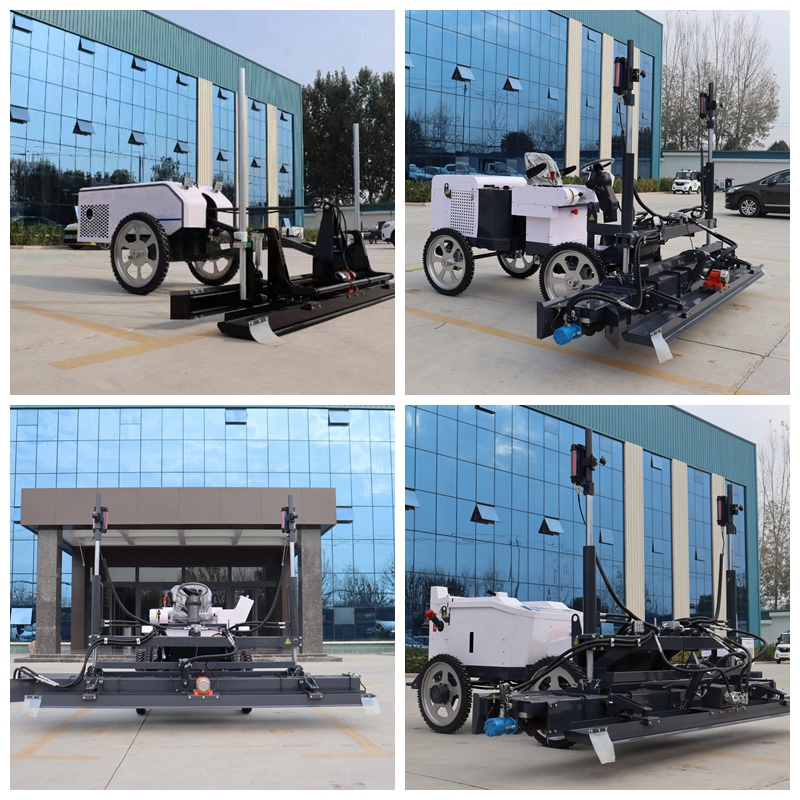

Laser Screed Concrete Machine

Laser Screed Concrete Machine

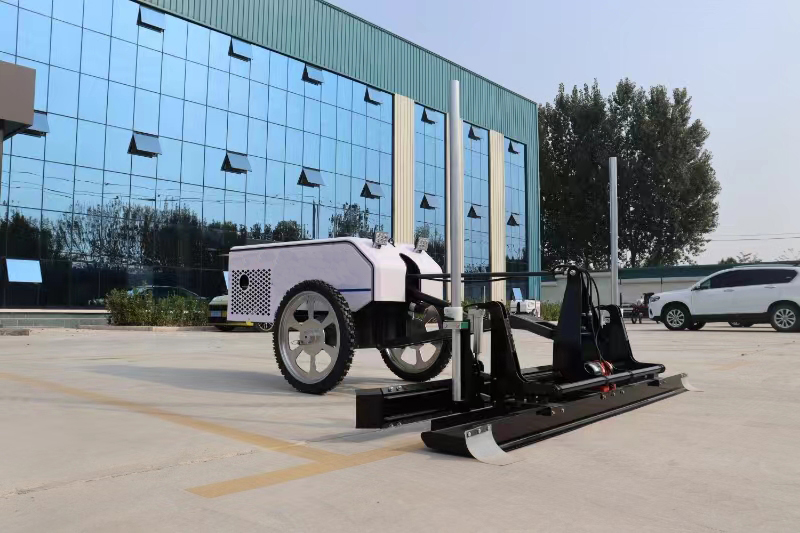

2 wheels machine characters

1.Leveling width:2525m

2.Equipped with Honda’s engine and American Danfoss laser controller,

3.Automatic and manual double control mode, flexible control, single person operation;

4..Independent movement of two wheels, differential turning, flexible and convenient!

5.The laser tansmitter is arranged independently. The large area is paved as a whole, The consistency of ground elevation is guaranteed, with small error, The construction joint is reduced, which greatly reduces the cost of ground maintenance in the later stage.

6.The high-frequency vibrator with 3600 times per minute can effectively solve the problems of hollowing, shelling, cracking and inequality on the ground;

7.The lasers measurement and control system automatically controls the elevation to achieve accurate leveling;

8.The construction area is more than 200m’ per hour, and the work is 2000m’ per day;

Laser Screed Parameter

Model	Jialing/Honda engine (manual/electric start)
Power	3.0KW
Fuel volume	17L(18 hours for construction)
Fuel consumption	0.8-1.3L/h
Laser emission system	Swiss Leica transmitter/Japanese Topcon transmitter/Shuangpo transmitter
Laser receiving system	Swiss Leicareceiver/German Komec receiver
Laser control system	Japanese Mitsubishi/American Danfoss laser control system
Control effect of laser system	Plane,slope or double slope(3D)
Laser system control mode	Automatic control oflaser micro-system to realize automatic leveling
Suspension mode	Flat head independent suspension system (can maintain fuselage balance in complex engineering)
Vibration plate width	2525mm
Leveling thickness	Standard 680 tire 50-250mm/optional 980 tire 50-400mm
Exciting force	2000N
Vibration motor speed	3600rpm
Travel drive	Servo drive motor
Walking mode	Automatic travel of electric control servo system
Walking speed	0-28m/min
Working speed	4m-20m/min
Tail wheel control mode	Manual lifting
Travel tire	Solid anti-skid and stab-resistant narrow tire/optional (inflatable wide tire)
Fuselage size	3200x2700x1120mm
Fuselage weight	260kg
