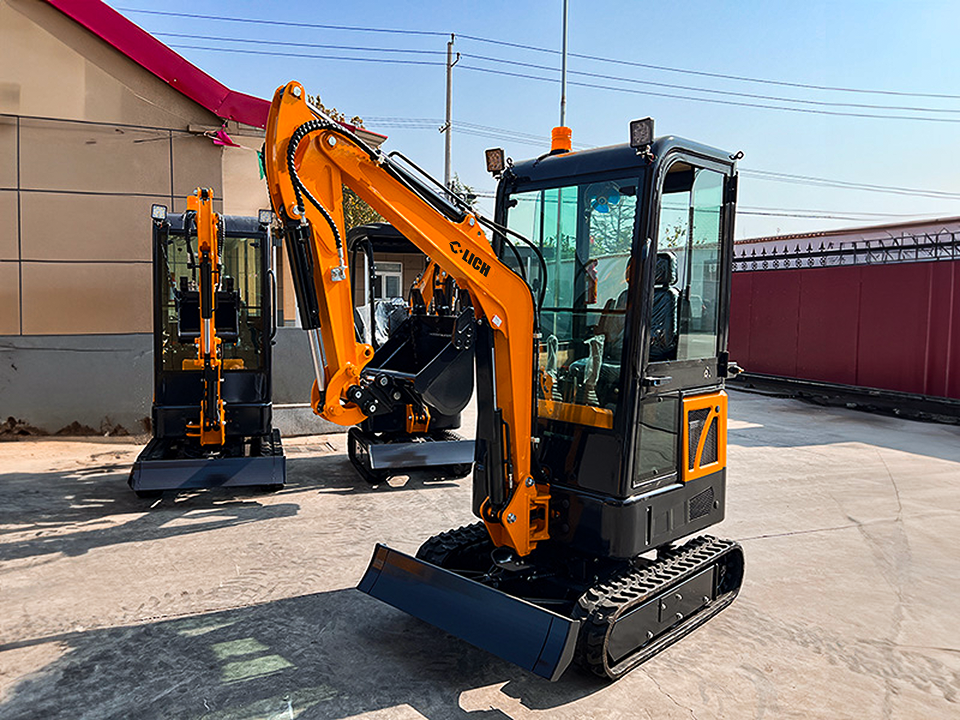

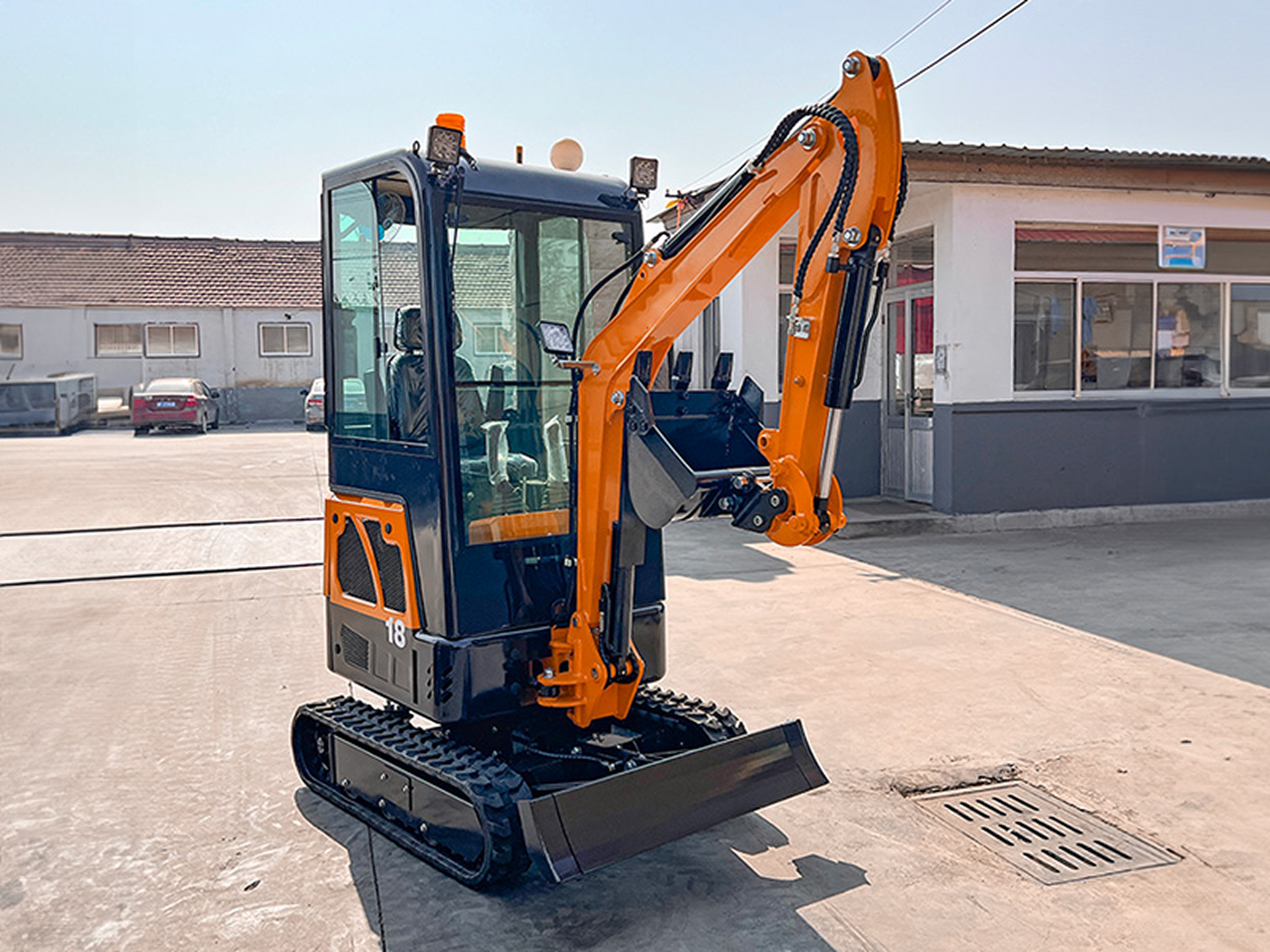

LC18U is a micro non-tail excavator product meticulously developed by LICH. It features tailless rotation, side movement of the arm, and vehicle extension functionality. Equipped with an advanced suspended seat, it effectively reduces the driver's operational fatigue. It is faster in speed, more efficient in operation, and has comprehensive details. It offers multiple attachments and configurations for selection, enabling one machine to serve multiple purposes. It can be regarded as a versatile expert among micro excavators.
Email: [email protected]
The LC18U is equipped with a customized Yanmar 3TNV80F engine, with a power output of 14.6kW. It complies with the Euro IV emission standards, featuring powerful and reliable performance, and can meet the diverse power demands of customers.
It is equipped with a filter-equipped high-precision oil-water separator, which can effectively filter impurities in the fuel while separating water, providing multiple protections for the engine and extending its service life.
The hydraulic system employs a large-torque main pump and a large-flow main valve to ensure efficient operation during excavation and crushing.
Load-sensitive flow distribution system: It can provide and distribute the flow according to the system’s demand for flow, meeting the requirements for speed regulation of the actuating elements and compound actions. Through the optimization of the hydraulic system, it achieves precise matching with the engine, ensuring precise actions and smooth control.
| Model | SY18U | Main Performance | SY18U |
| Operating Weight | 1950kg | Travel Speed | 4.0/3(km/h) |
| Bucket Capacity | 0.04m3 | Swing Speed | 10rpm |
| Engine | Yanmar 3TNV80F | Gradeability | 58% |
| Engine Power | 14.6kW/2400rpm | Ground Pressure | 30kpa |
| Main Pump Flow | 66L/min | Bucket Digging Force | 16.6kN |
| Max Torque | 67.4Nm/1800rpm | Arm Digging Force | 9.2kN |

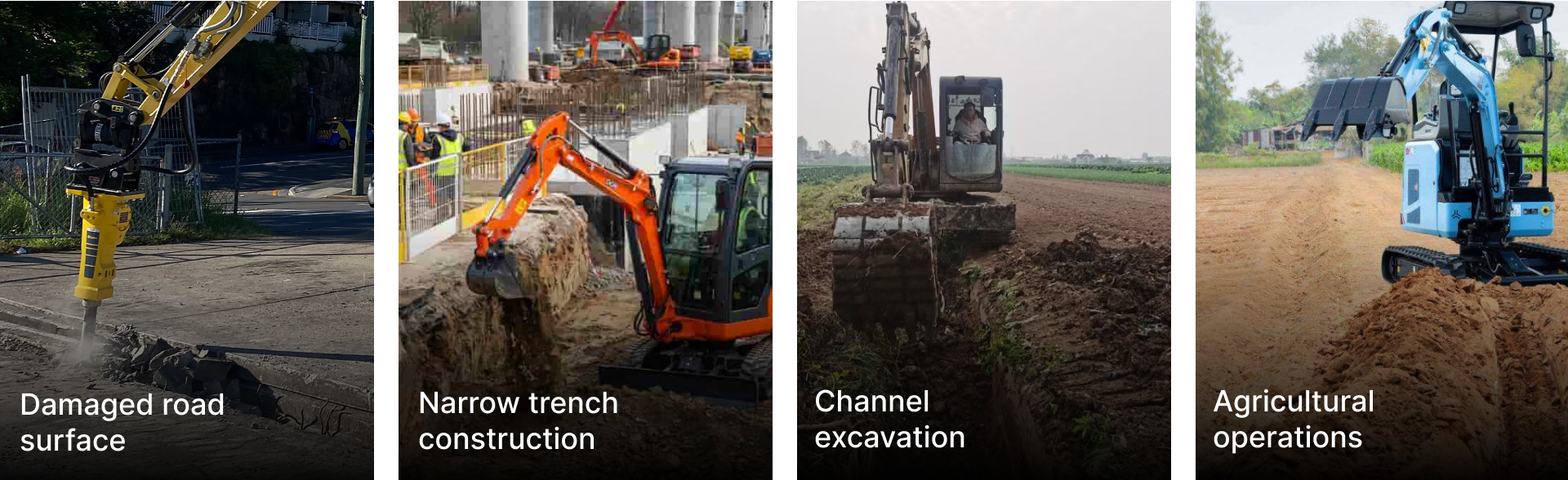

Start from the edge of the pavement and break it piece by piece in an orderly manner. Avoid inserting the drill rod vertically into the pavement and then forcefully prying it, as this may damage the equipment.
The narrow trench can be constructed closely against the structure, avoiding any scratches or damage to the existing infrastructure. Precise control of the excavation path ensures that the trench is straight and of uniform depth.
For channels with a width of less than 1 meter and a depth of less than 2 meters, micro-digging is the most efficient and cost-effective mechanical equipment. Based on the designed depth and soil quality of the channel, plan the excavation sequence and slope appropriately.
The crawler’s ground contact pressure is low, which makes it less likely to cause soil compaction. It causes far less damage to farmland than large equipment. It can freely move within orchards and greenhouses without damaging crops or hardening the pavement.
● Equipment Selection Guide
● Detailed technical comparison
● One-on-one service
● One-year warranty
● Local after-sales service network, with faster response speed
● Inventory of vulnerable parts
● Remote and on-site setup and operationinstructions
● Logistics timeliness
● Ensure timely delivery
● Transport from the port to your designated destination
A: Three key points stand out: powerful engine with low fuel consumption, tailless design for extreme flexibility (particularly suitable for narrow spaces), and versatile functionality (multiple attachments can be quickly swapped).
A: Extremely durable. It features reinforced structural components and internationally renowned core components, which can withstand harsh working conditions and ensure a high rate of operation.
A: Yes, it is. We offer a fast service with a 48-hour response time. Our service network covers the entire country, and we have sufficient stock of common spare parts, ensuring prompt supply.
A: Yes. We offer an economical and practical series. We ensure reliability while optimizing costs, and support flexible low-down-payment financing plans to help you get started easily.
A: Yes. We can provide equipment adaptation and function customization services based on your specific working conditions (such as in forestry, municipal services, etc.).
