Our LC08 boasts a five-speed mechanical drive that ensures precise control during operation. You'll find the hydraulic vibration system with super compaction performance to be a game-changer.This compact double-wheel roller is highly suitable for small and medium-sized road construction projects. It is specifically designed for precise asphalt compaction and features a front and rear vibration function, an ergonomic control device, and a smaller turning radius - making it an ideal choice for urban roads, sidewalks, and lanes.
Email: [email protected]

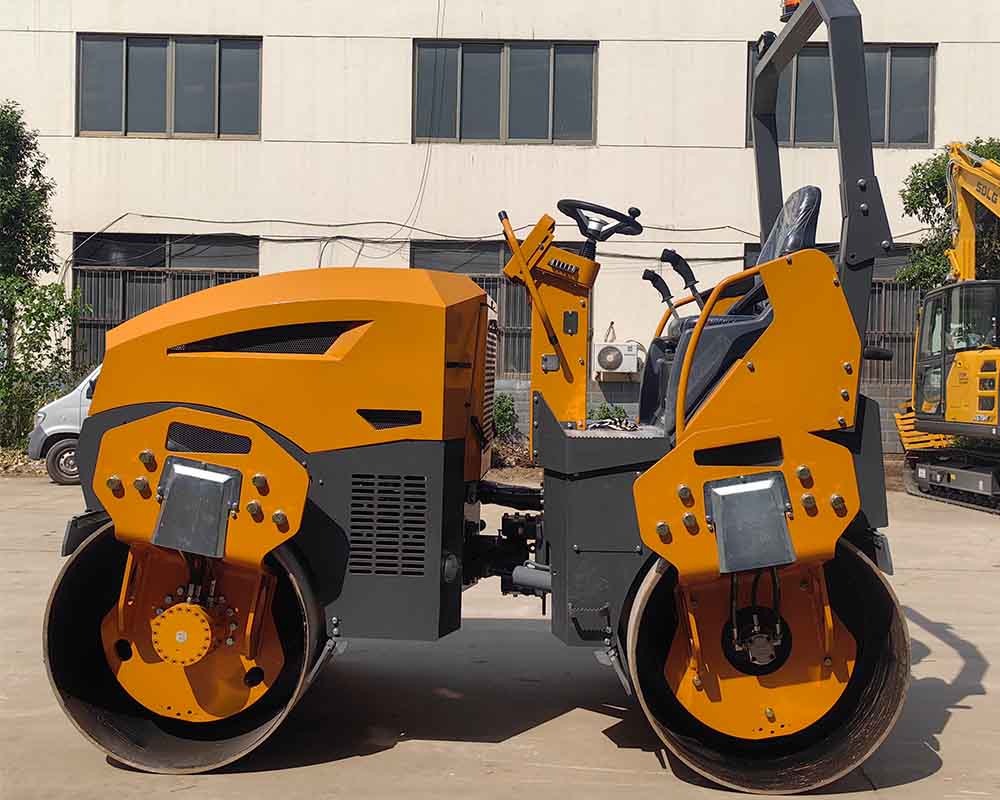

The LICHMACH LC08 Road Roller is highly suitable for small and medium-sized paving projects. It is specifically designed for precise asphalt compaction and features a front and rear vibration function, an ergonomic control device, and a smaller turning radius – making it an ideal choice for urban roads, sidewalks, and lanes.
It adopts hydraulic torque converter for walking drive, hydraulic vibration and articulated steering. It has high value and reliable performance. The handbrake and footbrake ensure the safety and reliability of the machine.
The control panel can be rotated 180 degrees. Operators can easily operate the machine during the forward and backward movements, and each mode has good visibility.
| Model | LC08 | ||||
| Operating mass | kg | 8000 | |||
| Font axle load | kg | 4000 | |||
| Rear axle load | kg | 4000 | |||
| Static linear load | N/cm | 231 | |||
| Form of frame | fork-type | ||||
| Type of water spray | pressure | ||||
| Water tank capacity | L | 400×2 | |||
| Fuel tank capacity | L | 80 | |||
| Hydraulic oil tank capacity | L | 65 | |||
| Vibration amplitude | mm | 0.67(High)/0.34(Low) | |||
| Vibration frequency | Hz | 45(high)/50(low) | |||
| Centrifugal force | Kn | 90×2(hihg)/69×2(low) | |||
| Travel Speed | Km/h | 0-10 | |||
| Steering angle | ° | ±30 | |||
| Electrical voltage | V | 24 | |||
| Grade ability | % | 40 | |||
| Turning radius | mm | 6000 | |||
| Overall dimension (LxWxH) | mm | 4558x1840x2674 | |||
| Vibration drum diameter | mm | 1150 | |||
| Drum width | mm | 1730 | |||
| Wheel base | mm | 3217 | |||
| Diesel engine power | 75Kw/2400rpm | ||||
| Diesel engine model | CUMMINS4BT3.9 | ||||

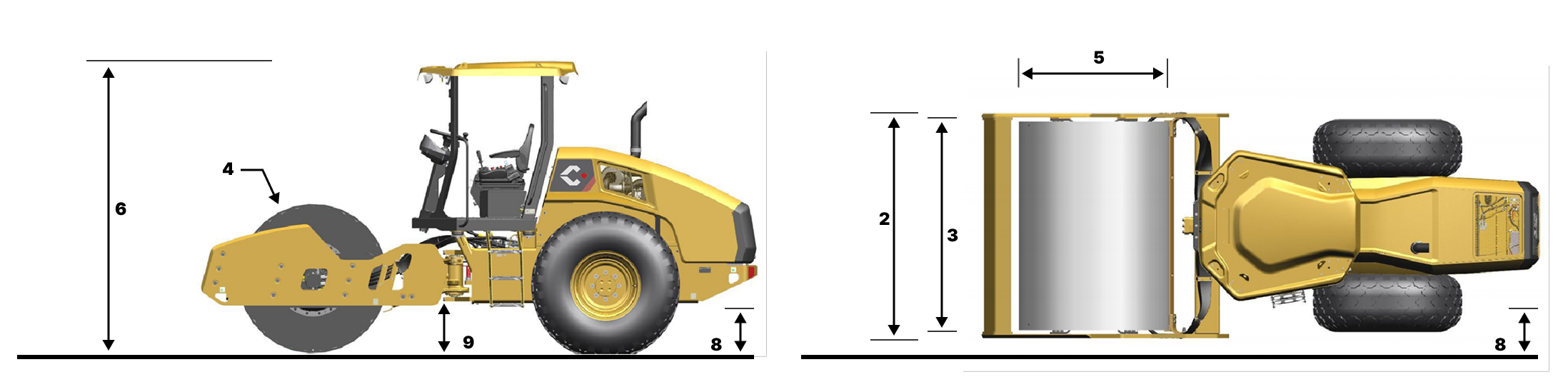

| 1 Overall Length | 5.70m | 18.71 ft |
| 2 Overall Width | 2.30 m | 7.53 ft |
| 3 Drum Width | 2134 mm | 84 in |
| 4 Drum Shell Thickness | 25 mm | 0.98 in |
| 5 Drum Diameter | 1535 mm | 60.4 in |
| 6 Maximum Overall Height | 2.99m | 9.8 ft |
| with Padfoot Shell Kit option | 3.09m | 10.1 ft |
| 7 Wheelbase | 3.00m | 9.8 ft |
| 8 Ground Clearance | 518 mm | 20.4 in |
| 9 Curb Clearance | 492 mm | 19.4 in |
| Inside Turning Radius | 3.86 m | 12.7 ft |
| Hitch Articulation Angle | 34° |
Hydrostatic center articulated steering,Optional patented crab mechanism. The weight at the drum section is relatively heavy and the vibration amplitude is also quite large.
The LICHMACH LC08 Road Roller is easy to operate and the control device is easily accessible. The front and rear views of the machine are wide.
All of LICH’s products undergo professional and rigorous testing before leaving the factory, meeting the highest market standards. LICH strives to provide high-quality products to users all over the world.
Including a highly reliable pod-type vibration system; a permanently sealed and maintenance-free coupler bearing; and an optional compaction control device.
Our hydraulic oil tanks are made of specially treated steel pipes, which can prevent corrosion and extend the system’s lifespan. In terms of oil tank cleaning, hoses and valve blocks are thoroughly cleaned to eliminate contaminants, ensuring clean hydraulic oil circulation and reducing wear.
The diesel cleaning ports are heat-treated and blown with compressed air. This can remove all impurities, ensuring cleaner oil quality. By maintaining the purity of the hydraulic oil, we can minimize system failures and extend the lifespan.
Before shipment, we conduct high, medium, and low pressure tests to ensure the machine operates stably and without leaks. We will also verify its performance under actual working conditions.
LICH products feature quick, tool-free installation and disassembly. This significantly saves your time and enhances productivity at the construction site.
● Equipment Selection Guide
● Detailed technical comparison
● One-on-one service
● One-year warranty
● Local after-sales service network, with faster response speed
● Inventory of vulnerable parts
● Remote and on-site setup and operationinstructions
● Logistics timeliness
● Ensure timely delivery
● Transport from the port to your designated destination
A: The LC08 is equipped with smooth rollers and is suitable for granular soils (such as sandy soil, gravel). If used for cohesive soil, a textured shell kit (oval or square bumps) can be selected to enhance the compaction effect.
A : The product adopts a high-amplitude and heavy-duty drum design, providing strong compaction force. The maximum centrifugal force can reach up to 250 kN, suitable for various compaction operation requirements.
A : The net power is approximately 78.5–79.4 kW, meeting the Tier 3/Stage IIIA emission standards. It is equipped with an environmental protection mode, which can reduce fuel consumption during normal operations.
A : By adopting a lifetime-sealed maintenance-free hook bearing, the maintenance periods of the vibration system and the hydraulic system are extended, reducing downtime and maintenance costs.

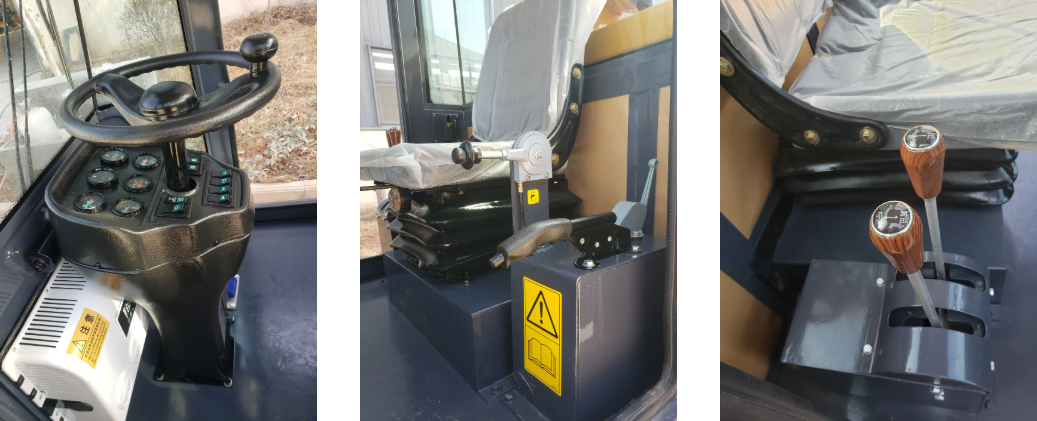

A : It is equipped with sunshades, adjustable seats, handrails/protective barriers, and a well-arranged control console with a wide field of vision. The instrument panel displays multiple parameters, including hydraulic oil temperature, engine oil pressure, and rotational speed, etc.
A : Optional accessories include:
Rounded/Rectangular Bulbous Shell Kit
Polyurethane or steel scraper
Compaction Control System
LED lighting panel
Off-road or off-road tires
Noise reduction kit
Weight increase kits, etc.
