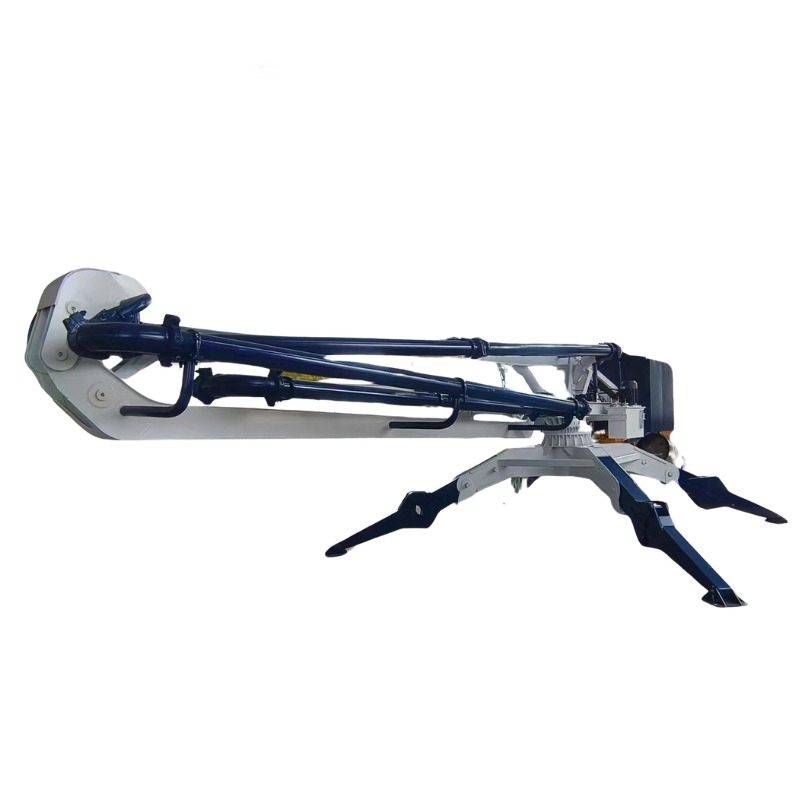

The HGY series mobile concrete placing boom is a self-propelled machine designed for efficient concrete distribution. Featuring a 360° rotating boom with a reach of 18-32 meters, it enables comprehensive, blind-spot-free pouring. Its key advantage is the ability to reposition during operation, significantly boosting productivity by eliminating crane dependency and work stoppages. The placer offers a lightweight design, stable performance, and simple setup, making it an ideal choice for flexible and efficient construction projects.
Email: [email protected]

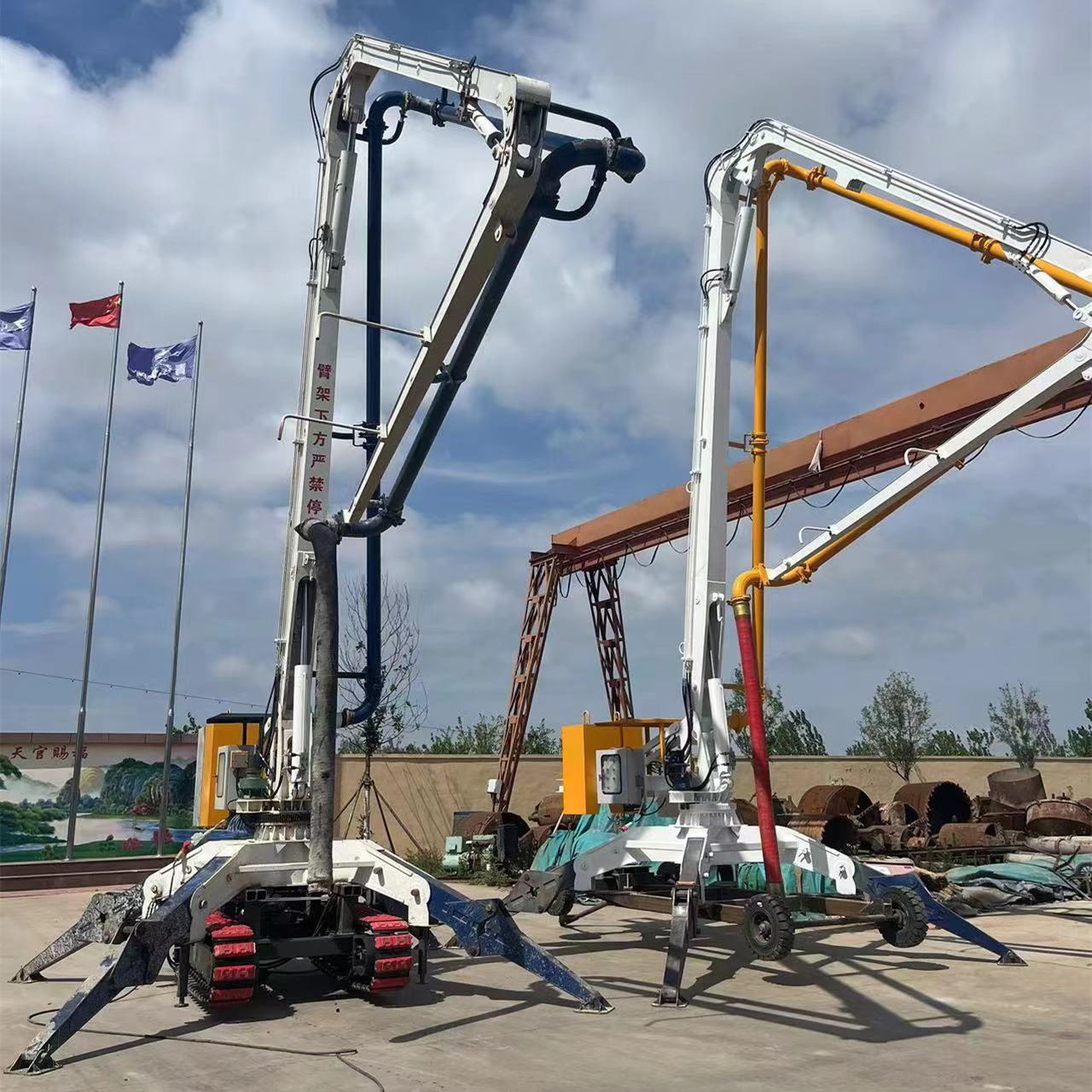

The mobile concrete placing boom serves as the final tool in the concrete pouring process. Connected to concrete pump lines, it receives pressurized concrete and distributes it via a slewing boom. Capable of self-propelled movement—either electric or hydraulic-powered—it can reposition horizontally during operation without external assistance. Its foldable boom provides 360° rotation, enabling full 3D coverage within its working radius without blind spots. This design allows continuous pouring and eliminates delays associated with crane relocation or mid-pour disassembly.
| Model | HGY 32M | HGY 28M | HGY 24M | HGY 21M | HGY 18M | |
| Performance | Maximum Conveying Radius (m) | 32 | 28 | 24 | 21 | 18 |
| Boom Rotation Angle | 400° | |||||
| Operating Ambient Temperature (°C) | -5~40 | |||||
| Tower Height (m) | 13 | 8 | ||||
| Installation Type | Internal climbing type in elevator shaft | Fixed foundation | ||||
| Climbing Type | Cylinder jacking | – | ||||
| Climbing Speed (m/min) | 0.6 | – | ||||
| Climbing Range (m) | 0~4 | – | ||||
| Total Weight (t) | 18 | 16.5 | 14 | 12.5 | 12 | |
| Motor Model | Y160M-4 | Y112M-4 | ||||
| Power (Kw) | 11 | 4 | ||||
| Hydraulic System | Flow Rate (L/min) | 10 | 5 | |||
| Oil Tank Capacity (L) | 240 | 180 | ||||
| Electricity | Speed (r/min) | 1440 | ||||
| System Pressure(Mpa) | 28 | |||||
| Control Mode | Manual/Remote | |||||
| Pipeline Cleaning Method | Water cleaning | |||||
| Boom | Form | Three-section rolling folding, fully hydraulic | Two-section rolling folding, fully hydraulic | |||
| Maximum Elevation Angle | 75° | |||||
| Conveying Pipe Diameter (mm) | φ125 | |||||
(1) The boom is divided into two or three sections, fully hydraulically driven. It folds and unfolds flexibly and easily, can rotate 360°, and has a wide distribution range.
(2) Equipped with both wireless and wired remote control systems, the operation method can be selected as needed. If one system fails, the other can be quickly switched to, ensuring smooth construction progress.
(3) The chassis features an inclined outrigger structure for stable support and comes with a balanced arm design. The base plate does not require bolting to the floor slab—it can be placed directly on the floor surface for simple and fast setup.
(4) The entire machine is made of high-strength steel plates and has been optimized in design, making the placer lighter in weight. This not only reduces the load on the floor but also facilitates hoisting by tower cranes.
(5) Key electrical and hydraulic components use imported brands, ensuring stable and reliable quality with a low failure rate.
(6) The machine can be disassembled into several components for separate hoisting and quickly reassembled. This significantly reduces the maximum hoisting unit weight, lowers the lifting capacity requirements for site tower cranes, and enhances the adaptability of the placer.
