The intelligent grouting vehicle is a high-efficiency construction equipment specifically developed for tunnel and bridge engineering. Its integrated automated operation system significantly improves project quality and construction efficiency. The equipment enables precise slurry proportioning and pressure control, effectively ensuring the density and structural integrity of concrete linings, fundamentally addressing common engineering quality issues such as leakage and hollowing. Its flexible mobile design supports rapid switching between multiple work surfaces, substantially shortening project timelines. The high-performance motor and wear-resistant components ensure durable and stable operation even under harsh working conditions, providing reliable long-term quality assurance for various infrastructure projects. It is an indispensable key equipment for modern construction.
Email: [email protected]

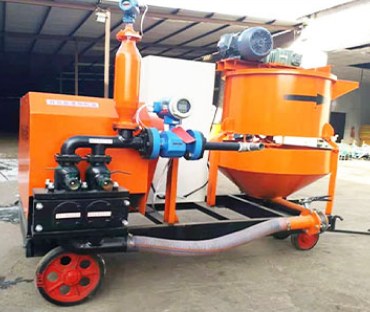

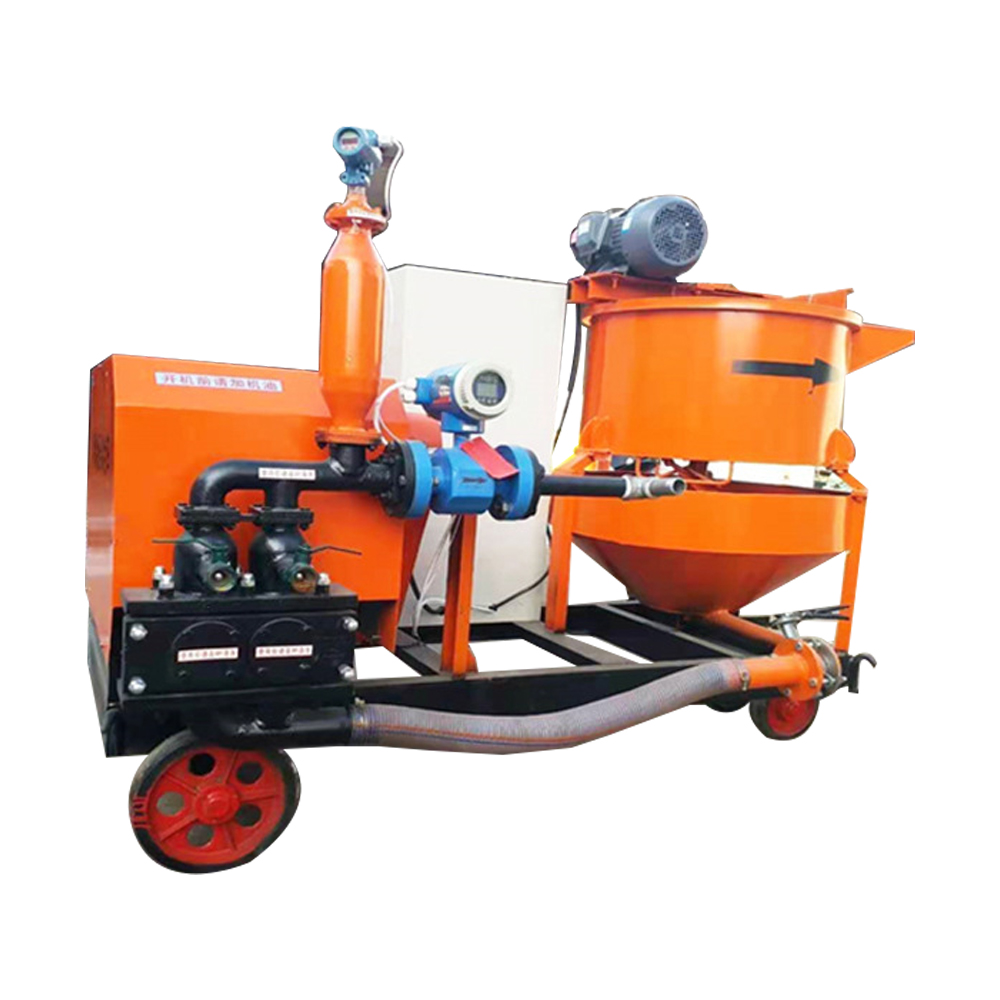

The grouting trolley is a specialized device for railway tunnel lining grouting. It integrates intelligent digital display, automatic flow and pressure metering, mixing, and slurry pumping. It is widely used in railway and highway tunnel construction projects and in some chemical production plants. It features convenient mobility, a high degree of automation, accurate metering, and simple operation.

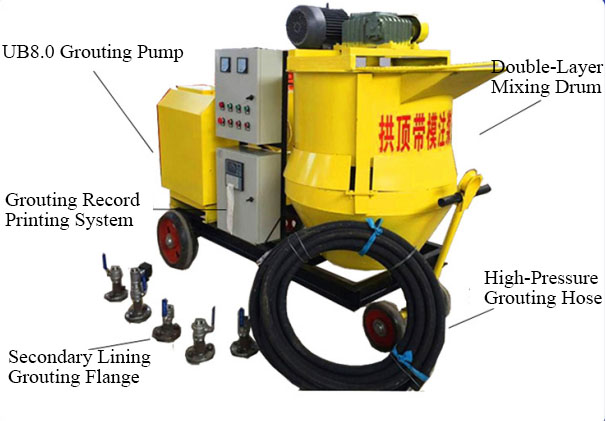

This mobile trolley primarily consists of a mixing system, grouting system, microcomputer-controlled system, and travel system. Its rational structure ensures excellent mixing quality and significantly improves production efficiency.
| Product Name | Arch Roofing and Moulding Integrated Machine |
| Model | SLSJ-800 |
| Working Voltage | 380V |
| Frequency | 50Hz/60Hz |
| Capacity | 8 m³/h |
| Working Pressure | 8 MPa |
| Grouting Power | 11 KW |
| Mixing Power | 4 KW |
| Inlet Diameter | 75 mm |
| Outlet Diameter | 38 mm |
| Net Weight | 870 kg |
| Overall Dimensions | 2100 * 1300 * 1700 mm |
| Model | YG-800 |
| Overall Dimensions | 2100 *1300 *1700 mm |
| Grouting Power | 11 KW |
| Mixing Power | 4 KW |
| Capacity | 8 m³/h |
| Outlet Diameter | Φ 38 mm |
| Inlet Diameter | Φ 75 mm |
| Working Pressure | 8 MPa |
| Net Weight | 870 KG |
| Parameter | Value |
| Capacity | 200 – 400 L |
| Maximum Pressure | 8.0 MPa |
| Motor Power | 11 kW |
| Production Capacity | 8 m³/h |
| Outlet Diameter | Φ 38 mm |
| Inlet Diameter | Φ 75 mm |
| Weight | 870 kg |

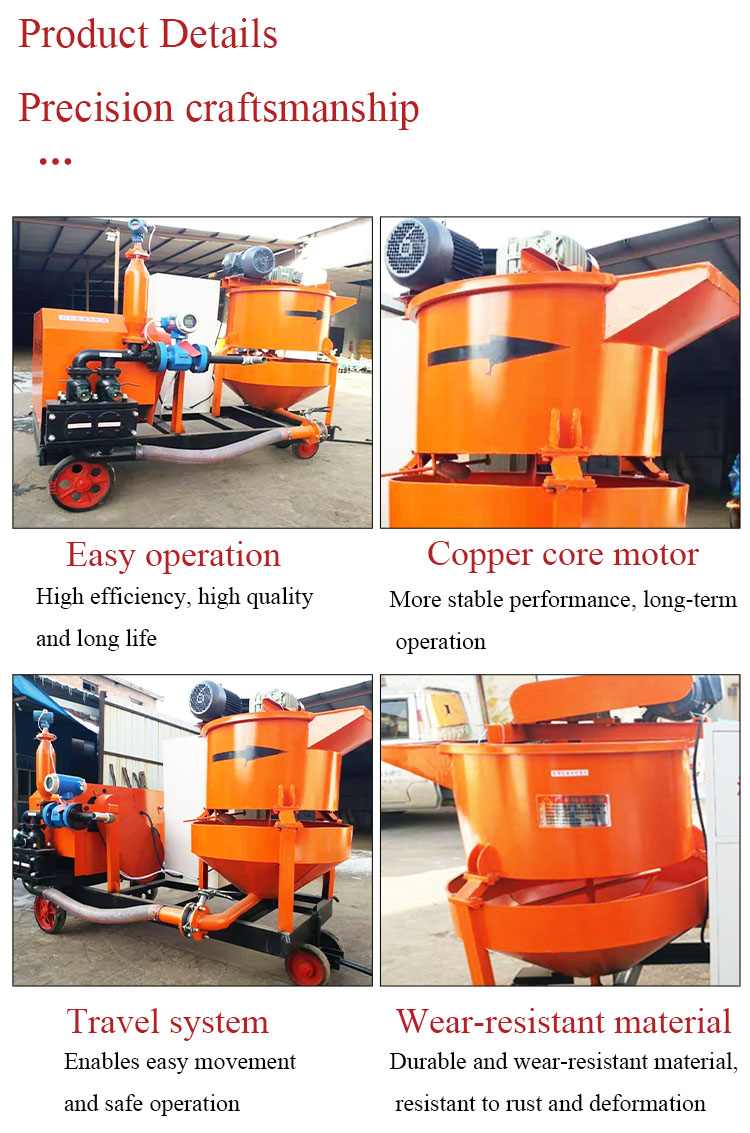

Easy Operation: The equipment is designed with a focus on user experience, aiming to achieve effortless operation. Its advantage lies in simultaneously delivering high efficiency, high-quality performance, and a long service life.
Core Power: Copper Core Motor: The equipment is equipped with a high-performance copper core motor as its power source. This ensures more stable performance and the reliability to adapt to long-term, continuous operation.
Flexible Mobility System: The bottom of the equipment is fitted with sturdy wheels, forming a complete travel system. This allows the equipment to move easily around the worksite and ensures safety during transportation and operation.
Durable and Wear-Resistant Materials: The critical structures of the equipment are manufactured using high-quality, wear-resistant materials. They possess excellent durability and abrasion resistance, and are effectively resistant to rust and deformation, thereby guaranteeing the equipment’s durability in harsh industrial environments.

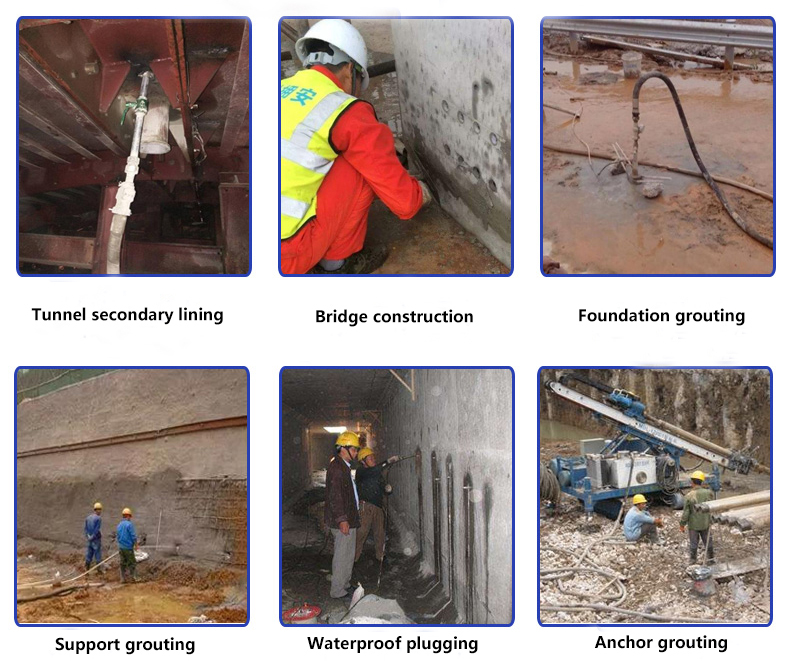

Secondary Lining: Serves as the final structural shape of the tunnel engineering, providing the main load-bearing capacity and the interior surface.
Bridge Construction: Involves the concrete pouring of substructures such as piers and abutments, along with the treatment of critical joints.
Foundation Grouting: Enhances the strength and stability of the building foundation by injecting grout into the subsoil or bedrock.
Support Grouting: Used to reinforce temporary or permanent support structures, such as tunnel faces and excavation slopes, ensuring soil stability during the excavation process.
Waterproof Sealing: Creates a sealing layer at critical locations like tunnel joints and concrete cracks, which is essential for ensuring the long-term durability and safety of underground structures.
Anchor Cable Grouting: Provides substantial tensile and anchoring force to slopes and deep excavations by securing anchor rods into stable rock or soil layers.
