Tower Breaking Hammer with Power Precision and Efficiency

Tower Breaking Hammer with Power Precision and Efficiency

Product Introduction

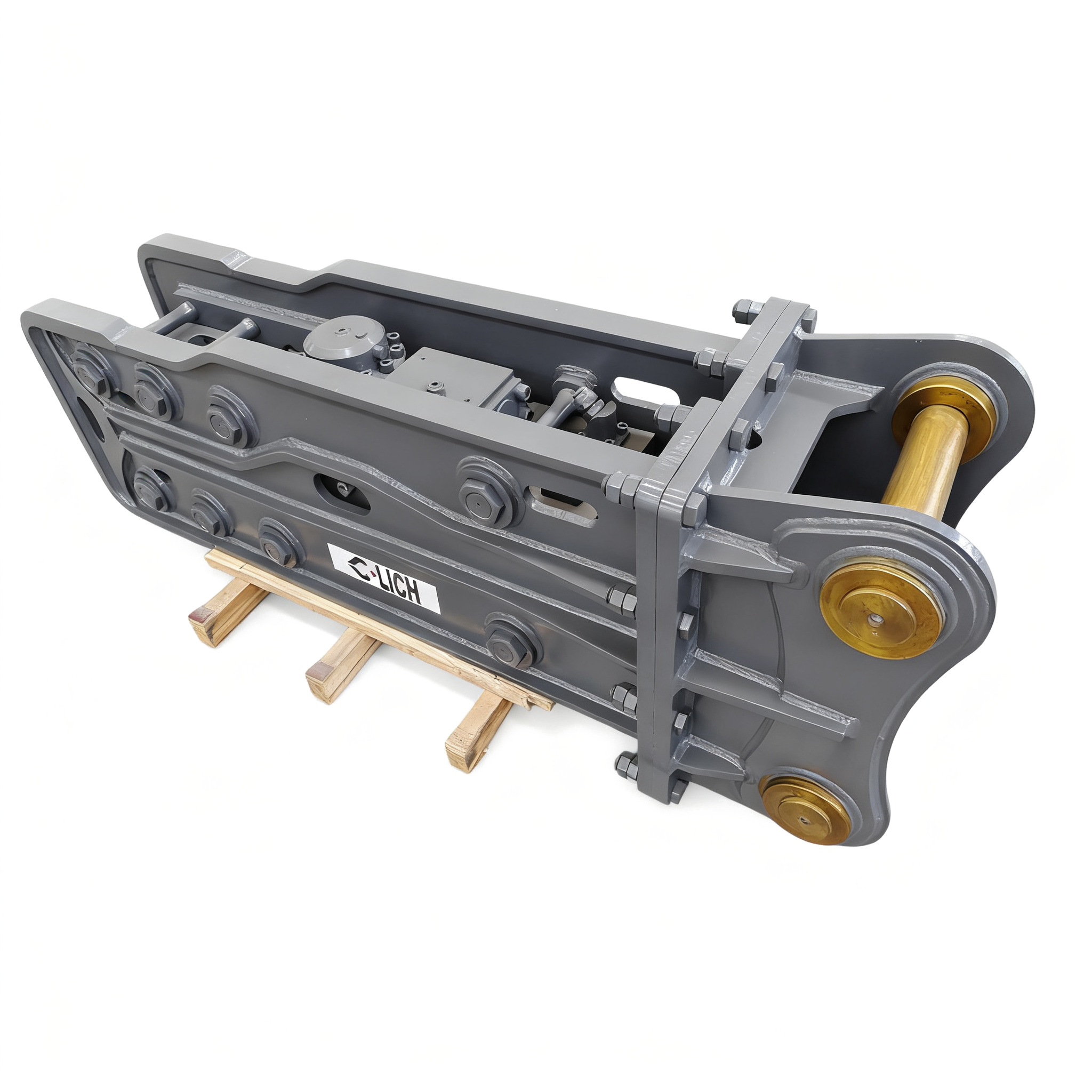

The tower-type breaking hammer is a highly efficient and multifunctional hydraulic crushing equipment. Its unique tower-like structure design achieves an excellent balance of impact energy, frequency, and working range. With a complete product series—from small, medium, and large to extra-large models—it can meet the demanding requirements of various working conditions, ranging from precision demolition to large-scale mining operations. It is an indispensable powerful tool in modern demolition, mining, and infrastructure construction.

Product Parameters

		Miniature Tower Type Breaking Hammer
Performance Parameter	Unit	WW-40	WW-45	WW-53	WW-60
​Weight​	kg	93	116	171	255
​Overall Length​	mm	1185	1270	1430	1550
​Hydraulic Working Pressure​	bar	90~120	90~120	90~130	90~130
​Hydraulic Oil Flow​	L/min	15~30	20~40	20~50	20~50
​Setting Pressure​	bar	130	140	150	150
​Impact Rate​	b.p.m	600~1100	600~1100	600~1100	600~1100
​Striking Energy​	J	204	280	406	722
​Hose Diameter​	inch	½	½	½	½
​Chisel Rod Diameter​	mm	40	45	53	60
​Suitable Excavator​	ton	0.5~1.2	0.8~1.5	1.5~3.5	4.5~6

		Small Tower Type Breaking Hammer
Performance Parameter	Unit	WW-68	WW-75	WW-85	WW-100	WW-125	WW-135	WW-140	WW-140F
​Weight​	kg	299	406	647	950	1337	1893	2197	2377
​Overall Length​	mm	1600	1790	2120	2284	2630	2764	2824	2824
​Hydraulic Working Pressure​	bar	90~130	120~150	130~160	150~180	160~180	160~180	160~220	160~220
​Hydraulic Oil Flow​	L/min	40~60	50~90	60~100	80~110	90~120	100~150	120~180	120~180
​Setting Pressure​	bar	160	180	190	200	210	210	210	210
​Impact Rate​	b.p.m	500~990	450~980	360~690	350~700	350~580	350~500	350~450	350~750
​Striking Energy​	J	1016	1835	2055	3102	6190	6190	6485	6977
​Hose Diameter​	inch	½	½	¾	¾	1	1	1	1
​Chisel Rod Diameter​	mm	68	75	85	100	125	135	140	140
​Suitable Excavator​	ton	4.5~6	6~8.5	7~11	10~15	14~18	18~22	20~24	20~27

		Medium-Sized Tower Type Breaking Hammer
Performance Parameter	Unit	WW-150	WW-155	WW-155F	WW-165	WW-175	WW-175L
​Weight​	kg	2448	2739	2939	3310	4150	4350
​Overall Length​	mm	3019	3133	3177	3370	3848	3877
​Hydraulic Working Pressure​	bar	170~190	180~230	180~230	200~240	210~240	210~240
​Hydraulic Oil Flow​	L/min	130~190	180~240	180~240	190~260	200~250	200~250
​Setting Pressure​	bar	230	250	250	260	270	290
​Impact Rate​	b.p.m	280~400	200~300	200~400	150~300	120~200	120~200
​Striking Energy​	J	9380	10930	11977	13200	15500	16507
​Hose Diameter​	inch	1¼	1¼	1¼	1¼	1¼	1¼
​Chisel Rod Diameter​	mm	150	155	155	165	175	175
​Suitable Excavator​	ton	24~27	24~33	27~33	33~36	35~38	36~42

		Large Tower Type Breaking Hammer
Performance Parameter	Unit	WW-185	WW-190	WW-195	WW-200	WW-205	WW-210	WW-220
​Weight​	kg	4307	4986	5500	6588	6980	7217	7337
​Overall Length​	mm	4127	4537	4627	4837	4877	4917	5077
​Hydraulic Working Pressure​	bar	220~260	240~280	260~300	260~300	260~300	260~300	260~300
​Hydraulic Oil Flow​	L/min	220~280	240~280	250~320	260~340	280~360	280~360	280~360
​Setting Pressure​	bar	300	300	320	320	330	330	330
​Impact Rate​	b.p.m	120~180	110~160	100~140	100~140	100~140	100~140	100~140
​Striking Energy​	J	22380	24280	25490	29700	32260	35670	37280
​Hose Diameter​	inch	1¼	1¼	1¼	1¼	1¼	1½	1½
​Chisel Rod Diameter​	mm	185	190	195	200	205	210	220
​Suitable Excavator​	ton	37~50	40~50	45~55	48-60	52~60	55~65	60~65

		Super-sized Tower Type Breaking Hammer
Performance Parameter	Unit	WW-220L	WW-230	WW-240
​Weight​	kg	7520	8909	92200
​Overall Length​	mm	5177	5227	5457
​Hydraulic Working Pressure​	bar	260~300	260~300	260~300
​Hydraulic Oil Flow​	L/min	300~430	330~430	330~430
​Setting Pressure​	bar	340	340	340
​Impact Rate​	b.p.m	100~140	90~130	90~130
​Striking Energy​	J	47000	49800	59800
​Hose Diameter​	inch	1½	1½	1½
​Chisel Rod Diameter​	mm	220	230	240
​Suitable Excavator​	ton	65~100	70~100	70~120

Product Features

1. Small Tower-Type Breaking Hammer (Models WW-40 to WW-140):
   • Lightweight and highly flexible, with advantages such as high impact frequency and low energy consumption.
2. Medium Tower-Type Breaking Hammer (Models WW-150 to WW-175):
   • Features a larger upward working angle and stronger impact energy, excelling in operations within complex spaces.
3. Large and Extra-Large Tower-Type Breaking Hammer (Models WW-185 to WW-240):
   • Possesses tremendous crushing power with extremely high single-impact energy. Its advanced hydraulic system enables precise control and efficient energy conversion. Despite its astonishing breaking force, its impact on the surrounding environment is relatively minimal, achieving a perfect combination of power and precision.

Application Scenarios

1. Small Tower-Type Breaking Hammer (Models WW-40 to WW-140):

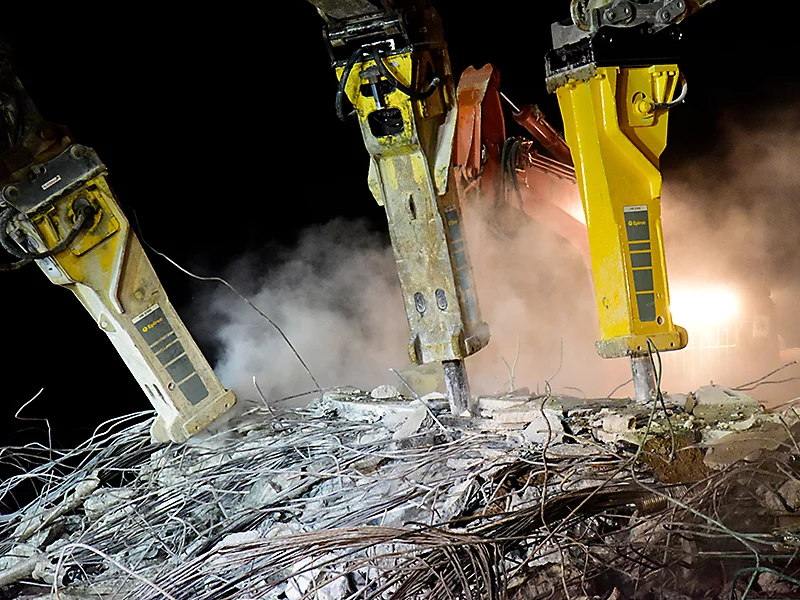

   • Designed for small to medium-sized operations, widely used in building demolition, concrete crushing, highway repair, cement pavement milling, and secondary crushing in mines. It is highly regarded for its efficient crushing capability and exceptional flexibility.
2. Medium Tower-Type Breaking Hammer (Models WW-150 to WW-175):
   • Suitable not only for conventional building demolition and mining but also an ideal choice for tunnel excavation. In the metallurgical sector, it can be efficiently used for specialized tasks such as ladle cleaning, slag processing, furnace dismantling, and equipment foundation removal.
3. Large and Extra-Large Tower-Type Breaking Hammer (Models WW-185 to WW-240):

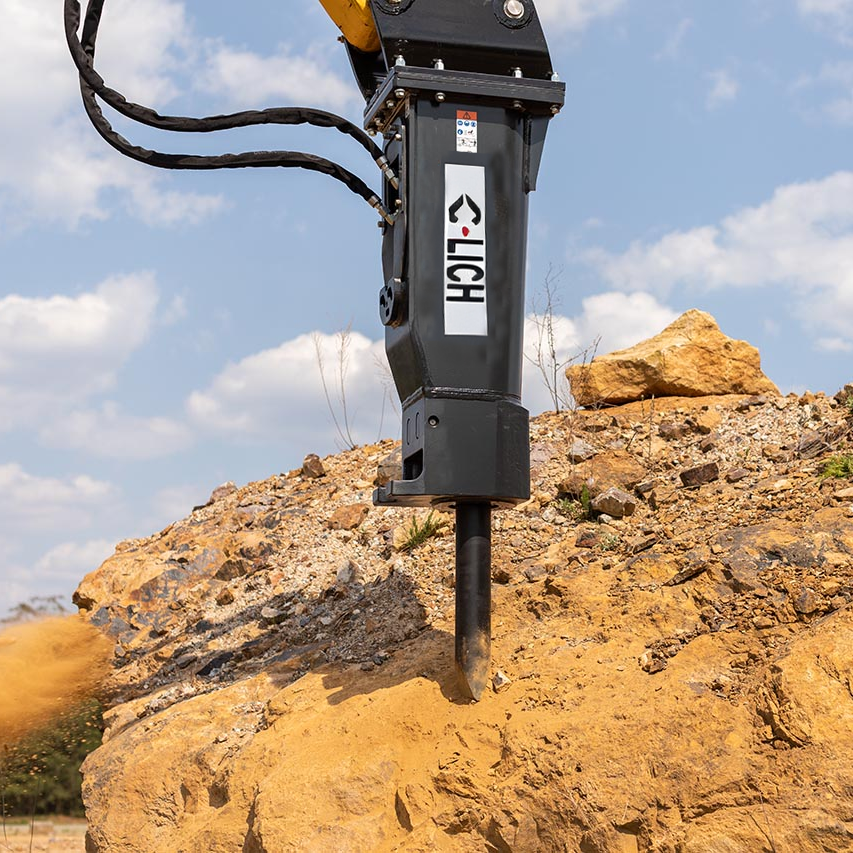

   • Primarily used as an alternative to blasting operations, such as non-blast mining in quarries, urban rock foundation excavation, highway bridge demolition, and large concrete pile breaking in major engineering projects.

Summary

Whether for precision tasks requiring high-frequency breaking or large-scale projects demanding immense impact force, the tower-type breaking hammer series provides reliable solutions. Its high efficiency, flexibility, and precise control capabilities make it an ideal equipment choice for enhancing work efficiency and reducing overall costs.
