Versatile Dual-Power Portable Push-Type Mixer

Versatile Dual-Power Portable Push-Type Mixer

Product Introduction

The versatile portable push-type mixer is an all-in-one mixing equipment designed for small to medium-sized construction projects, home renovations, farm work, and DIY tasks. It perfectly combines robust power, excellent mixing performance, and outstanding portability, efficiently handling various materials such as concrete, mortar, and feed, making it your reliable productivity partner.

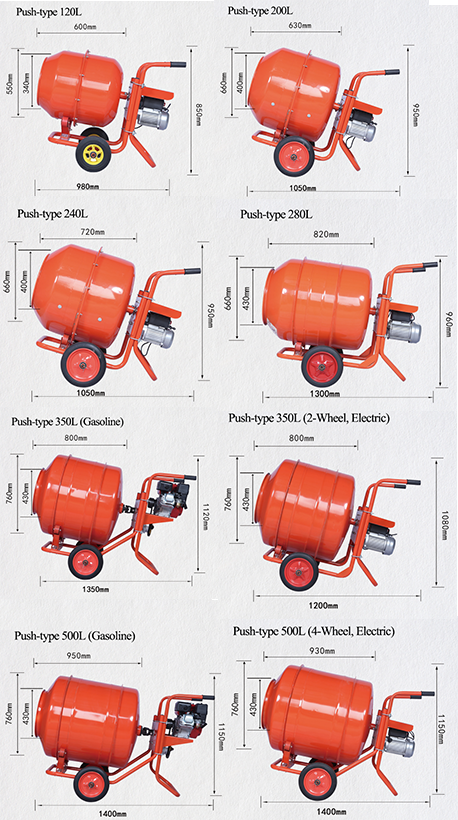

Product Parameters

Model	Motor Power	Motor Speed (rpm)	Mixing Capacity (kg)	Net/Gross Weight (kg)	Drum Opening Height from Ground (cm)	Drum Thickness (mm)	Overall Machine Width (cm)	Carton Size (cm)
Push-type 120L	2.5 KW	1380-1400	40	46-51	48	2	61	73 × 58 × 40
Push-type 200L	2.5 KW	1380-1400	40	46-51	53	2	61	73 × 58 × 40
Push-type 240L	2.5 KW	1380-1400	150	70-73	53	2	70	79 × 75 × 49
Push-type 280L	2.8 KW	1380-1400	220	85-90	45	2.5	69	95 × 68 × 71
Push-type 350L (Gasoline)	4-Stroke Engine	1380-1400	300	95-100	58	2.5	79	94 × 78 × 82
Push-type 350L (2-Wheel, Electric)	2.8 KW	1380-1400	300	90-95	52	2.5	79	94 × 78 × 82
Push-type 500L (Gasoline)	4-Stroke Engine	1380-1400	380	105-110	58	2.5	79	104 × 78 × 81
Push-type 500L (4-Wheel, Electric)	2.8 KW	1380-1400	380	90-95	52	2.5	79	99 × 78 × 91

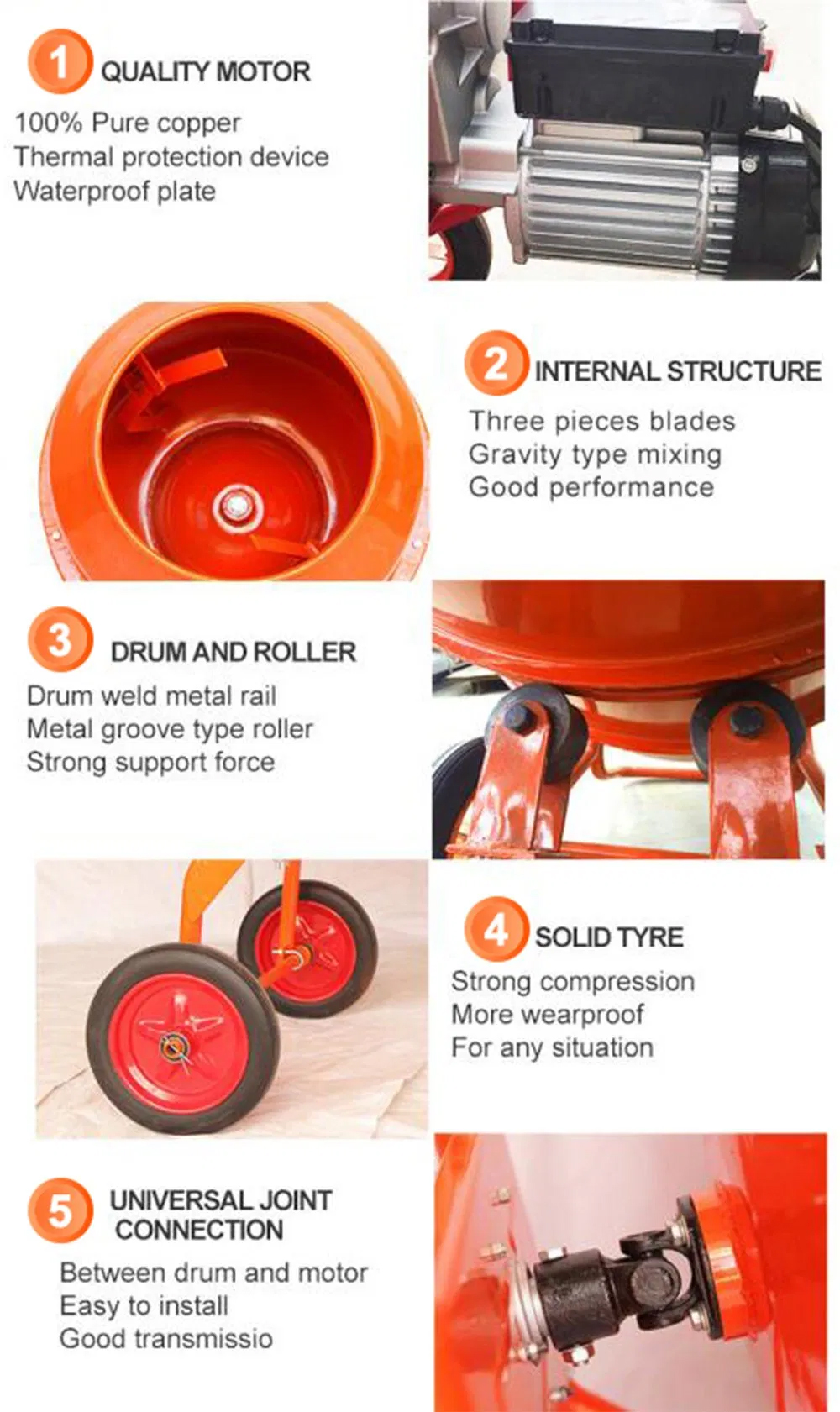

Product Features

1. Powerful & Durable Core
   • High-quality copper-wire motor: Equipped with a 100% pure copper coil motor, delivering strong power, high efficiency, and long service life.
   • Safety protection design: The motor includes a built-in thermal protection device to effectively prevent overload burnout, ensuring safer operation.
   • Dual-power options: Available in both electric and gasoline-powered versions to suit various working environments with or without electricity.
2. Efficient & Uniform Mixing
   • Gravity mixing principle: Features a unique three-blade design that enables dead-angle-free mixing, delivering more uniform results far superior to ordinary mixers.
   • Wide material adaptability: Capable of easily mixing dry-hard concrete, plastic concrete, fluid concrete, various mortars, gypsum, feed, and even paint, making it a multi-purpose machine.
3. Sturdy Structure & Long-Lasting Durability
   • Reinforced drum and stable support: The drum is made of thickened steel plates with welded metal guide rails, tightly coupled with metal grooved rollers, providing strong support for heavy-duty mixing and ensuring rugged durability.
   • Key component optimization: Utilizes a universal joint connection for smooth transmission, easy installation, and reduced wear.
4. Easy Mobility & User-Friendly Operation
   • Push-type design with solid tires: Equipped with highly wear-resistant, puncture-proof solid tires that require no inflation, allowing easy movement even on rough construction sites.
   • Compact structure: The machine is reasonably designed, compact in structure, simple to operate, and highly reliable.

Application Scenarios

1. Construction projects
   • Auxiliary mixing tasks for housing construction, roads, bridges, airports, tunnels, and other engineering projects.
2. Renovation & landscaping
   • Home renovation, yard remodeling, bricklaying, plastering, floor construction, etc.
3. Agriculture & farming
   • Mixing various types of animal feed and fertilizers.
4. Prefabrication plants
   • Provides efficient mixing solutions for medium to large prefabricated component plants.
