Our Wet Concrete Shotcreting Machine is engineered for superior performance in the most demanding ground support and construction applications. It expertly delivers pre-mixed wet concrete through a high-velocity air stream, enabling rapid application of a dense, high-strength, and uniform layer onto surfaces. This makes it the ideal solution for efficient tunnel linings, slope stabilization, mining shaft support, and structural rehabilitation. With versatile power options (electric or diesel) and a robust design, it ensures remarkable productivity, significantly reduced rebound, and exceptional finished quality, ultimately saving you time and labor costs on your project. Invest in reliability and excellence to build with confidence.
Email: [email protected]

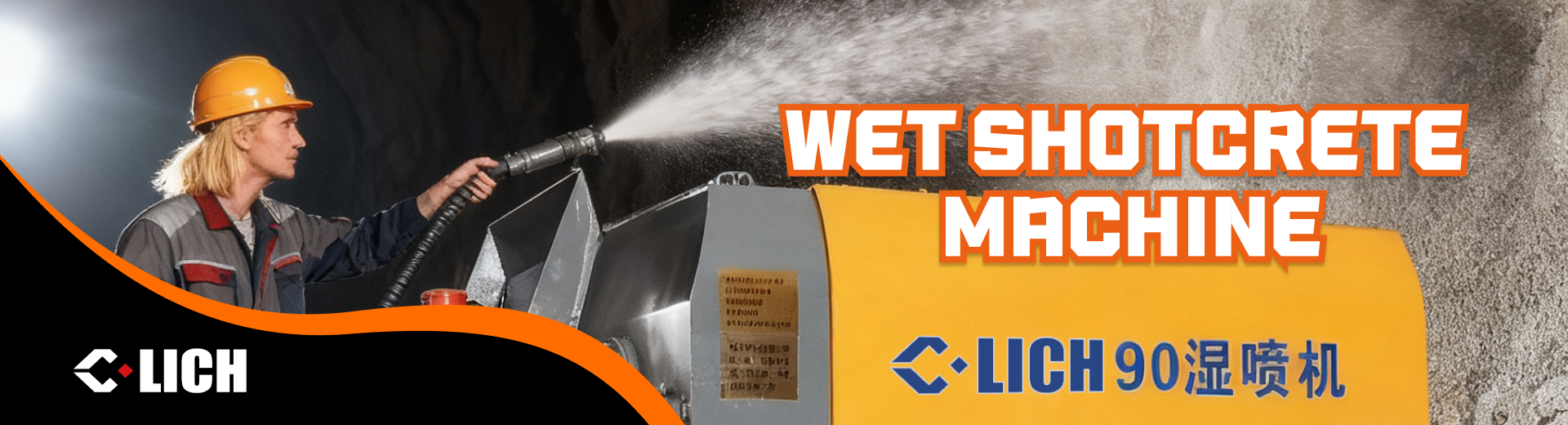

Wet shotcrete machine: A modern construction machinery with efficient operation capabilities
This machine is a hydraulic pump-driven wet spray machine. It uses hydraulic pumping technology to convey materials and is combined with compressed air to form a thin material flow. At the spray outlet, it forms a high-speed spray pattern, which is directly sprayed onto the sprayed surface to harden and solidify, thereby forming a concrete support layer. It can also be applied to spraying, grouting, pumping and other construction operations. This wet concrete spraying machine, with its advanced spraying method, significantly improves the construction environment and is widely used in fields such as building construction, subway construction, railway and highway tunnel construction, mine shaft construction, and slope reinforcement.
Environmentally Friendly and Healthy: Ultra-low dust construction fully protects worker health and meets stringent environmental standards.
Superior Quality: Homogeneous and high-strength concrete ensures stable and reliable support structures, significantly improving project durability.
Economical and Efficient: Extremely low rebound rate directly saves material costs and greatly improves construction efficiency.
Advanced and Intelligent: Perfectly compatible with automated robotic arms, leading a new direction in remote intelligent construction.
| Name: | Wet Spray Machine |
| Model: | LC-90 |
| Capacity: | 8m³/h |
| Max. Conveying Distance: | Horizontal: 120m, Vertical: 30m |
| Max. Aggregate Size: | 20mm |
| Working Air Pressure: | 0.3～0.6MPa |
| Air Consumption: | 12m³/min |
| Accelerator Adding Capacity: | 0～180L/h |
| Dust at Machine Side: | <6mg/m³ |
| Motor Power: | 22kW |
| Voltage: | 380V |
| Overall Dimensions: | 3550x1500x1450mm |
| Machine Weight: | 1850kg |
Compliant with international trade standards, suitable for sea, rail and road transportation. We provide complete export customs declaration documents to ensure smooth customs clearance.

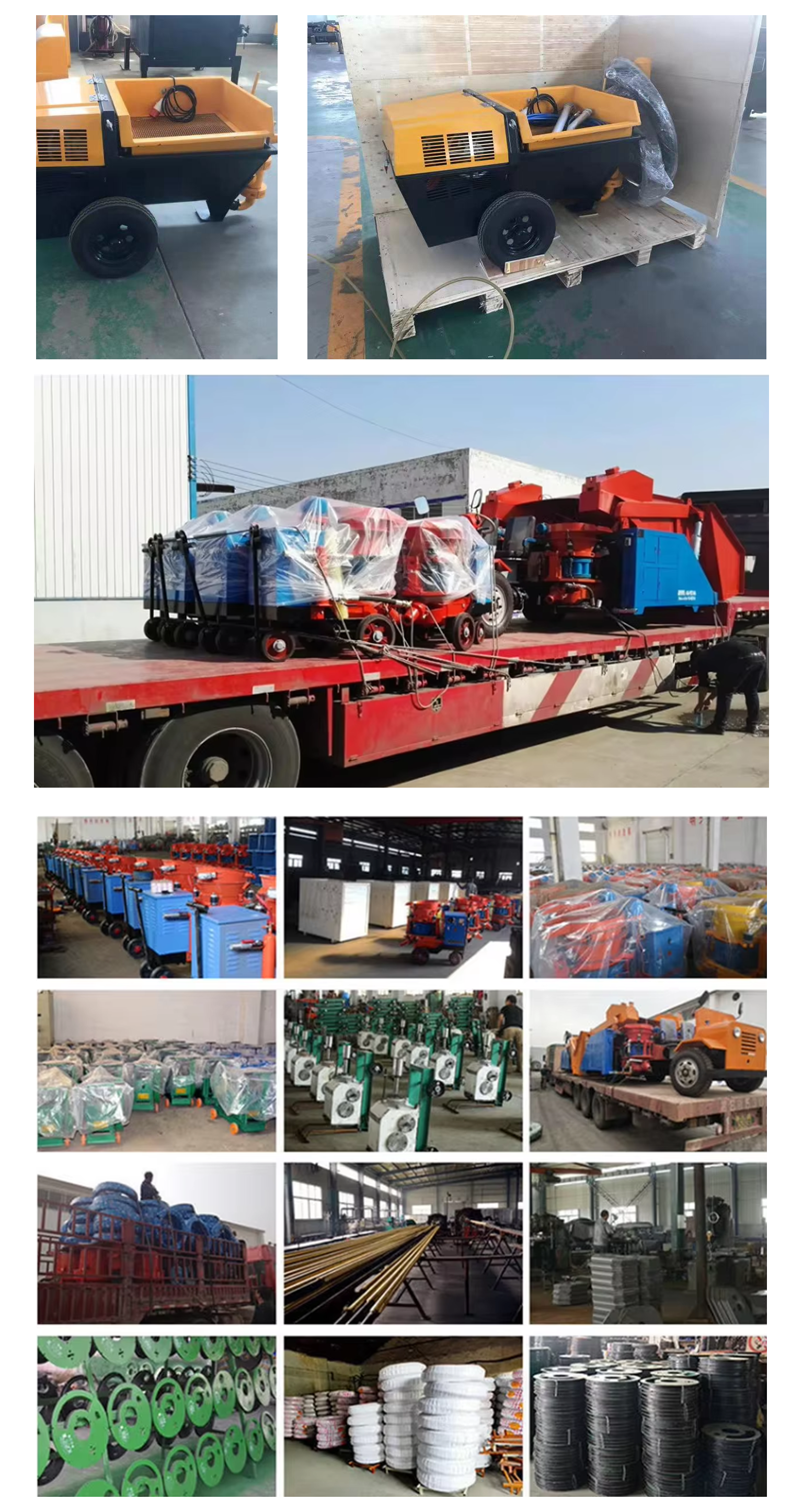

We reject simple packaging and adopt a comprehensive protection plan:
Main frame and core components: Use a sturdy steel-wood structure base to fix the equipment, and cover it with a high-strength waterproof composite film and custom protective corners, effectively preventing moisture, rust, and collision.
Precision components and appearance: For key precision components such as laser emitters and hydraulic cylinders, we provide exclusive customized foam padding for fixation to prevent displacement and vibration. The entire machine is wrapped with an all-around film covering, effectively resisting scratches and damages during transportation.
Clear identification: The packaging is clearly marked with equipment information, lifting position, moisture-proof and pressure-resistant, etc. (these are) international standard identifications, guiding loading and unloading personnel to operate in a standardized manner.
Laser Leveling Machine Frequently Asked Questions (FAQ)
Q1: What is its main purpose?
A: It is primarily used to rapidly support and reinforce structures like tunnels and slopes by high-pressure spraying of pre-mixed wet concrete.
Q2: What are its application scenarios?
A: It is widely used in underground and geotechnical engineering such as tunnels, mines, subways, and slope support.
Q3: How many operators are needed?
A: Typically, a team of 3-5 people is required for coordinated operation.
Q4: What is the power source?
A: We offer both electric and diesel power options to suit worksites with or without electrical supply.
Q5: What size worksite is it suitable for?
A: The machine itself has a small footprint and is mobile, requiring only sufficient space for access and operation, with no strict overall area requirements.
Q6: How can I purchase it?
A: Simply contact us to confirm requirements and get a quote; we handle the entire process from contract signing to ocean shipping, and you receive the equipment.
Q7: What services are included?
A: Purchase includes comprehensive services like model selection guidance, operation training, installation support, and lifetime technical consultation.
Q8: What if it breaks down?
A: We provide a 12-month warranty and guarantee a 24-hour remote fault response to ensure swift issue resolution.
