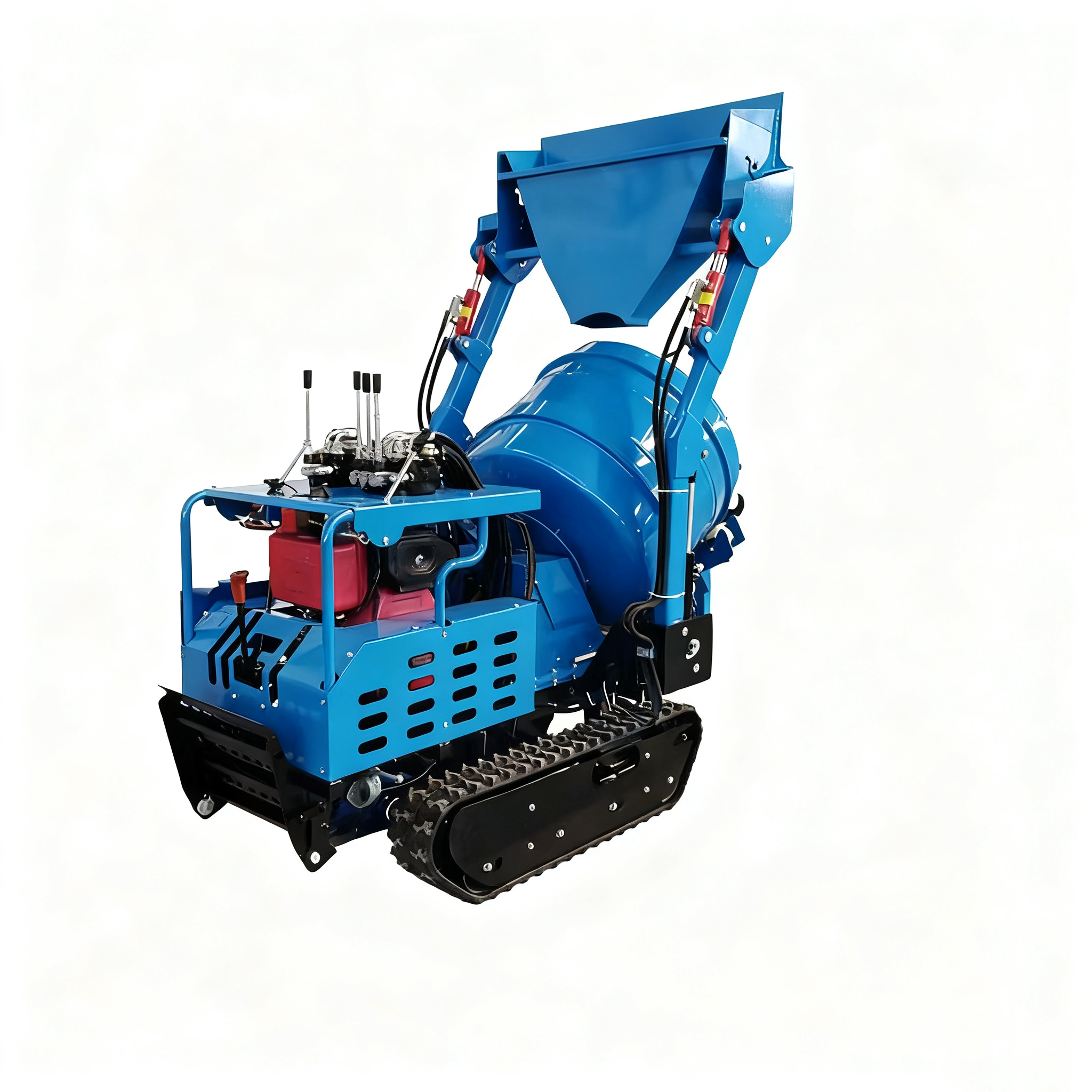

​350L Tracked Concrete Mixer

​350L Tracked Concrete Mixer

Product Introduction

The Tracked Concrete Mixer Vehicle is an innovative piece of engineering machinery that integrates mixing, transportation, and discharging functions. It combines the specialization of a concrete mixer truck with the high passability of a tracked chassis, specifically designed for construction scenarios in narrow, rugged, or complex terrain. This equipment can not only transport ready-mix concrete but also act as an independent mobile mixing station, enabling on-site material mixing and precise pouring, effectively solving the industry pain point of large mixer trucks being unable to access specific sites.

Product Parameters

​Model​	LC-350L
​Engine​	Changchai 178 diesel engine, 4-stroke, 5.5HP, air cooler
​Gearbox​	GL-10 Gear: 3 Forward + 1 Reverse
​Operation Ways​	Manual Lever
​Unloading Ways​	Hydraulic
​Capacity of Shovel​	0.08 m³
​Feeding Capacity​	≥450L
​Discharge Capacity​	≤300L
​Weight of Mixer​	≤500 kg
​Size of Drum​	Φ760 * 820 or Φ660 * 920
​Overall Size​	2500×1080×1500mm
​Weight of Machine​	580 kg
​Rubber Crawler Size​	150×60×44
​Rubber Crawler Touching Length​	900mm
​Walking Speed​	2-8 km/h
​Obstacle Ability​	Max. 30° slope, Vertical 200mm
​Wading Depth​	300mm
​Package Size (one set)​​	2070×1100×1600mm (Plywood case)
​Remark​	Diesel or gasoline can be chosen with Euro 5 or EPA Certificate

Product Details

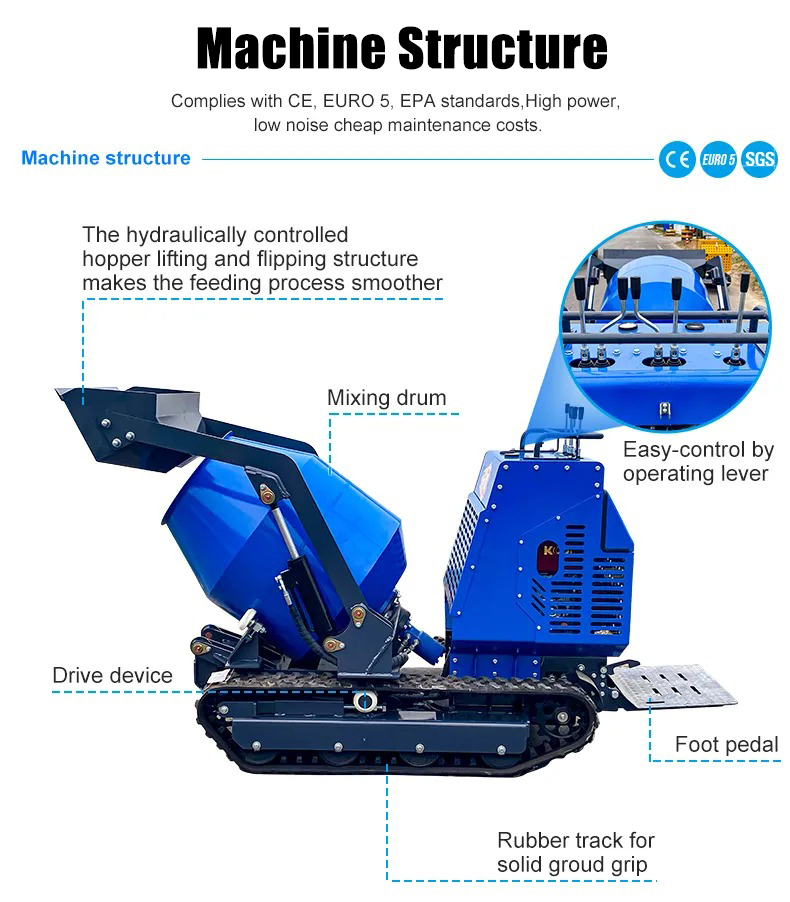

The equipment is mainly composed of a mixing system, power system, travel system (tracked chassis), and hydraulic self-dumping system.

1. Working Principle: During operation, the mixing drum rotates continuously to prevent the concrete from solidifying during transit, ensuring concrete quality. Upon reaching the work point, the concrete is accurately discharged via a hydraulically controlled self-dumping mechanism.
2. Power Source: The mixing power can be flexibly chosen; it can be provided by the chassis itself, or by an independent diesel engine or electric drive (a generator can be equipped), adapting to the energy conditions of different work sites.
3. Mixing Method: It adopts a flat vertical disc forced mixer with a multi-blade design, offering strong mixing power that ensures homogeneous mixing of all concrete components. This effectively avoids common issues with traditional drum mixers, such as uneven dry-wet mixing and segregation.

Product Features and Advantages

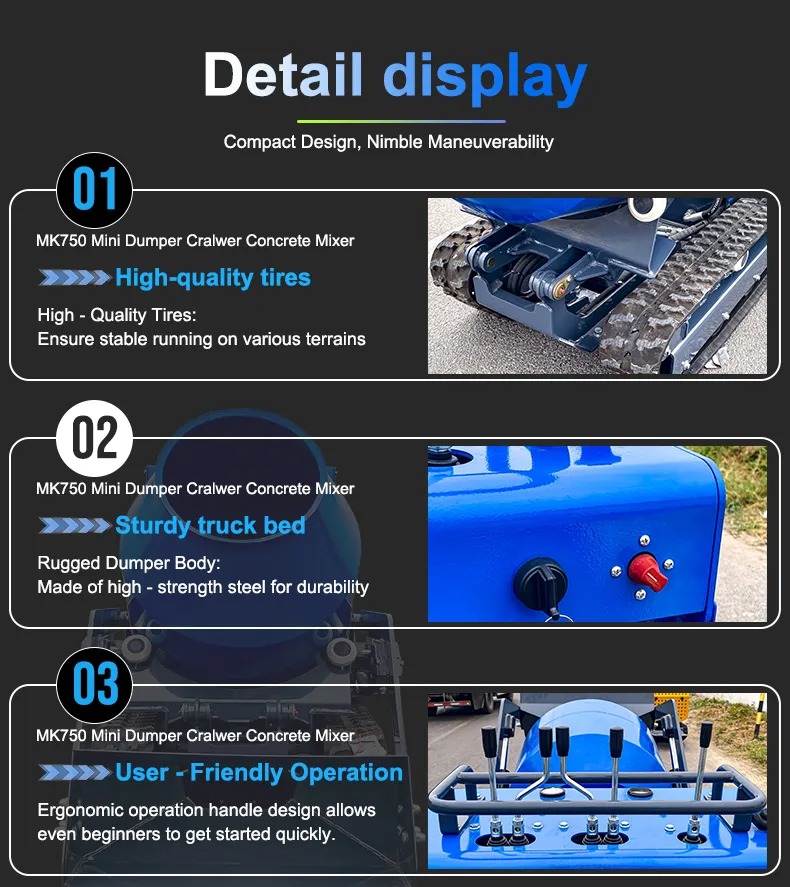

1. Excellent Mobility and Passability
   • Rubber Tracked Chassis: Features anti-slip and wear-resistant properties, causing minimal damage to road surfaces. It can easily handle 30° slopes, 200mm vertical obstacles, and 300mm wading depth, moving flexibly in complex terrain like mud, mountainous areas, and uneven ground.
   • Compact Design: Small size and short turning radius allow it to operate flexibly in narrow spaces inaccessible to large equipment.
2. Efficient and Reliable Mixing Performance
   • Forced Mixing System: The multi-blade design ensures no dead angles during mixing. It is suitable not only for ordinary concrete but also efficiently mixes dry-hard concrete, mortar, feed, and other viscous materials, offering diverse functionality.
   • Stable Hydraulic System: Responsible for the rotation of the mixing drum and the dumping action. It operates smoothly and reliably, ensuring seamless discharge.
3. User-Friendly and Easy Operation
   •  Manual Lever Control: Ergonomically designed, with a centralized and intuitive control system, allowing even beginners to get started quickly, lowering the operational barrier.
   • Sturdy Self-Dumping Hopper: Manufactured from high-strength steel, it is robust, durable, and has a long service life.

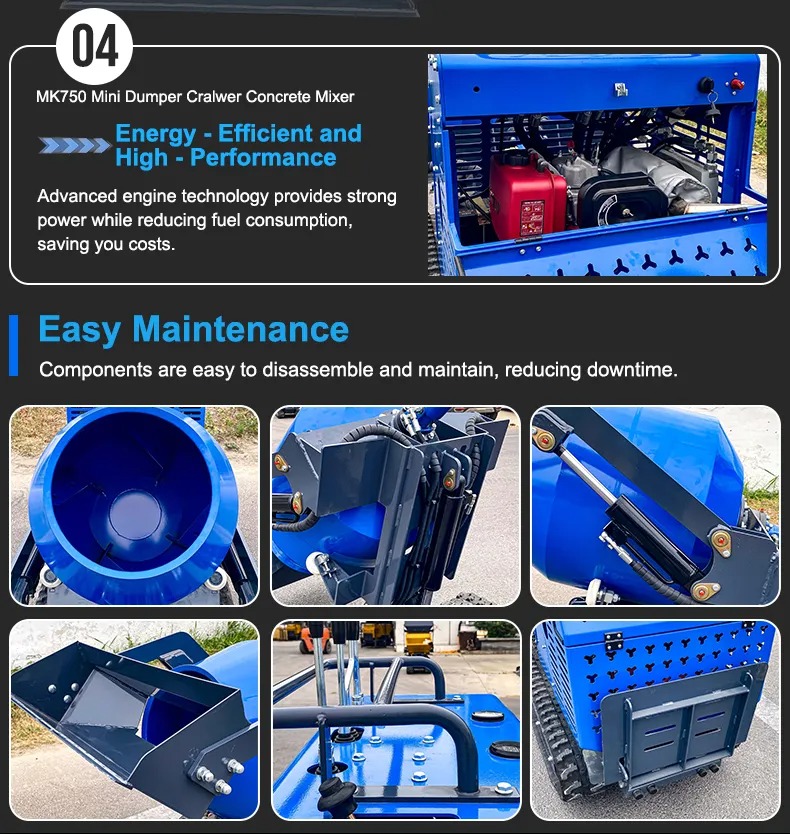

4. Energy Efficiency and Easy Maintenance
   • Brand-Name Engine: Provides stable and powerful power output while incorporating advanced technology to effectively reduce fuel consumption, resulting in low operating costs.
   • Easy Maintenance: Equipment components are reasonably designed for easy disassembly and maintenance, minimizing downtime and improving availability.

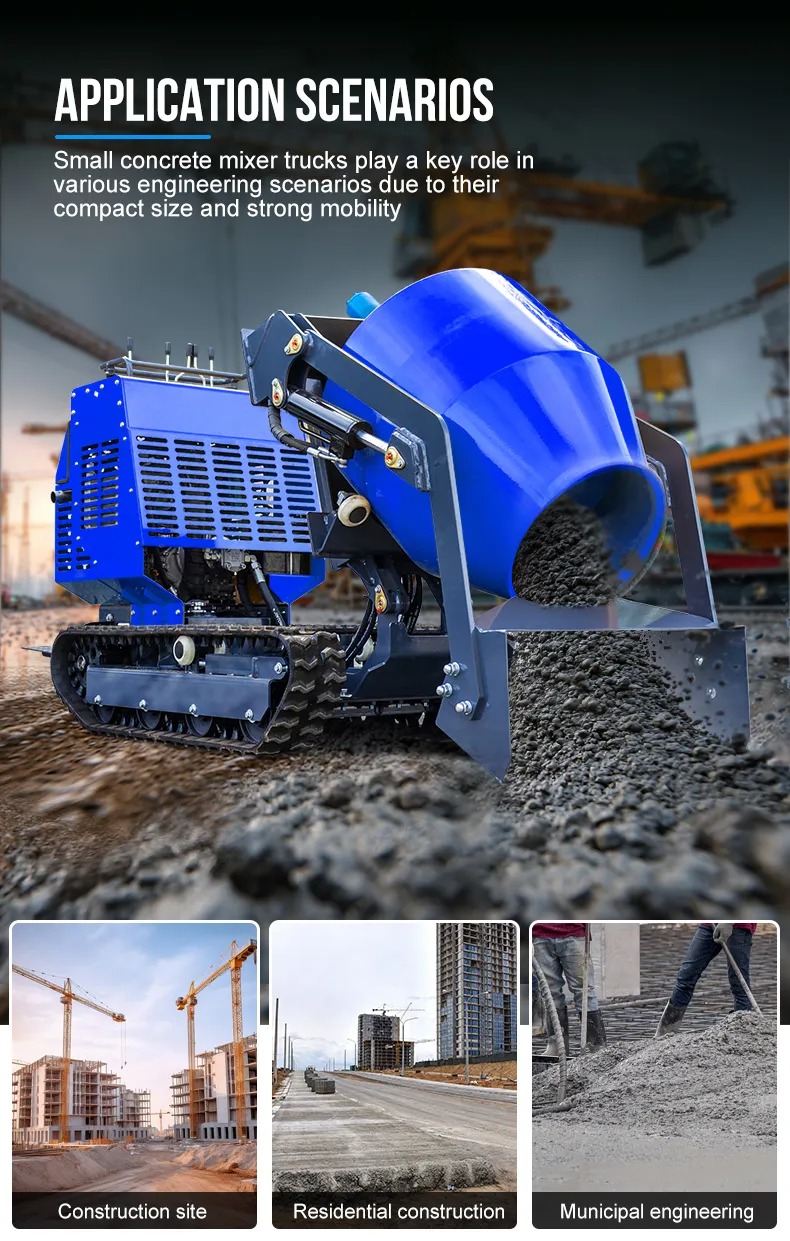

Application Scenarios

1. Construction Sites
   • Suitable for small and medium-sized projects. It can navigate around foundations, inside floors, and between material yards to complete tasks like foundation pouring, leveling, and temporary repairs.
2.  Residential Construction
   • Shows significant advantages in projects like rural villas, courtyards, and small communities. It can drive directly to the front or back of houses to supply concrete for foundations, floor slabs, stairs, etc., avoiding the issues of large mixer trucks being unable to access sites or having high costs, greatly improving construction efficiency and flexibility.
3. Municipal Engineering
   • Ideal for operations in sidewalks, green belts, and alleys, such as backfilling pipe trenches, paving curbs, and repairing pavement slabs. Its tracked design causes minimal damage to existing road surfaces and can adapt to unhardened ground, making it ideal for municipal maintenance teams.
