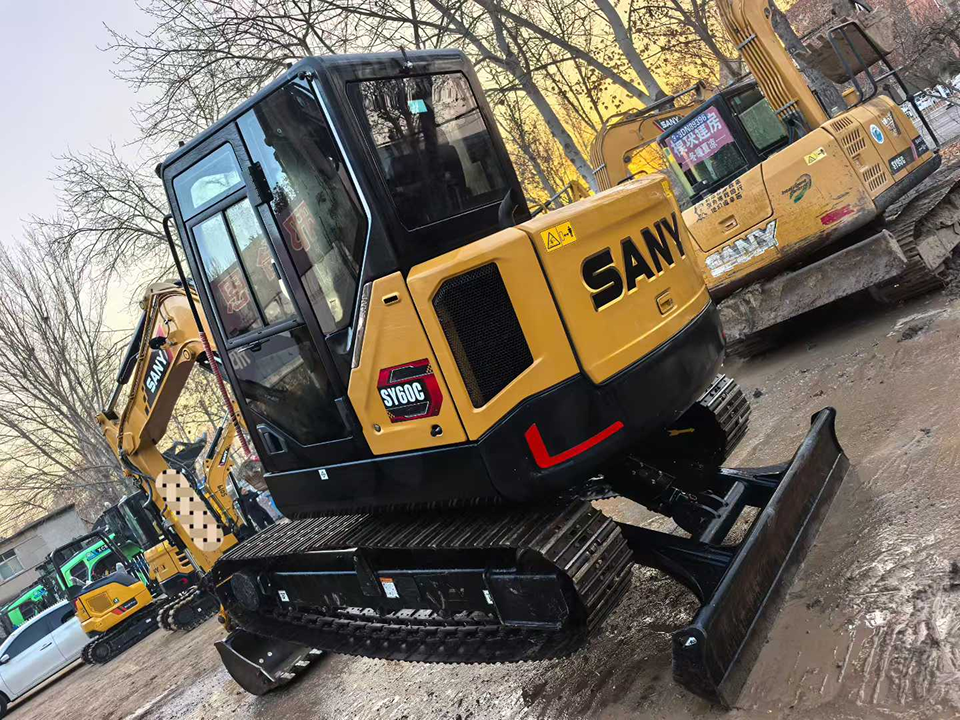

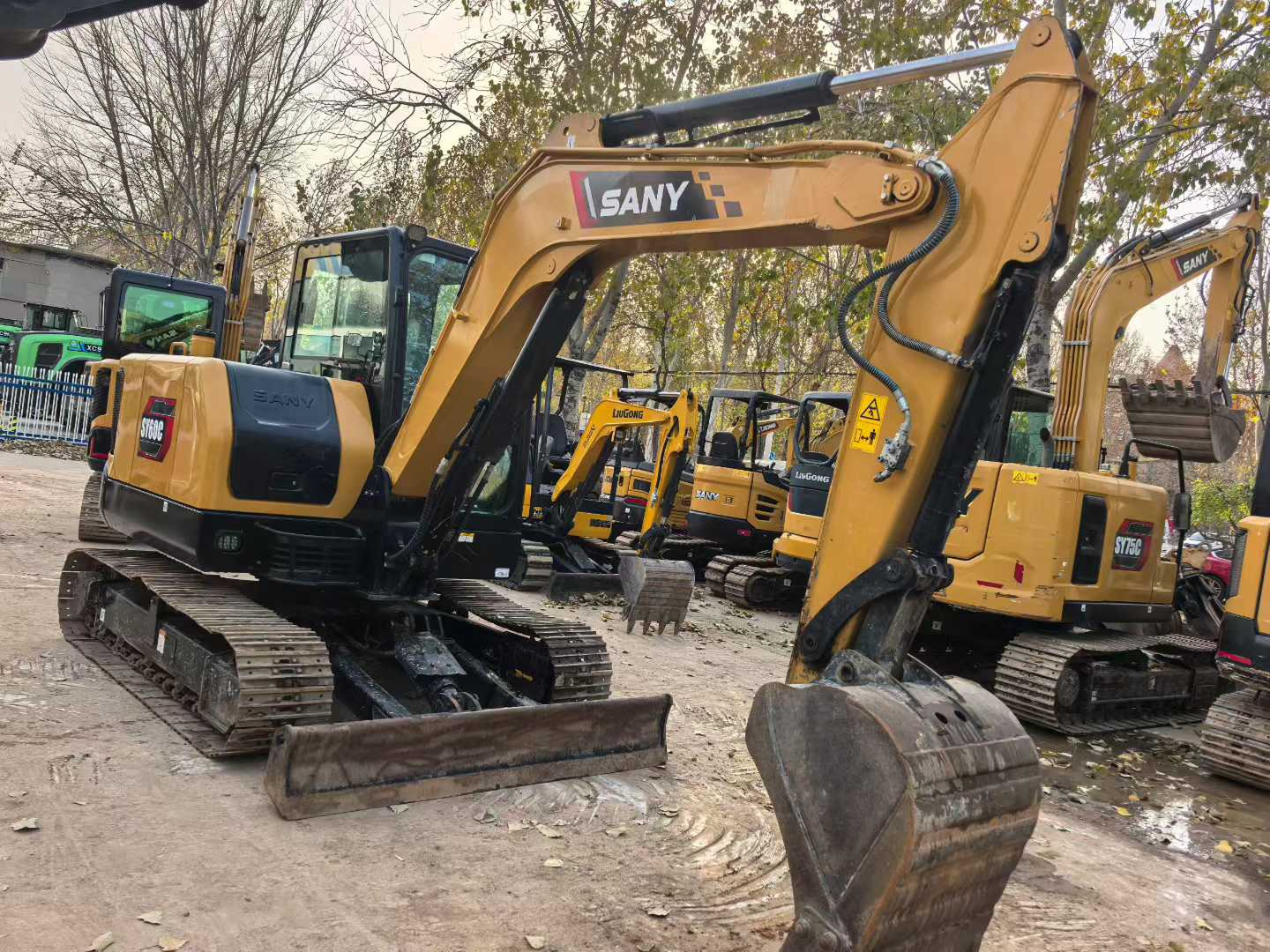

The SY60C is a 5-6T small excavator independently developed by Sany Heavy Machinery. It features “energy-saving and efficiency, durability and reliability, low maintenance costs, and intelligent operation”.
The SY60C with Euro IV engine has been comprehensively upgraded in terms of “new power”, “new design”, and “new technology”, and is suitable for construction projects such as urban development, landscaping, and farmland renovation. Its high-end power and hydraulic system configuration provides more powerful performance, and the application of multiple automotive electronic technologies makes it more comfortable and intelligent.
It belongs to the classic tonnage category of small excavators (6-ton class), balancing flexibility, power and operational capabilities, and is the main model for small-scale projects.
Sany Heavy Industry is a globally renowned manufacturer of construction machinery. Its excavators are renowned for their powerful performance, high operational efficiency, and stable quality.
Fuel-efficient, powerful, durable, easy to maintain, and high in cost-effectiveness.
| DIMENSIONS | |||
| Boom Length Stick(Arm) Length | 3000 mm 1700mm | 9’10” 5’7″ | |
| A | Transport Length | 6015 mm | 19’9″ |
| B | Transport Width | 2005 mm | 6’7″ |
| C | Transport Height | 2830 mm | 9’3″ |
| D | Upper Structure Width | 1860 mm | 6’1″ |
| E | Blade Height | 340 mm | 13″ |
| F | Track Width (standard shoe) | 400 mm | 16″ |
| G | Track Gauge | 1600 mm | 5’3″ |
| H | Ground Clearance (minimum) | 330 mm | 13″ |
| I | Tail Swing Radius | 1640 mm | 5’5″ |
| J | Track Length on Ground | 2045 mm | 6’9″ |
| K | Track Length | 2545 mm | 8’4″ |
| Specifications Main Performance | |||
| Total weight | 6000kg | Walking speed (high/low) | 4.1/2.4(km/h) |
| Bucket volume | 0.25m3 | Turning speed | 10.3rpm |
| Engine | Kubota V2607 | Steep slope climbing ability | 70%(35°) |
| Form | “Straight-line, water-cooled, four-stroke Mechanical pump, turbocharged” | Ground contact pressure | 31kpa |
| Rated power | 36kW/2000rpm | Bucket digging force | 45kN |
| Maximum torque | 206.9Nm/1600rpm | Bucket arm digging force | 33kN |
For pipelines such as water supply, gas, power cables, and communication optical cables, the trenches are dug precisely, causing minimal damage to the surrounding road surfaces.
Cleaning of road side ditches, renovation of sidewalks, excavation of small pits (such as for street lamp foundations and traffic signal base pedestals).
Excavation of tree pits for planting trees, shaping of micro-topography, and construction of flower beds.
Excavation and dredging of irrigation canals, excavation and renovation of ponds, dredging of small rivers.
Farmland renovation, slope leveling, terracing repair, road repair in fields. Livestock farm construction: Excavation of septic tanks and biogas tanks, and leveling of the livestock farm site.
● Equipment Selection Guide
● Detailed technical comparison
● One-on-one service
● One-year warranty
● Local after-sales service network, with faster response speed
● Inventory of vulnerable parts
● Remote and on-site setup and operationinstructions
● Logistics timeliness
● Ensure timely delivery
● Transport from the port to your designated destination
A: We will ship the goods within 3 to 7 days after receiving the payment. The exact time may vary depending on the distance.
A: Please inspect them on the spot when receiving the goods. If there is any damage, take photos immediately and contact us for assistance in handling the issue.
A: The engine, hydraulic system, etc. are all equipped with Liugong’s original factory products or designated brands.
A: The sales consultant will provide professional configuration suggestions based on your specific working conditions.
A: The whole machine is usually covered by warranty for 12 months or 2000 hours (whichever comes first). The specific period is as stated in the warranty manual.
A: After calling the service hotline, the engineer will usually contact and arrange the repair within 2 to 24 hours.
A: Basic operation and maintenance guidance will be provided upon delivery of the equipment, and further consultation is available afterwards.
