Product Introduction

The BF series jaw crusher bucket is a large-scale engineering attachment for excavators that integrates multiple functions such as crushing and screening. It offers comprehensive advantages including high performance, large capacity, durability, and reliability. Designed with an optimized structure and high-strength materials, it maintains stable crushing efficiency under various harsh working conditions and enables rapid on-site processing of materials like rocks and concrete. With its highly integrated workflow, it effectively replaces traditional crushing production lines, significantly reducing material transportation costs and project cycles. Additionally, the bucket is energy-efficient, easy and intuitive to operate, and equipped with multiple safety mechanisms, ensuring safe and efficient operation across applications such as engineering construction, mining, demolition, and resource recycling. It is an ideal choice for achieving green construction and enhancing project profitability.

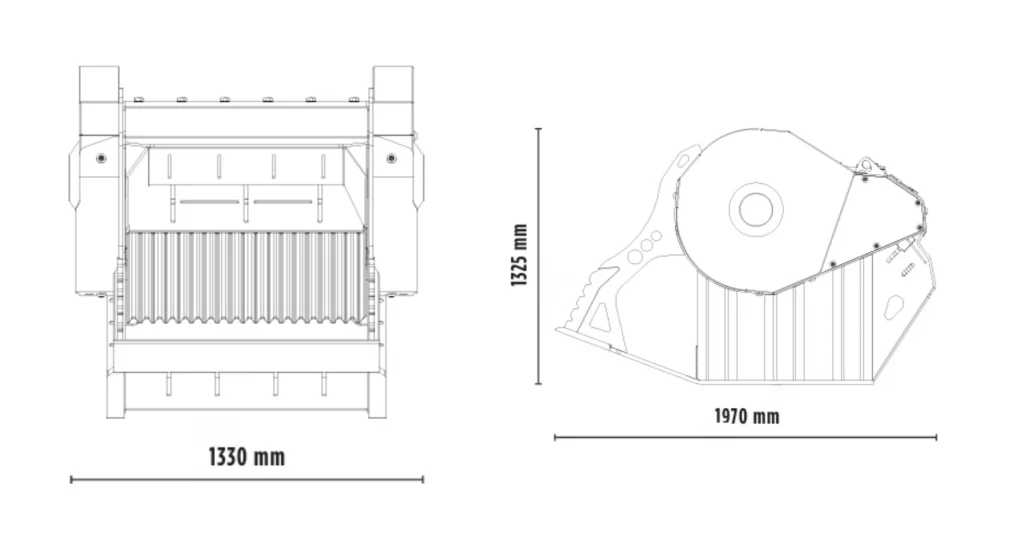

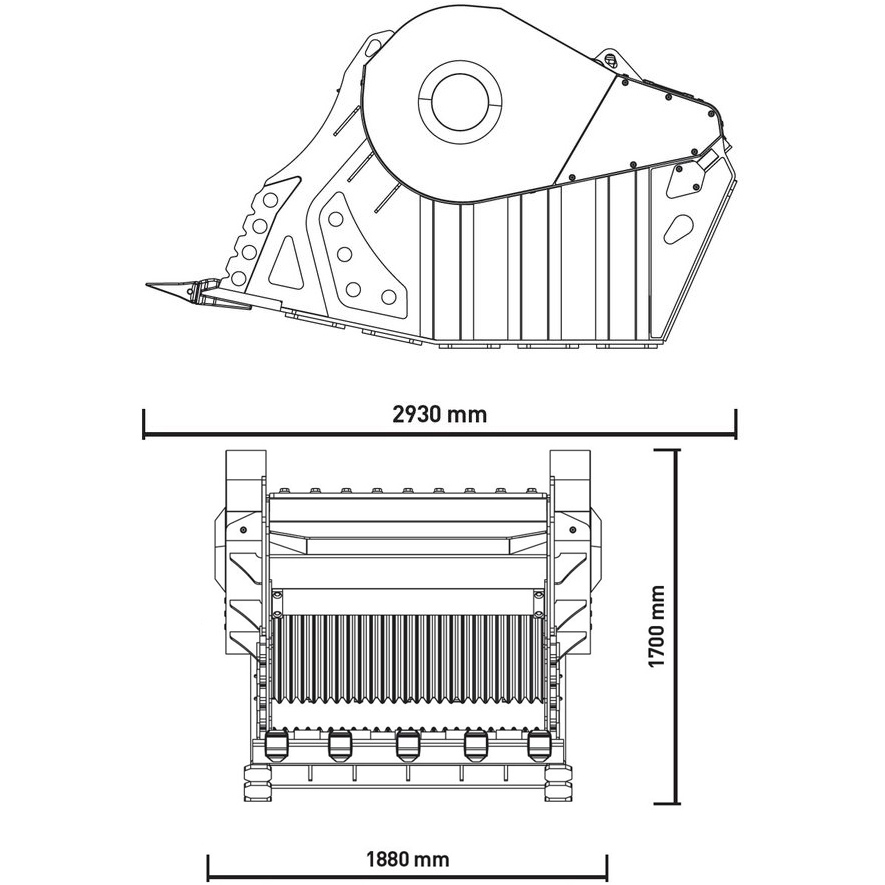

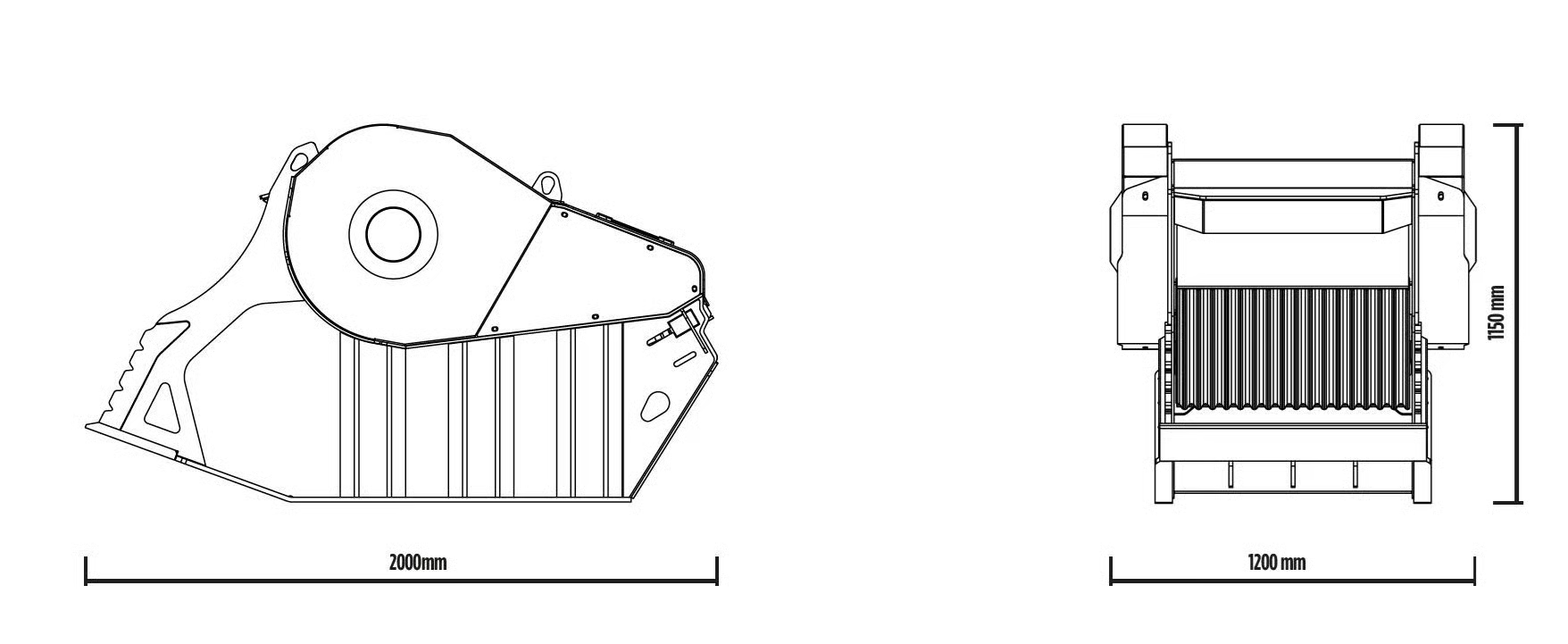

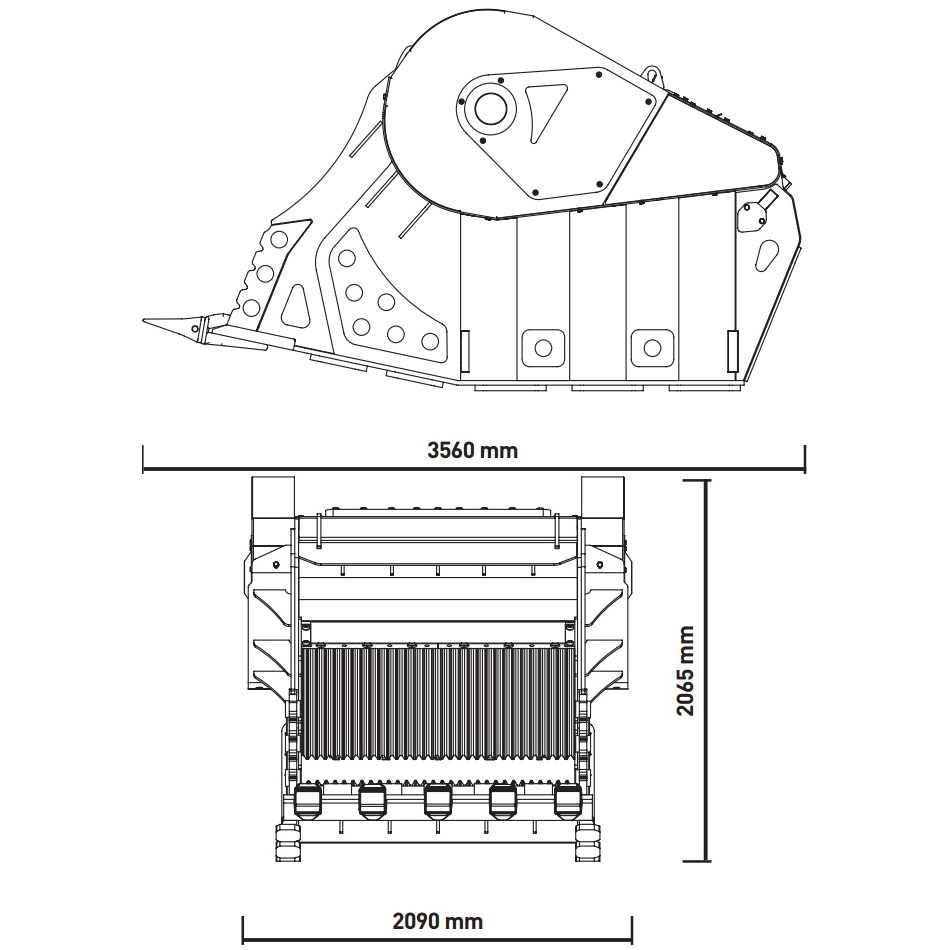

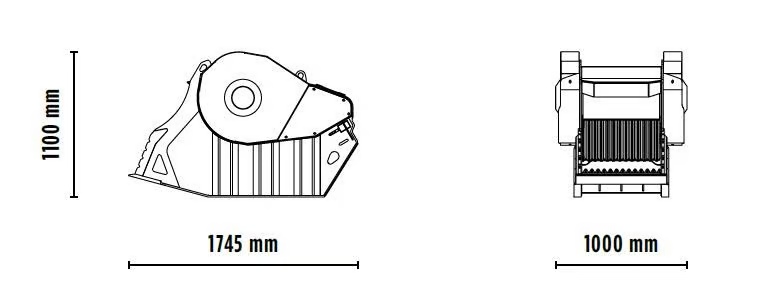

Product Specification

Product Parameter

	BF60.1	BF70.2	BF80.3	BF90.3	BF135.8	BF150.10
PARAMETER	Value	Value	Value	Value	Value	Value
​RECOMMENDED EXCAVATOR​	≥10 ≤18 ton	≥16 ≤25 ton	≥18.5 ≤29 ton	≥21 ≤32 ton	≥43 ≤80 ton	≥70 ≤100 ton
​WEIGHT​	1.65 ton	2.30 ton	3 ton	3.50 ton	7.50 ton	10.50 ton
​LOAD CAPACITY​	0.55 m³	0.65 m³	0.70 m³	0.90 m³	1.60 m³	2.30 m³
​PRESSURE​	>220 bar	>220 bar	>220 bar	>220 bar	>230 bar	>230 bar
​BACK PRESSURE​	<10 bar	<10 bar	<10 bar	<10 bar	<10 bar	<10 bar
​OIL FLOW RATE​​	>120 <180 l/min	>150 <200 l/min	>150 <220 l/min	>180 <240 l/min	>320 <380 l/min	>380 <430 l/min
​MOUTH WIDTH​	610 mm	740 mm	850 mm	910 mm	1300 mm	1450 mm
​MOUTH HEIGHT​	500 mm	510 mm	510 mm	540 mm	600 mm	700 mm
​OUTPUT ADJUSTMENT​	≥15 ≤130 mm	≥15 ≤130 mm	≥15 ≤135 mm	≥15 ≤140 mm	≥40 ≤150 mm	≥110 ≤200 mm

Product Features

1. High Performance & Energy Efficiency​
   • Utilizing premium materials, advanced manufacturing techniques, and high-efficiency hydraulic systems, it withstands heavy-duty workloads, significantly improves operational efficiency, and reduces energy consumption and operating costs.
2. Large Capacity & High Productivity​
   • Designed with a large-capacity bucket, it can pick up and crush large volumes of material in a single cycle, reducing the number of work cycles and time required, thereby boosting overall production efficiency.
3. Multi-Function Integration & Wide Applicability​
   • It combines crushing, screening, and cleaning functions in one unit, eliminating the need for frequent attachment changes. It is suitable for processing various materials like concrete, rock, and bricks, and can adapt flexibly to diverse working environments and task requirements.
4. High Durability & Long Service Life​
   • Constructed with high-strength, wear-resistant materials and a robust structural design, it exhibits excellent abrasion and impact resistance, withstands long-term heavy-duty operation, extends service life, and reduces maintenance frequency.
5. Ease of Operation & Strong Adaptability​
   • Equipped with an electronic control system, it is intuitive and simple to operate, allowing operators to become proficient with basic training. The equipment can also be adjusted or modified according to specific working conditions, offering high flexibility and adaptability.
6. Safety & Reliability​
   • Safety considerations are integral to its design, featuring multiple safety protection devices. Its stable and reliable structure maximizes the safety of operators and equipment, minimizing the risk of accidents.

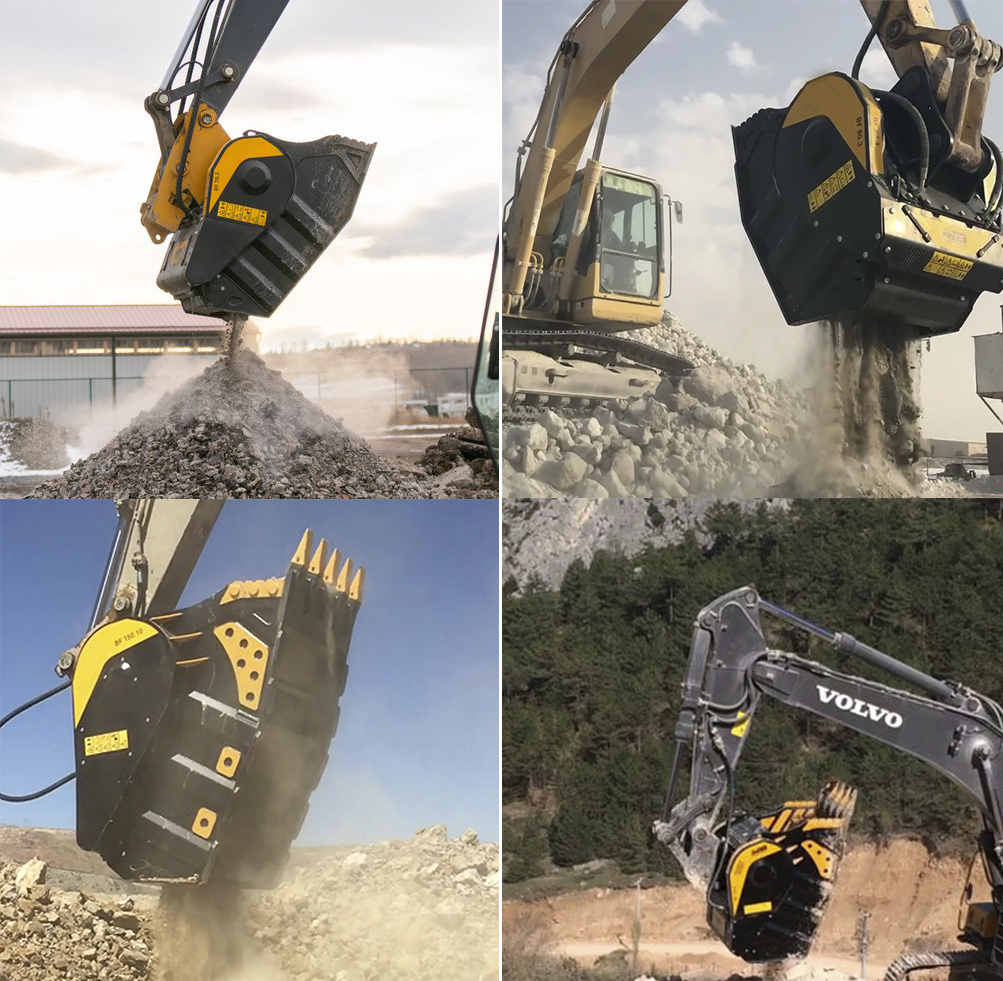

Application Scenarios
