MB-L Series High-Efficiency Jaw Crusher Bucket for Wheel Loader

MB-L Series High-Efficiency Jaw Crusher Bucket for Wheel Loader

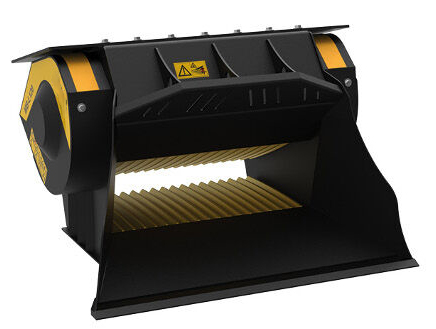

Product Introduction

The MB-L series jaw crusher bucket is designed for wheel loaders, integrating versatility, high efficiency, durability, ease of operation, and safety. It significantly enhances operational productivity while effectively reducing operating costs, making it a practical, reliable, and economical crushing solution for various engineering applications.

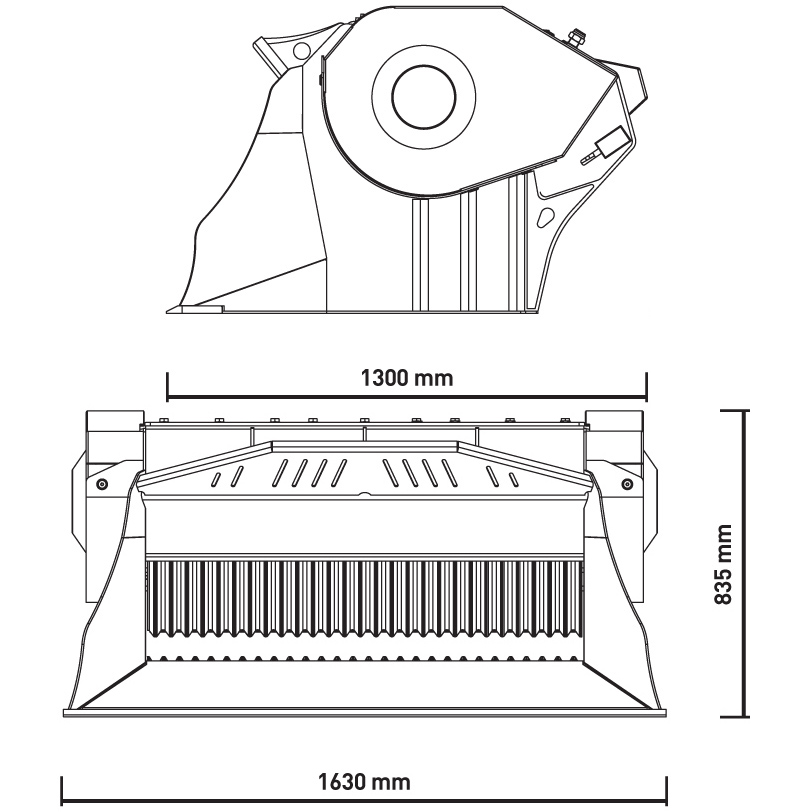

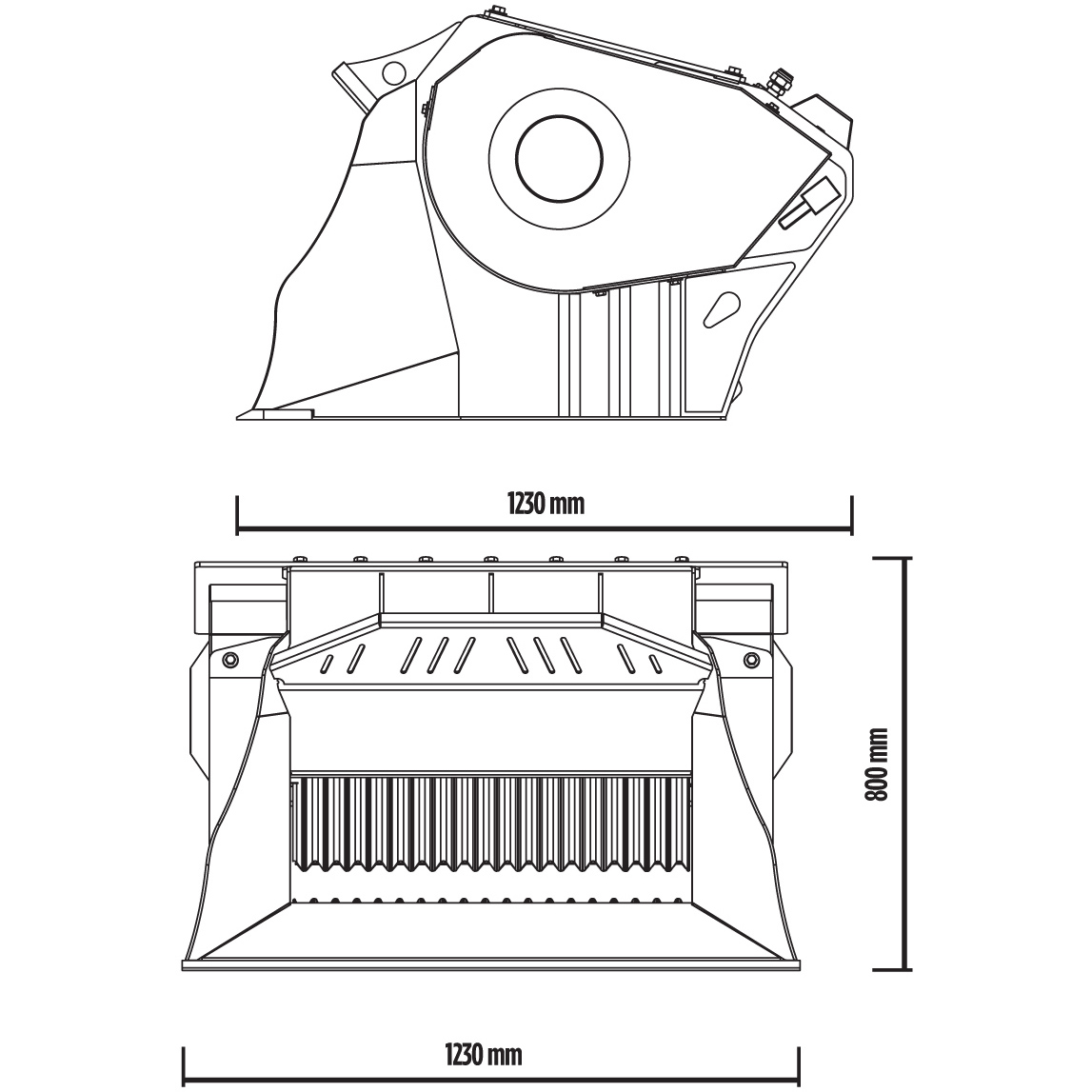

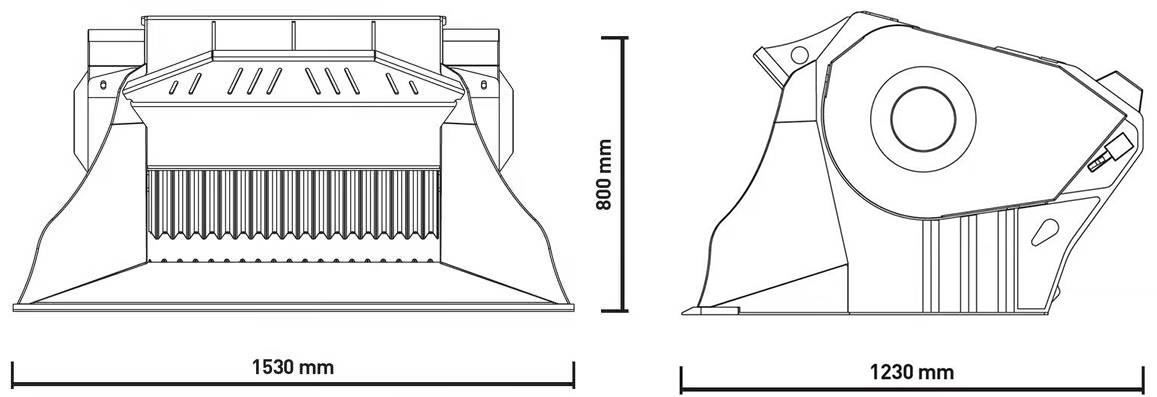

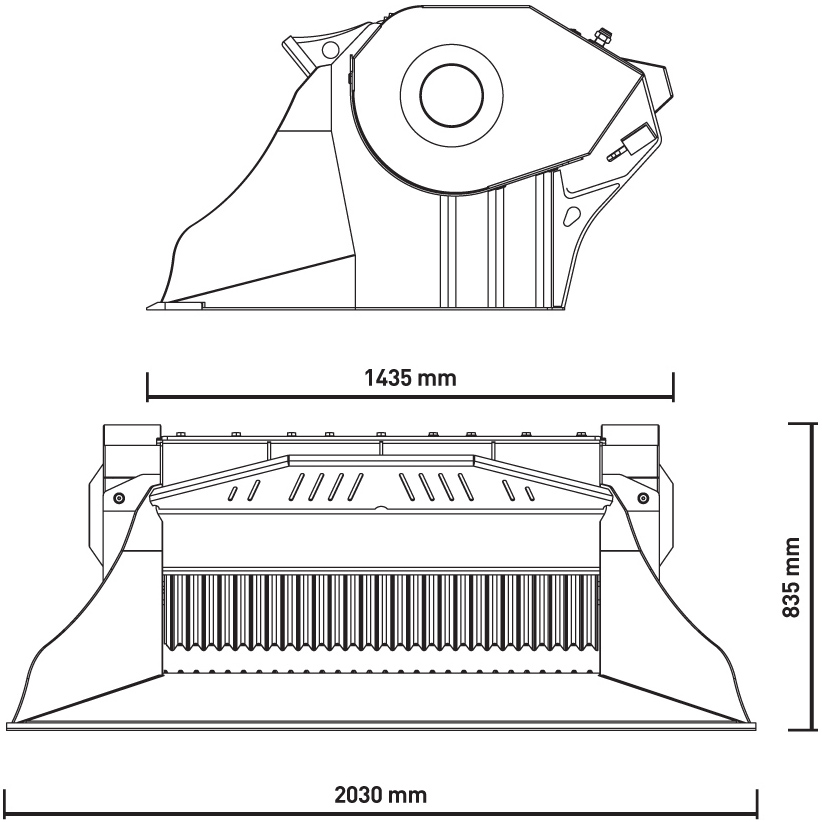

Product Specification

Product Parameter

MODEL	MB-L120	MB-L140	MB-L160	MB-L200
​RECOMMENDEND EXCAVATOR​	≥8 <15 ton	≥7.5 ≤13 ton	≥11≤16 ton	≥12≤17 ton
​RECOMMENDEND BACKHOE LOADER/LOADER​​	≥8 <15 ton	≥5 ≤10 ton	≥7≤11 ton	≥7≤12 ton
​RECOMMENDEND SKID STEER LOADER​​	≥8 <15 ton	≥4.5 ≤6 ton	≥5≤7 ton	≥6≤8 ton
​WEIGHT​	0.95 ton	0.98 ton	1.45 ton	1.50 ton
​LOAD CAPACITY​	0.19 m³	0.20 m³	0.35 m³	0.43 m³
​PRESSURE​	>200 bar	>200 bar	>200 bar	>200 bar
​BACK PRESSURE​	<10 bar	<10 bar	<10 bar	<10 bar
​OIL FLOW RATE​​	95 l/min.	98 l/min.	110 l/min.	120 l/min
​MOUTH WIDTH​	730 mm	740 mm	1100 mm	1150 mm
​MOUTH HEIGHT​	250 mm	250 mm	250 mm	260 mm
​OUTPUT ADJUSTMENT​	≥15 ≤60 mm	≥15 ≤60 mm	≥15≤60 mm	≥15≤60 mm

Product Features

1. Versatile Integration, Multi-Functionality​
   • Combines digging, crushing, screening, separation, and loading functions in a single unit, enabling the completion of multiple tasks in one go. Suitable for processing various materials such as stone, concrete, and bricks, it is widely used in construction, demolition, recycling, and other engineering scenarios.
2. High Efficiency and Powerful Performance​
   • Boasts strong crushing capability and high productivity, processing materials quickly to the required size. Equipped with an advanced hydraulic system and high-speed cutters, it ensures fast and efficient operation, easily handling large-volume processing demands.
3. Robust, Durable, and Reliable​
   • Constructed using high-strength, wear-resistant materials and precision manufacturing processes, it features a sturdy structure with excellent impact and abrasion resistance. Capable of withstanding harsh conditions and prolonged heavy-duty operation, it significantly reduces failure rates and maintenance costs while extending service life.
4. User-Friendly Operation and Precise Control​
   • Designed for user convenience, it can be easily installed on loaders and operated directly via the loader’s control system, allowing for quick mastery. The advanced hydraulic system provides precise movement control, enhancing operational accuracy, efficiency, and safety.
5. Cost-Effective and Economical​
   • Its integrated functionality reduces reliance on multiple single-purpose machines, saving equipment investment and changeover time. By minimizing the need for additional manpower, it effectively lowers overall construction costs and project timelines.
6. Safe and Eco-Friendly Design​
   • Includes multiple safety measures such as protective guards and hydraulic safety lock systems to comprehensively ensure operator safety. Incorporates low-noise design and efficient dust suppression systems to minimize noise and dust pollution, meeting environmental construction requirements.

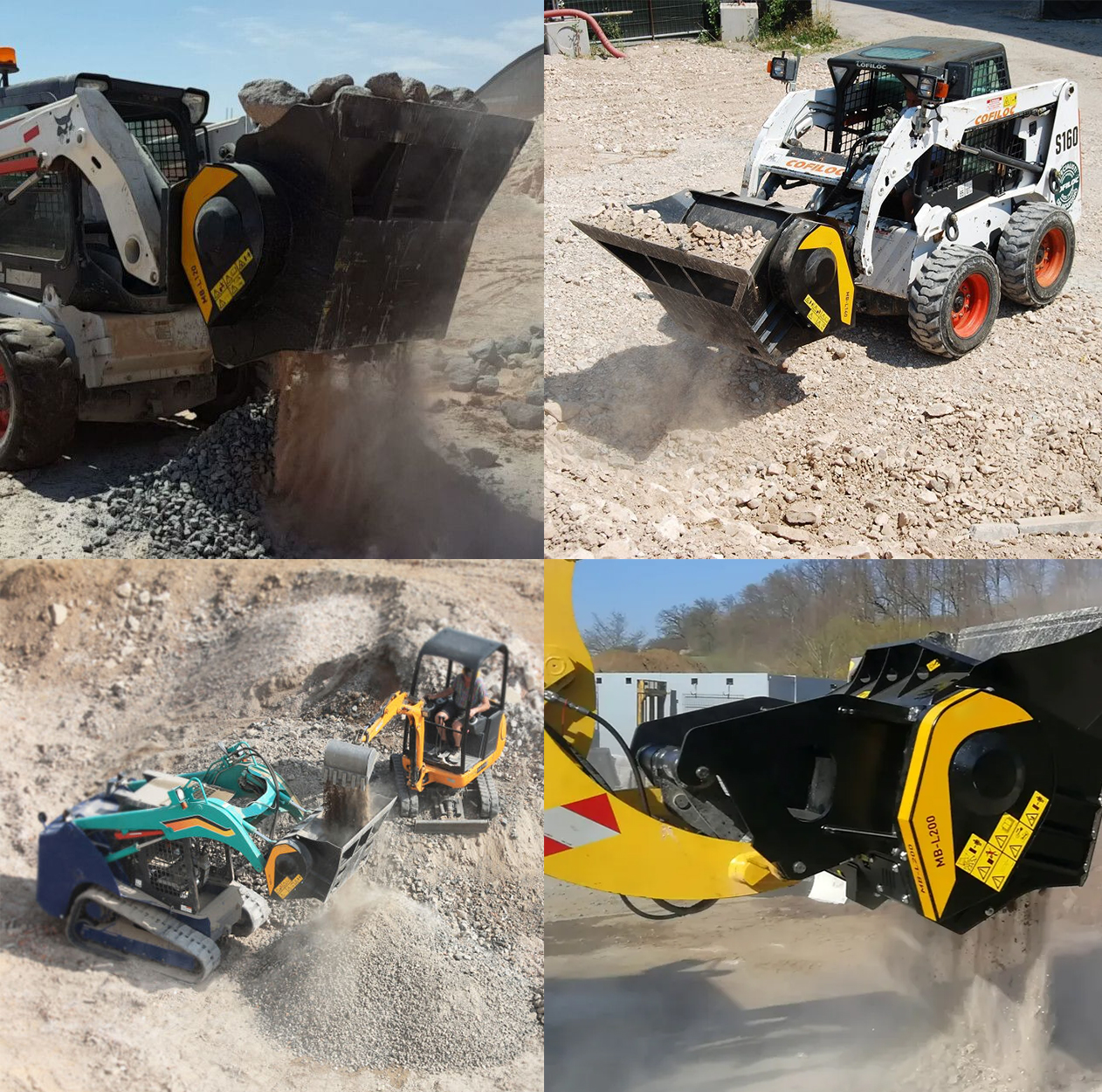

Application Scenarios
