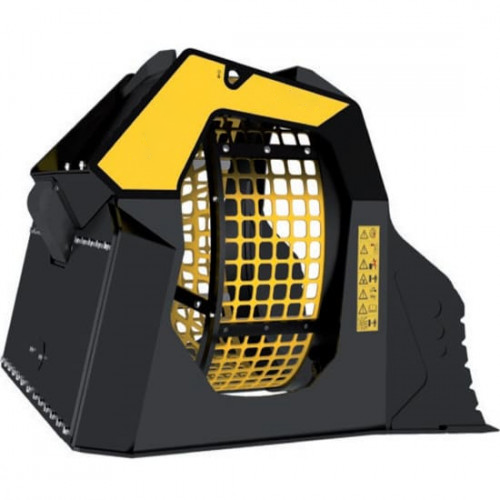

MB-LS Series Multi-Functional Screening Bucket for Wheel Loader

MB-LS Series Multi-Functional Screening Bucket for Wheel Loader

Product Introduction

MB-LS series screening buckets are designed for wheel loaders and combine versatility, efficient screening, durability, and ease of operation. Manufactured from high-strength materials, they offer precise control, safety, reliability, and easy maintenance. They can be widely adapted to the screening needs of various engineering and construction sites, effectively improving work efficiency and operational adaptability.

Product Specification

Product Parameter

Model	​MB-LS170​	​MB-LS220​
Parameter	Value	Value
​Recommended Loader​​	≥8 ton and ≤15 ton	≥15 <25 ton
​Weight​	1.45 ton	2.80 m³
​Load Capacity​	1.10 m³	2.40 m³
​Pressure​	>160 bar	>200 bar
​Back Pressure​	<40 bar	<40 bar
​Oil Flow Rate​​	80 l/min.	120 I/min.

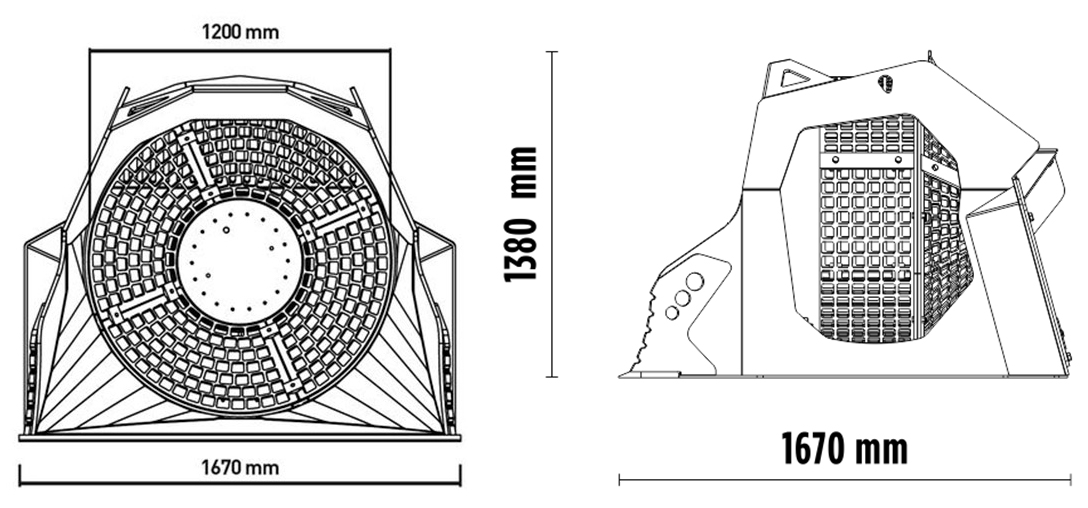

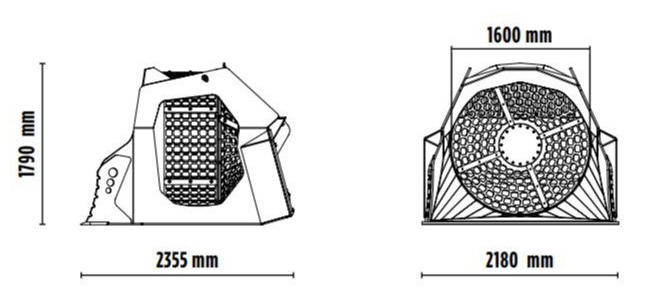

​Basket Diameter​	1200 mm	1600 mm
​Basket Depth​	900 mm	1225 mm

Product Features

1. Integrated Multi-Functionality​
   • Combines digging, loading, screening, and leveling in one attachment. Ideal for diverse tasks such as material sorting, excavation, and site preparation, significantly reducing equipment switching time and costs.
2. High-Efficiency Screening​
   • Equipped with a high-strength sieve mesh and optimized vibration system, enabling rapid separation of materials by size. The hydraulic control allows adjustable amplitude and frequency for precise output in varying working conditions.
3. Robust Structure & Longevity​
   • Constructed with wear-resistant steel and reinforced framing, resistant to impact, abrasion, and corrosion. Suitable for harsh environments like mining and demolition, ensuring extended service life with minimal maintenance.
4. User-Friendly Operation​
   • Simple integration with excavators or loaders via standard hydraulic connections. Intuitive controls enable quick adaptation by operators, reducing training requirements and enhancing workflow efficiency.
5. Enhanced Safety & Adaptability​
   • Designed with safety-oriented features such as structural stability and secure locking mechanisms. Compatible with multiple machine brands and models, offering flexibility for different job sites and requirements.
6. Low Maintenance & Easy Servicing​
   • Modular design and accessible components simplify part replacement and upkeep, minimizing downtime and operational costs.

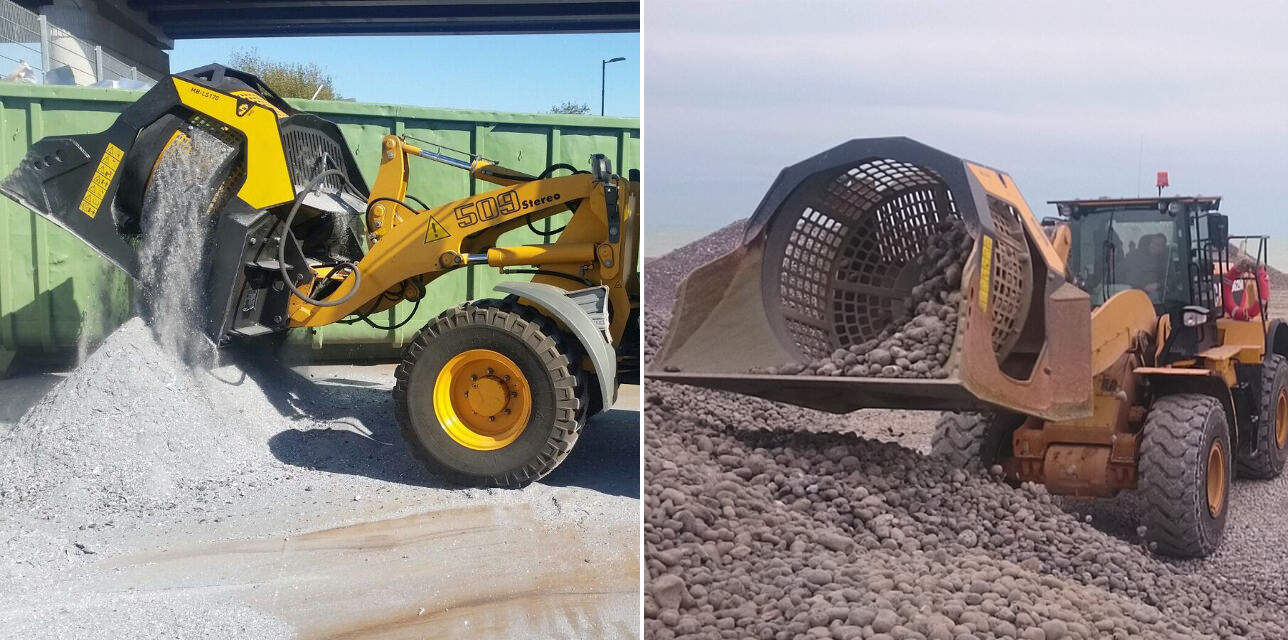

Application Scenarios
