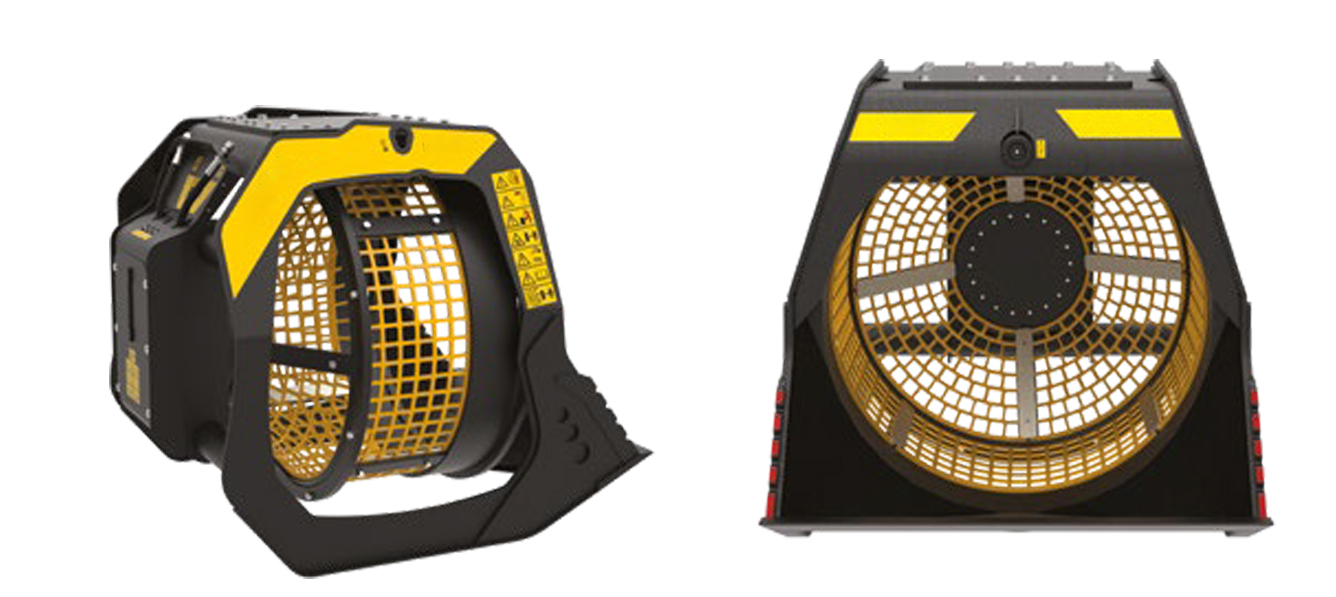

MB-S Series Multi-Functional Screening Bucket for Excavators

MB-S Series Multi-Functional Screening Bucket for Excavators

Product Introduction

MB-S series screening buckets are used for hydraulic excavators. They have the advantages of versatility, good screening effect, durable structure, easy operation and strong compatibility. They are suitable for work needs in fields such as construction, mining and environmental protection.

Product Specification

Product Parameter

Model	Compatible Host Machine Weight (tons)	Bucket Width (mm)	Screen Area (㎡)	Number of Screen Layers	Screen Mesh Size (Adjustable/Replaceable)	Approximate Output (m³/h)

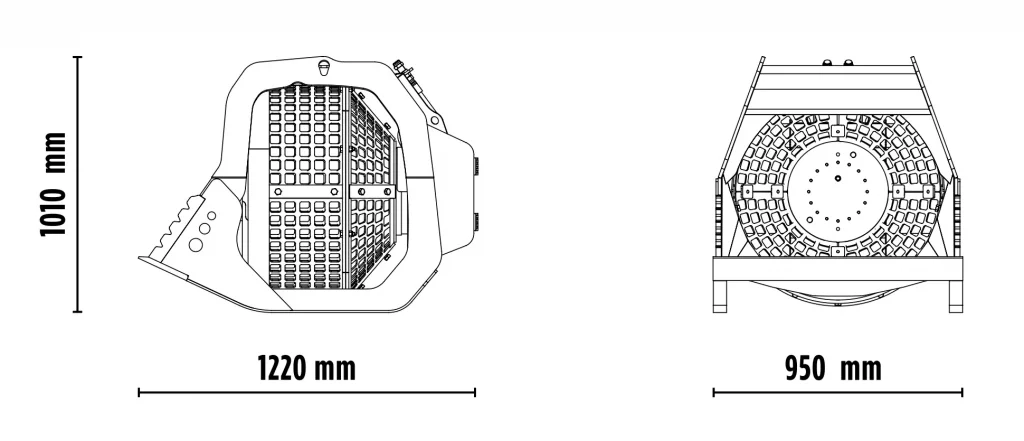

​MB-S10​	1.5 – 4	1050	0.5	2	0-15 / 15-30 mm	20

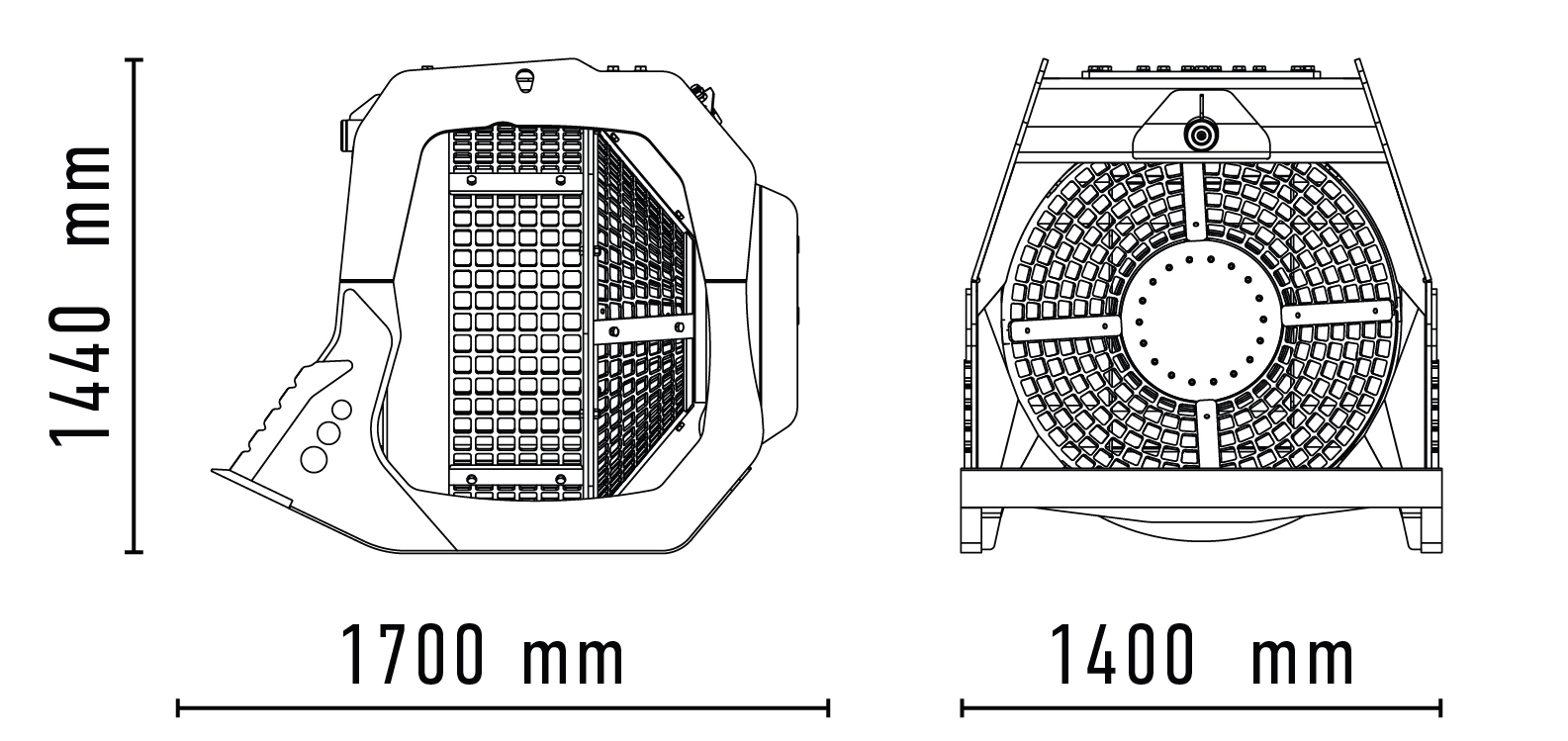

​MB-S14​	3.5 – 9	1400	1	2	0-15 / 15-30 mm	40

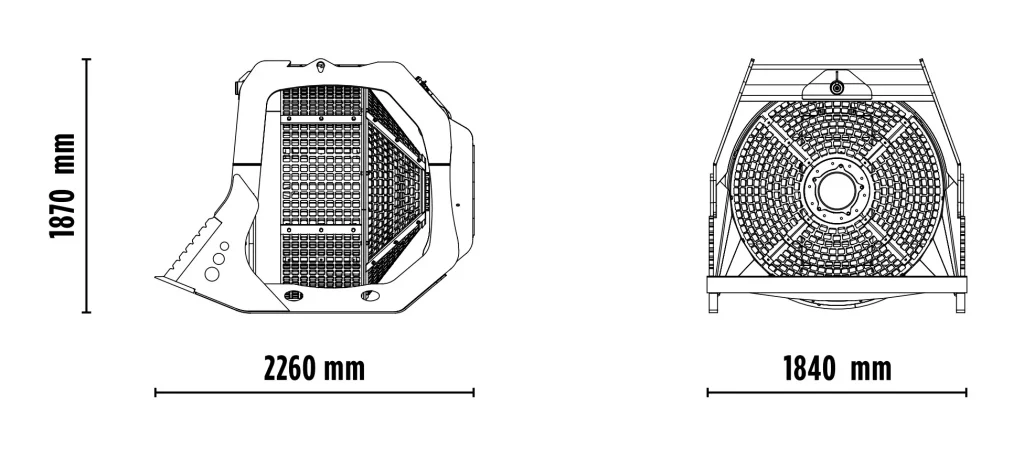

​MB-S18​	8-14	1800	1.5	2	0-15 / 15-30 mm	60

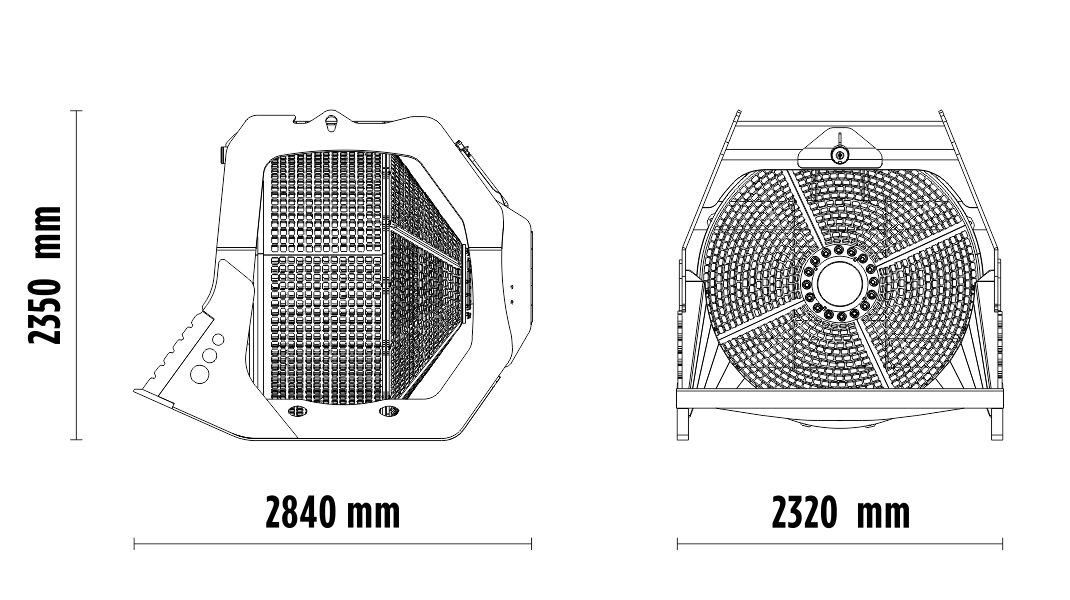

​MB-S23​	14 – 20	2300	2.3	2	0-15 / 15-30 mm	90

Product Features

1. Versatile and Integrated Functionality​
   • Combines digging, loading, and screening functions in one unit. It can simultaneously separate impurities during operation, significantly improving work efficiency.
2. Precise and Effective Screening​
   • Utilizes professionally designed screening plates to efficiently separate materials of different particle sizes. Its self-cleaning feature ensures continuous and efficient screening performance.
3. Robust Structure and Long Service Life​
   • Manufactured from high-strength steel, it offers excellent wear resistance, corrosion resistance, and impact resistance. Its stable structure ensures a long operational lifespan.
4. Easy Operation and Flexible Control​
   • Simple to install and operate via the excavator’s hydraulic system, which intuitively controls bucket movements and the opening/closing of the screening plates. User-friendly design allows for quick mastery.
5. Strong Compatibility and Wide Adaptability​
   • Compatible with various brands and models of excavators. Supports customized installation to ensure optimal matching with the host machine for efficient collaborative operation.

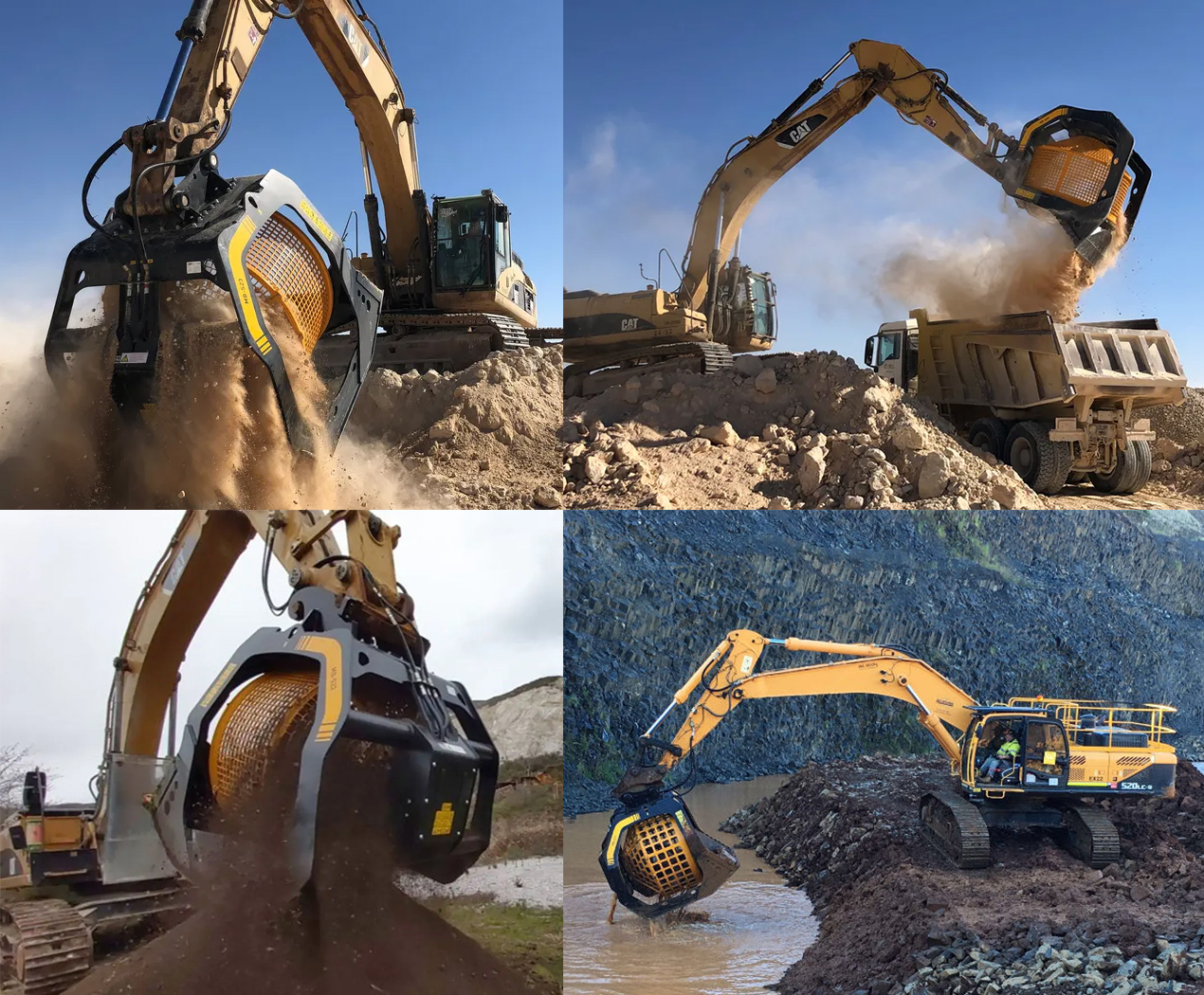

Application Scenarios
