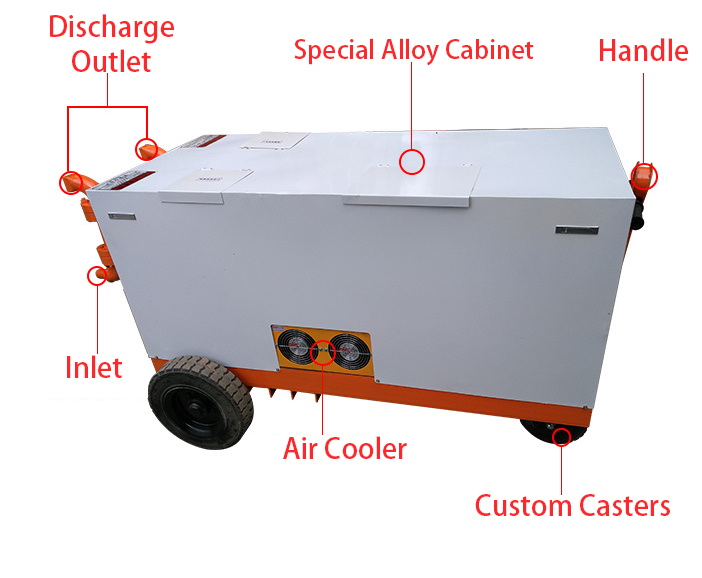

The dual-component grouting machine is a compact and mobile solution for injection grouting in construction and infrastructure projects. Designed with custom casters and a pull handle, it ensures easy maneuverability in confined spaces like tunnels, mines, and bridges. The machine supports both single and dual-component grouting processes, with adjustable pressure (0-16 MPa) and a discharge capacity of 10 m³/h. Key features include an alloy cabinet for durability, air coolers for thermal management, and specialized inlets/outlets for efficient material handling. It is ideal for sealing leaks, stabilizing soil, and reinforcing structures in applications ranging from roads and railways to dams and underground mining.
Email: [email protected]
The dual-component grouting machine is a device that utilizes pressure to inject easily solidifiable substances or mixtures into fractures or cavities of rock layers or soil, aiming to prevent leakage or reinforce foundations. This product features a compact structure, stable performance, adjustable pressure and displacement, small size, light weight, and ease of disassembly and transportation. It is capable of both single-component and two-component grouting processes. The dual-cylinder grouting machine is suitable for both single and two-component grouting techniques.
| Model: 100/150 | Discharge Capacity: 10m³/h |
| Pressure: 0-16Mpa | Motor Power: 15KW |
| Noise Power Level: 110db(A) | Discharge Outlet Diameter: 32mm |
| Suction Inlet Diameter: 38mm | Cylinder Diameter: 110mm |
| Number of Cylinders: 2 | Particle Size: Less than 2mm |
| Suction Height: 2m | Machine Weight: 500kg |
| Horizontal Conveying Distance: 600m | Vertical Conveying Distance: 120m |
| Overall Dimensions: 1700 * 900 * 1000mm | |
The dual-component grouting machine is essential for projects requiring rapid sealing, stabilization, or reinforcement with minimal downtime.
