Product Description

The KX Series Concrete Conveying Pump is a high-performance engineering equipment line designed for construction projects of all scales. It includes compact to industrial-grade units with standard, inclined, and horizontal configurations, along with customizable options such as diesel or electric drive modes for enhanced jobsite adaptability.

With a conveying capacity of 6–80 m³/h and maximum pressure of 25 MPa, the series ensures efficient and stable concrete placement. Its powerful drive system supports motors from 15 kW to 110 kW and utilizes gear or piston pumps, capable of handling aggregates up to 30 mm while achieving conveying distances of 500 m horizontally and 200 m vertically.

The compact and mobile design offers excellent on-site flexibility without compromising performance. Suitable for urban, rural, infrastructure, and industrial applications, the KX Series provides a reliable, efficient, and economical concrete conveying solution for modern construction needs.

Product Parameter

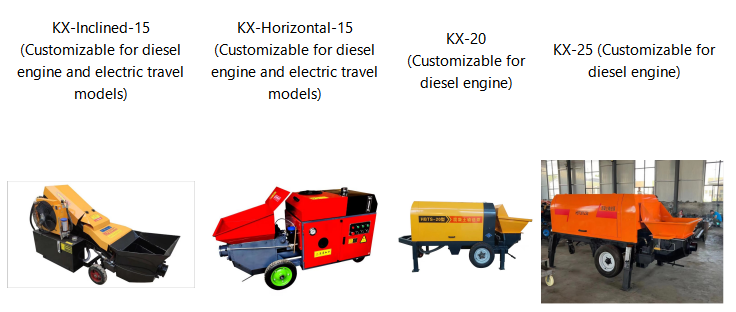

Type	KX-Inclined-15 (Customizable for diesel engine and electric travel models)	KX-Horizontal-15 (Customizable for diesel engine and electric travel models)	KX-20 (Customizable for diesel engine)	KX-25 (Customizable for diesel engine)
Theoretical Conveying Capacity (m³/h)	6-8	6-8	10-12	12-15
Aggregate Diameter (mm)	≤30	≤20	≤20	≤30
Working Pressure (MPa)	10	10	12	12
Bore * Stroke (mm)	120*680	120*380	120*650	140*850
Motor Power (kW)	15kw50(Gear type)	15kw50(Gear type)	22kw63(Gear type)	30kw80(Gear type)
Conveying Pipe Diameter (mm)	ф80-φ100	ф80-φ100	ф80-φ100	ф80-φ100
Overall Dimensions (LWH) (mm)	2000*800*1400	1900*800*1200	3000*1400*1500	3600*1400*1600
Horizontal Conveying Distance (m)	30-60	30-60	70	60-100
Conveying Height (m)	10-20	10-20	30	20-40
Total Machine Weight (kg)	400	500	1000	1500

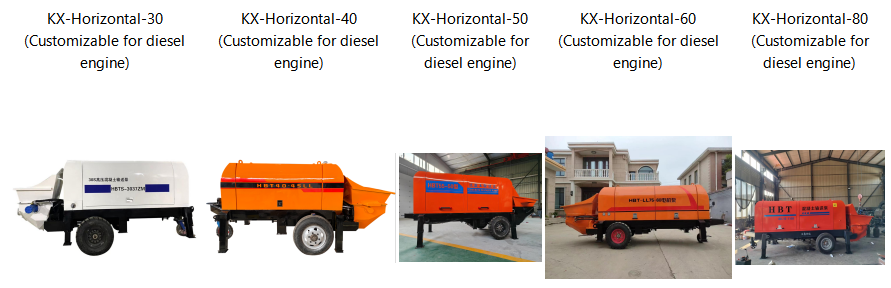

Type	KX-Horizontal-30 (Customizable for diesel engine)	KX-Horizontal-40 (Customizable for diesel engine)	KX-Horizontal-50 (Customizable for diesel engine)	KX-Horizontal-60 (Customizable for diesel engine)	KX-Horizontal-80 (Customizable for diesel engine)
Theoretical Conveying Capacity (m³/h)	15-20	20-25	25-30	35-45	50-70
Aggregate Diameter (mm)	≤30	≤30	≤30	≤30	≤30
Working Pressure (MPa)	20	20	20	22	25
Bore * Stroke (mm)	160*850	160*1000	180*1000	200*1500	230*1600
Motor Power (kW)	37kw100(Piston pump)	45kw112(Piston pump)	55kw140(Piston pump)	90kw224(Piston pump)	110kw280(Piston pump)L/S
Conveying Pipe Diameter (mm)	ф80-φ100 -125	ф80-100-φ125	ф80-100-φ125	ф100-φ125	ф100-φ125
Overall Dimensions (LWH) (mm)	3900*1500*1600	4200*1600*1600	4200*1600*1600	4800*1800*1700	5500*1800*1800
Horizontal Conveying Distance (m)	100-150	150-240	200-300	300-400	400-500
Conveying Height (m)	30-70	40-100	60-120	80-150	100-200
Total Machine Weight (kg)	1800	2000	2500	4000	5200



Product Advantages

exceptional performance adaptability and engineering versatility

meticulously calculated and optimized, delivering an ultra-long conveying a long distance of up to 500 meters horizontally and 200 meters vertically while maintaining a high working pressure of 25 MPa.

The compact body design maximizes performance output within a limited space, offering flexible mobility and quick deployment.

Applications

1. ​Urban High-Rise Building Construction​:Capable of conveying concrete to extreme heights (up to 200 meters vertically), making it ideal for skyscrapers and large commercial/residential complexes.
2. ​Rural and Small-Scale Housing Projects​:Compact and flexible models (e.g., KX-Inclined-15) adapt seamlessly to limited spaces and lower-volume demands, ensuring efficiency in decentralized construction.
3. ​Infrastructure and Tunnel Engineering​:Designed to handle long-distance horizontal conveying (up to 500 meters), enabling efficient concrete placement in tunnels, bridges, and underground structures.
4. ​Large-Scale Hydraulic and Industrial Projects:High-capacity models (e.g., KX-Horizontal-80) deliver robust performance for dams, power plants, and industrial facilities requiring continuous, high-volume concrete supply.
5. ​Complex and Restricted Worksites​:Customizable options (diesel/electric power, mobility features) allow operation in remote or challenging environments with limited access to power infrastructure.
6. ​Time-Sensitive and High-Efficiency Projects​:Rapid deployment, minimal setup time, and reliable performance ensure accelerated project timelines without compromising on quality or stability.

With its versatility, reliability, and tailored configurations, the KX series Concrete Conveying Pump serves as a critical solution for modern construction challenges across diverse environments.
