The JDY40W-7 4-ton Wheeled Excavator With powerful Performance and Energy Efficiency

The JDY40W-7 4-ton Wheeled Excavator With powerful Performance and Energy Efficiency

Product Introduction

The JDY40W-7 wheel excavator adopts a unique intelligent matching control system, which realizes a good match between the engine and the main pump, utilizes the output power of the engine to a greater extent, moves faster, and works for a long time; the newly designed shock absorption of the JDY40W-7 wheel excavator System, large-view cab, multiple noise reduction design, improve operating comfort.

Type JDY40W-7 wheeled excavator has four-wheel drive and various configurations. This wheeled excavator can meet your various needs in different working conditions, with its strong power, high speed and good maneuverability.

Product Parameters

Parameter Category	Parameter Value	Parameter Category	Parameter Value
​Model​	JDY40W-7	​Engine Model​	Xichai
​Bucket Capacity​	0.15m³	​Engine Power​	36.8KW
​Platform External Width​	1420mm	​Wheelbase​	1570mm
​Front Wheel Track​	1560mm	​Rear Wheel Track​	1500mm
​Hydraulic System Pressure​	19 MPa	​Gradeability​	30°
​Travel Speed​	10-25 km/h	​Platform Rotation Speed​	12 rpm
​Travel Mode​	Wheeled Hydraulic Travel	​Tire Model​	12-16.5
​Max. Digging Height​	4500mm	​Max. Digging Depth​	2300mm
​Dumping Height​	2600mm	​Max. Digging Radius​	4900mm
​Dozer Lift Height​	215mm	​Dozer Digging Depth​	150mm

Main Features

1. The product has beautiful appearance, high configuration, superior performance, low fuel consumption and wide working range.
2. The hydraulic system based on load-sensing technology has good operation performance and soft movements, which can prove the precise operation.
3. 360° rotation is suitable for safe operations in small spaces, such as: loosening of soil in vegetable greenhouses, greening of campuses in municipal departments, tree planting openings in orchard nurseries, crushing of concrete pavements, mixing of sand and gravel materials, and construction in narrow places.

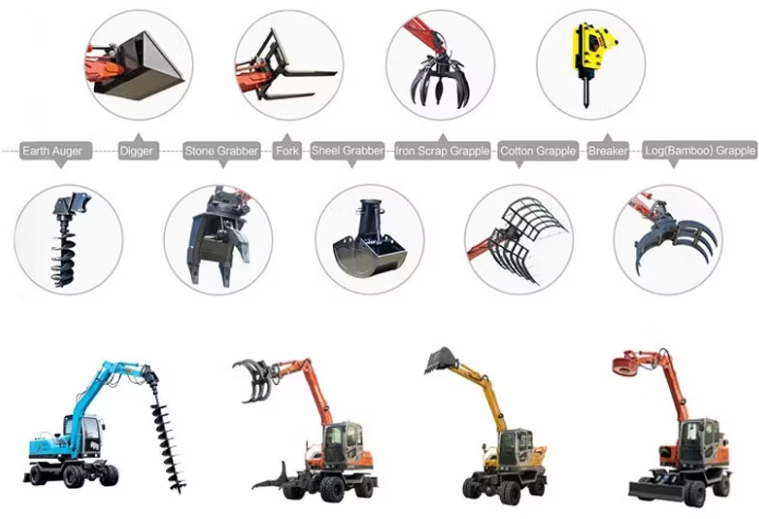

Optional Devices

We provide more optional parts to complete more kinds of work. We provide a variety of work tools such as grabs, forks, pulverizers, etc. to meet your various application needs. In addition, a variety of fixtures are provided to optimize the performance of the machine. The auxiliary hydraulic lines are arranged on the base of the boom, making the auxiliary hydraulic circuit easier to install, thereby reducing the time, parts and costs required for installing work tools.
