Product Introduction

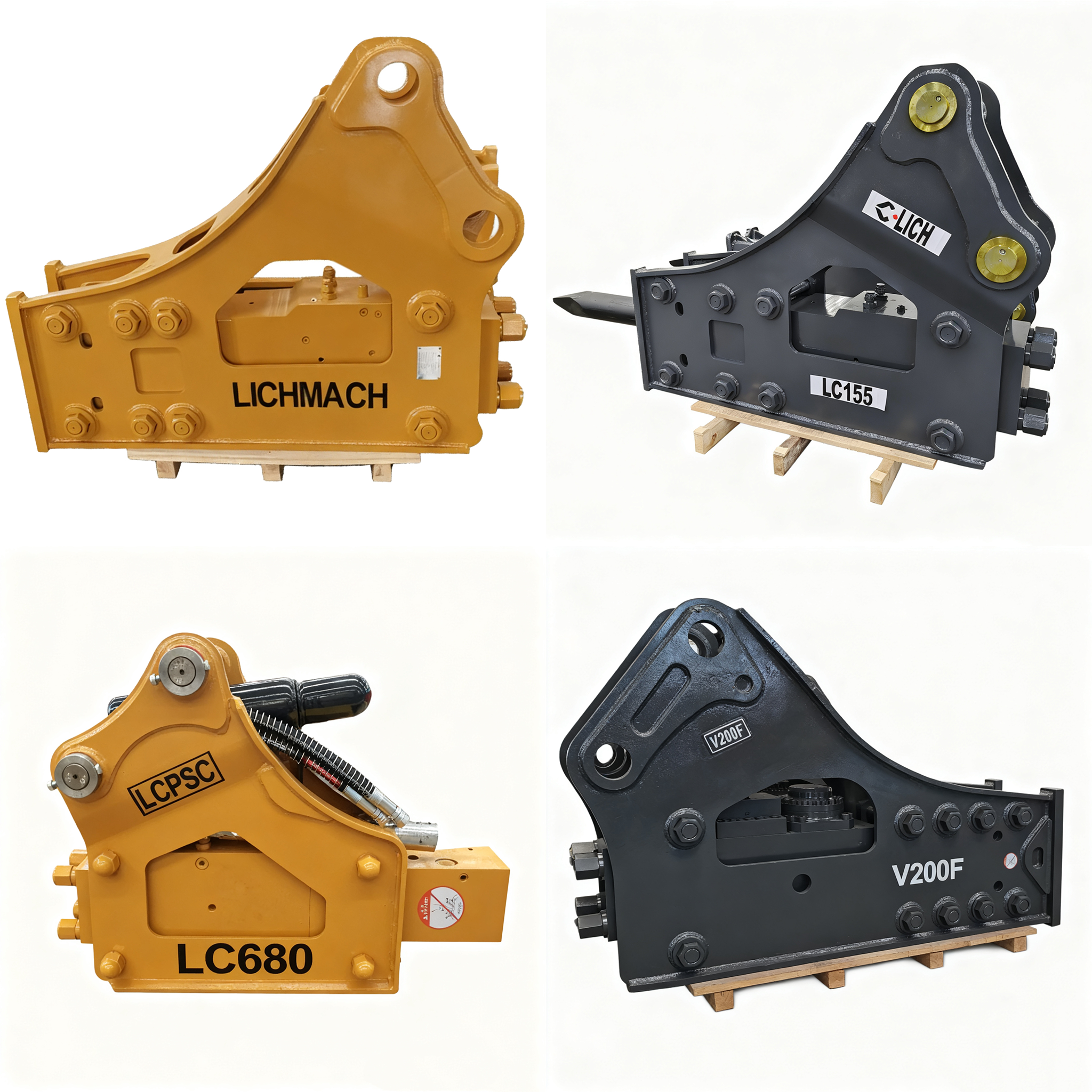

The Triangular Hydraulic Breaker, named for its unique triangular box-type structure, is an essential high-efficiency attachment for modern hydraulic excavators. Compared to traditional breakers, the triangular design offers superior housing strength, fatigue resistance, and overall stability. It effectively absorbs and disperses intense impact reaction forces, thereby protecting the excavator and extending the service life of the hammer itself.

We provide a full range of triangular hydraulic hammers, offering precise and powerful crushing solutions for various engineering needs, from urban construction to mining operations.

Product Parameter

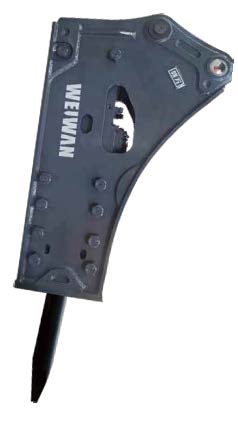

Micro and Small Triangular Breaker

Usage: Concrete crushing, secondary crushing in mines, highway repair, cement pavement crushing.

Features: High impact frequency, high impact energy, and low energy consumption .

Performance Parameter	Micro Triangular Breaker
Ltem/Moedl	WW-40	WW-45	WW-53	WW-60
Weight(kg)	79	105	166	227
Overall length(mm)	936	1071	1170	1280
Hydraulic working pressure(bar)	90~120	90~120	90~130	90~130
Hydraulic oil flow(L/min)	15~30	20~40	20~50	20~50
Setting Pressure(bar)	130	140	150	150
Impact Rate(b.p.m)	600~1100	600~1100	1100 600~1100	600~1100
striking energy(j)	204	280	406	722
Hose diameter(inch)	1/2	1/2	1/2	1/2
Chisel rod diameter(mm)	40	45	53	60
Suitable Excavator(ton)	0.5~1.2	0.8~1.5	1.5~3.5	4.5~6



Performance Parameter	Small Triangular Breaker
Ltem/Moedl	WW-68	WW-75	WW-85	WW-100	WW-125	WW-135	WW-140	WW-140F
Weight(kg)	289	410	580	841	1337	1671	1977	2177
Overall length(mm)	1398	1677	1777	1997	2230	2287	2307	2307
Hydraulic working pressure(bar)	900~130	120~150	130~160	150~180	160~180	160~180	160~220	160~220
Hydraulic oil flow(L/min)	40~60	50~90	60~100	80~110	90~120	100~150	120~180	120~180
Setting Pressure(bar)	160	180	190	200	210	210	210	210
Impact Rate(b.p.m)	500~990	980	360~690	350~700	350~580	350~500	350~450	350~750
striking energy(j)	1016	1835	2055	3102	6190	6190	6485	6977
Hose diameter(inch)	1/2	1/2	3/4	3/4	1	1	1	1
Chisel rod diameter(mm)	68	75	85	100	125	135	140	140
Suitable Excavator(ton)	4.5~6	6~8.5	7~11	10~15	14~18	18~22	20~24	20~27

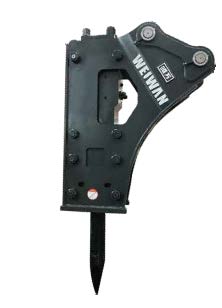

Medium Triangular Breaker

Usage: Cleaning steel ladles and slag, dismantling furnaces, and dismantling equipment foundations.

Features: Efficient crushing capacity and flexibility.



Performance Parameter	Medium Triangular Breaker
Ltem/Moedl	WW-150	WW-155	WW-155F	WW-165	WW-175	WW-175L
Weight(kg)	2448	2739	2787	3217	3757	4257
Overall length(mm)	2607	2700	2700	2977	3220	3350
Hydraulic working pressure(bar)	170~190	180~230	180~230	200~240	210~240	210~240
Hydraulic oil flow(L/min)	130~190	180~240	180~240	190~260	200~250	200~250
Setting Pressure(bar)	230	250	250	260	270	290
Impact Rate(b.p.m)	280~400	200~300	200-400	150~300	120~200	120~200
striking energy(j)	9380	10930	11977	13200	15500	16507
Hose diameter(inch)	1¼	1¼	1¼	1¼	1¼	1¼
Chisel rod diameter(mm)	150	155	155	165	175	175
Suitable Excavator(ton)	24~27	24~33	27~33	33~36	35~38	36~42

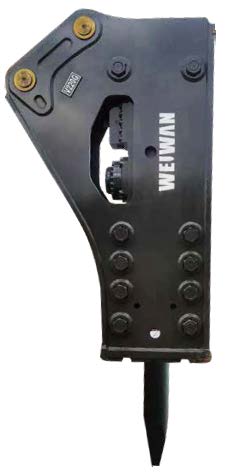

Large and Super Large Triangular Breaker

Usage: Non explosive mining, urban rock foundation excavation,highway bridge demolition, concrete pile crushing.

Features: tremendous power with small impact to the surrounding environment,precise control and efficient energy conversion.

Performance Parameter	Large Triangular Breaker
Ltem/Moedl	WW-185	WW-190	WW-195	WW-200	WW-205	WW-210
Weight(kg)	4307	4986	5400	6388	6780	7017
Overall length(mm)	3327	3537	3627	3837	3847	3917
Hydraulic working pressure(bar)	220~260	240~280	260~300	260~300	260~300	260~300
Hydraulic oil flow(L/min)	220~280	240~280	250-320	260~340	280~360	280~360
Setting Pressure(bar)	300	300	320	320	330	330
Impact Rate(b.p.m)	120~180	110~160	100~140	100~140	100~140	100~140
striking energy(j)	22380	24280	25490	29700	32260	35670
Hose diameter(inch)	1¼	1¼	1¼	1¼	1¼	1½
Chisel rod diameter(mm)	185	190	195	200	205	210
Suitable Excavator(ton)	37~50	40~50	45~55	48~60	52~60	55~65



Performance Parameter	Super Large Triangular Breaker
Ltem/Moedl	WW-220	WW-220L	WW-230	WW-240	WW-260
Weight(kg)	7137	7520	8909	92200	10888
Overall length(mm)	4047	4177	4227	4257	4877
Hydraulic working pressure(bar)	260~300	260~300	260~300	260~300	260~300
Hydraulic oil flow(L/min)	280~360	300~430	330~430	330~430	420~550
Setting Pressure(bar)	330	340	340	340	350
Impact Rate(b.p.m)	100~140	100~140	90~130	90~130	90~130
striking energy(j)	37280	47000	49800	59800	62000
Hose diameter(inch)	1½	1½	1½	1½	1½
Chisel rod diameter(mm)	220	220	220	220	220
Suitable Excavator(ton)	60~65	65~100	70~100	70~120	90~150

Application Scenarios

Municipal garden construction:Old concrete structures transformation and renovation.

New countryside construction:Demolition of old buildings and reinforced concrete crushing.

Transportation infrastructure construction:Railway and highway construction.

Other application areas:Ice and permafrost breaking and Sand vibration.
