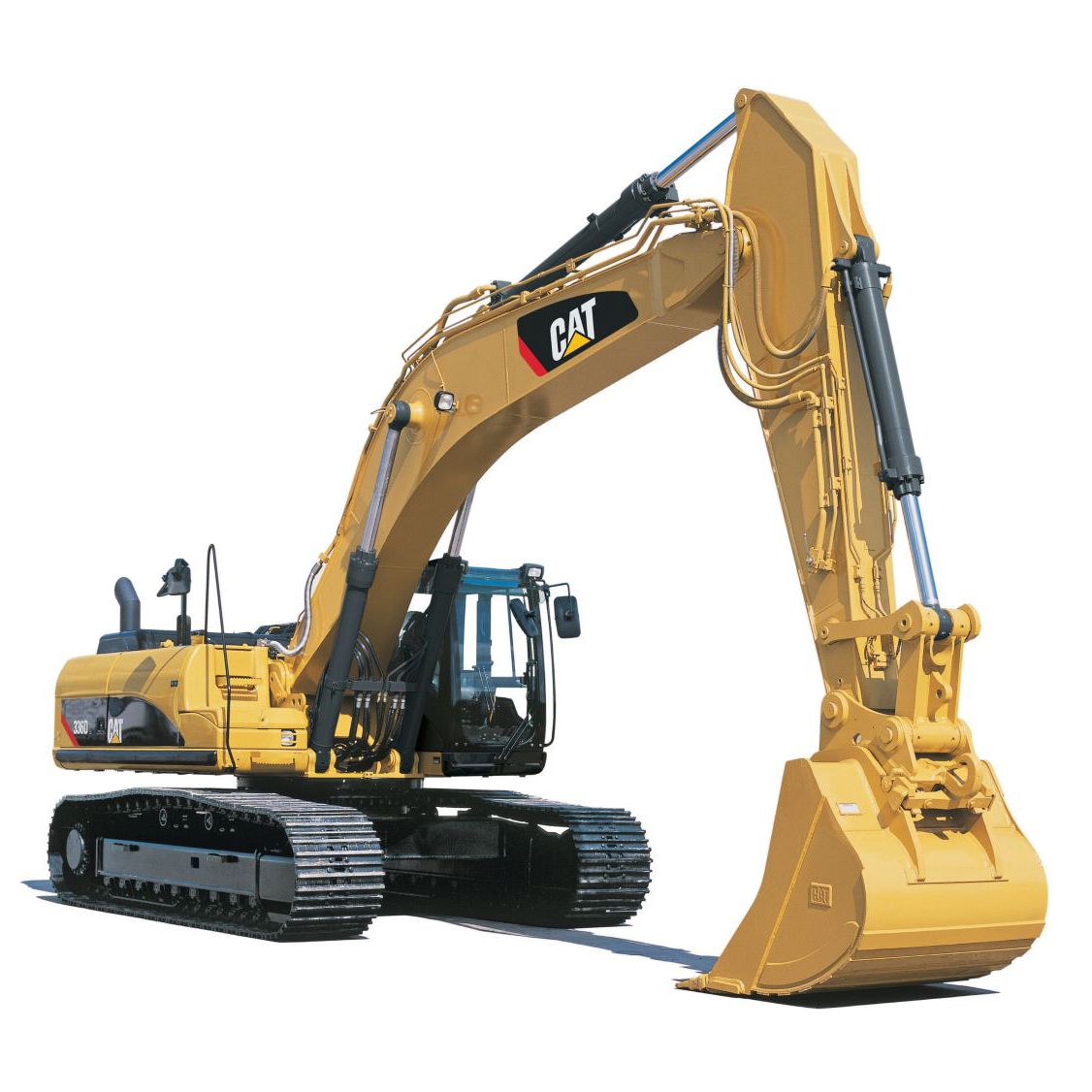

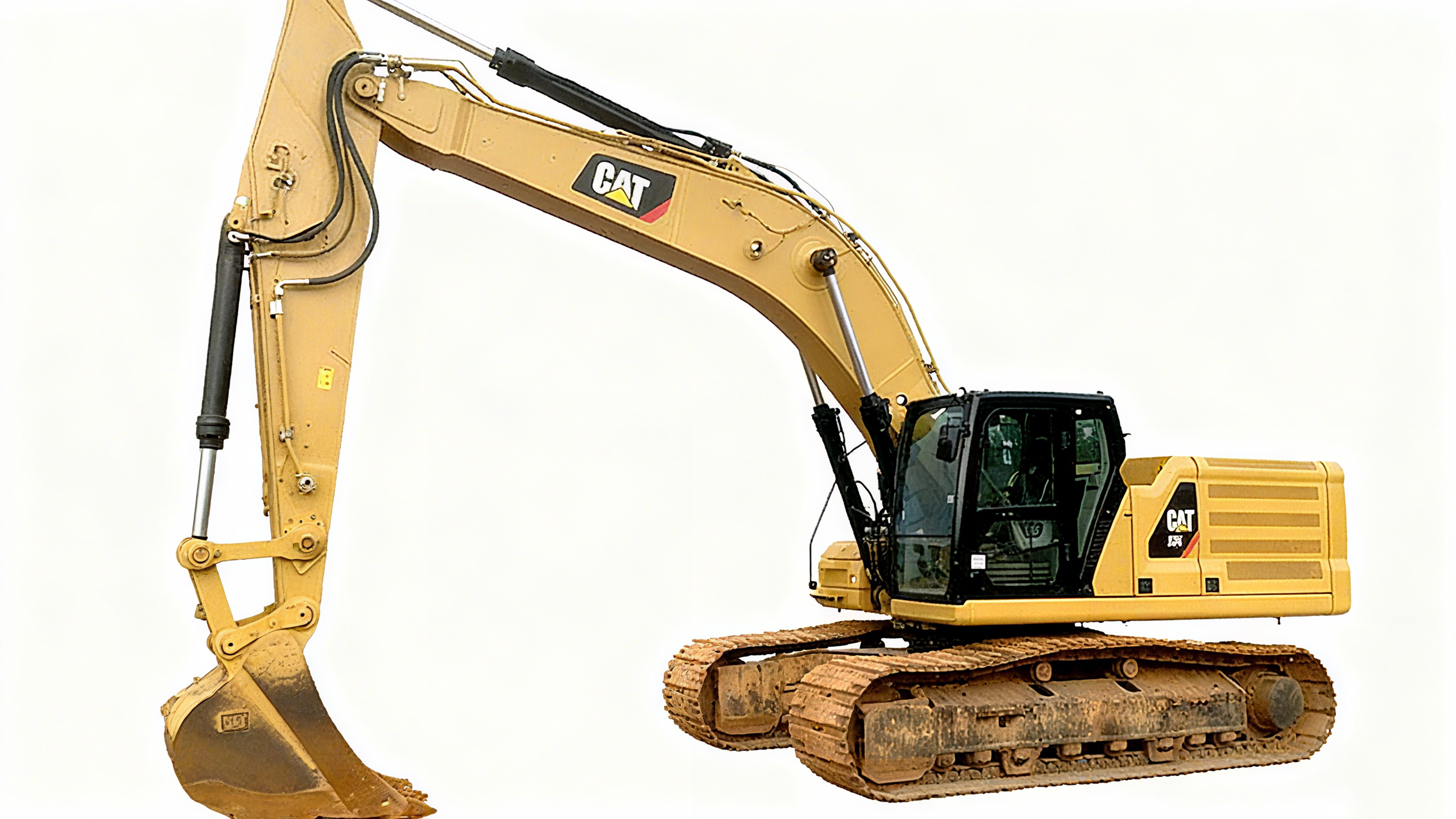

Used Caterpillar 336D Hydraulic Excavator

Used Caterpillar 336D Hydraulic Excavator

Product Introduction

This used Caterpillar 336D hydraulic excavator with excellent performance and well-maintained condition combines powerful work efficiency, outstanding stability, and wide applicability, making it an ideal choice for various earthmoving, excavation, and demolition projects.

Product Parameter

​Basic Information​	​Model/Specification​	CAT 336D/36-ton Class Crawler Excavator
	Power Type	Diesel
	Manufacturer	Domestic (China)
	Bucket Type	Backhoe
	Tonnage (ton)	36
	Operating Weight (kg)	36900
	Bucket Capacity (m³)	2.2
​Performance​	Swing Speed (rpm)	8.84
	Swing Torque (Nm)	143000
	Travel Speed (km/h)	4.7
	Bucket Digging Force (kN)	209
	Arm Digging Force (kN)	166
	Max. Drawbar Pull (kN)	302.5
	Max. Digging Reach (mm)	11090
	Max. Digging Depth (mm)	7550
	Max. Digging Height (mm)	10340
	Max. Dumping Height (mm)	7050
	Max. Vertical Digging Depth (mm)	5790
​Power System​	Engine Model	C7.1 TTA
	Rated Power (kW/rpm)	225 / 2000
	Displacement (L)	7.01
	Bore × Stroke (mm)	105 x 135
	Emission Standard	China IV
​Hydraulic System​	Main Pump Max. Flow (l/min)	560
	Working Hydraulic Pressure (Mpa)	35
	Travel Hydraulic Pressure (Mpa)	35
	Swing Hydraulic Pressure (Mpa)	29.4
​Fluid Capacities​	Fuel Tank (L)	600
	Hydraulic Oil Tank (L)	161
	Total Hydraulic System (L)	373
	Engine Oil Capacity (L)	25
	Coolant (L)	39
​Dimensions​	Shipping Length (mm)	11170
	Shipping Width (mm)	3340
	Shipping Height (mm)	3180
	Track Length (mm)	5030
	Track Shoe Width (mm)	600
	Track Gauge (mm)	2740
	Ground Clearance (mm)	510
	Rear End Clearance (mm)	1260
	Tail Swing Radius (mm)	3530

Product Performance

1. Powerful Performance, Efficient Operation: Equipped with an original Caterpillar C7.1 engine, it boasts a high rated power of 225 kW, delivering strong power output to ensure fast and efficient digging and loading operations.
2. Reliable Performance, Robust and Durable: Featuring a reinforced structural design with high impact and compression resistance, it ensures high stability and an extended service life even under harsh working conditions.
3. Precise Control, Responsive Handling: The combination of an advanced hydraulic system and intelligent control technology enables precise mechanical movement and rapid dynamic response, significantly enhancing operational accuracy and work efficiency.
4.  Compact & Flexible, Wide Application: Despite being a 36-ton medium-large machine, its compact design and optional retractable undercarriage allow it to adapt to relatively confined workspaces, such as indoor demolition and municipal engineering, making it highly versatile.
5. Economical & Eco-friendly, Easy Maintenance:
   • Fuel Efficiency: Electronic control technology effectively reduces fuel consumption.
   • Meets Emission Standards: Complies with China IV emission standards, being energy-saving and environmentally friendly.
   • Easy Maintenance: Modular design and intelligent diagnostic systems simplify daily maintenance and troubleshooting, effectively reducing downtime.
6.  Comfortable Operation, Reduced Fatigue: The spacious cabin and comfortable seat, along with excellent operational visibility, create a low-fatigue working environment for the operator.

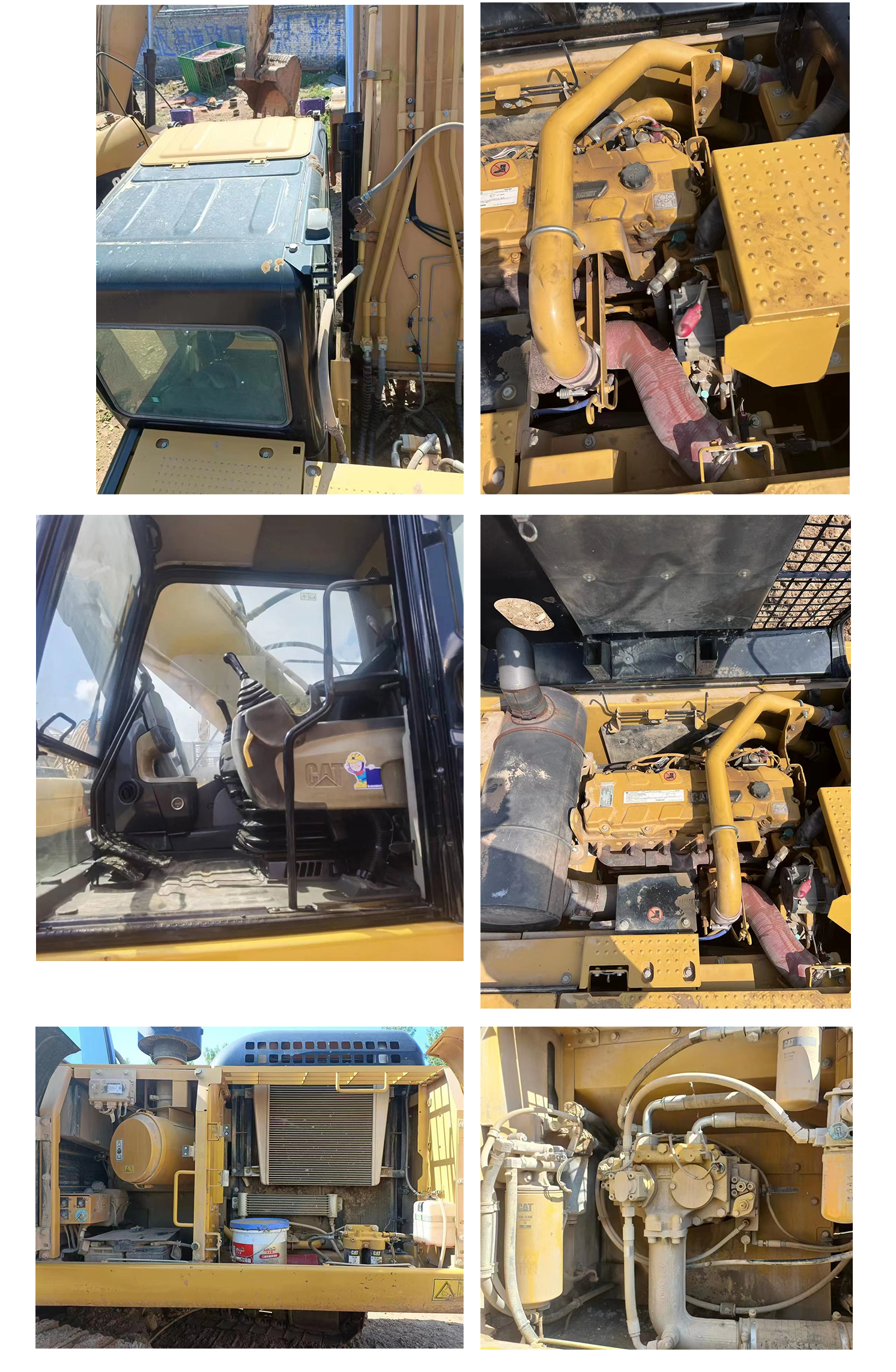

Product Current Condition

1. Original parts, good overall working condition, no oil leaks.
2. Short cumulative working hours, high equipment utilization rate.
3. Excellent technical condition, highly competitive price.
4. Comprehensive after-sales service support.
