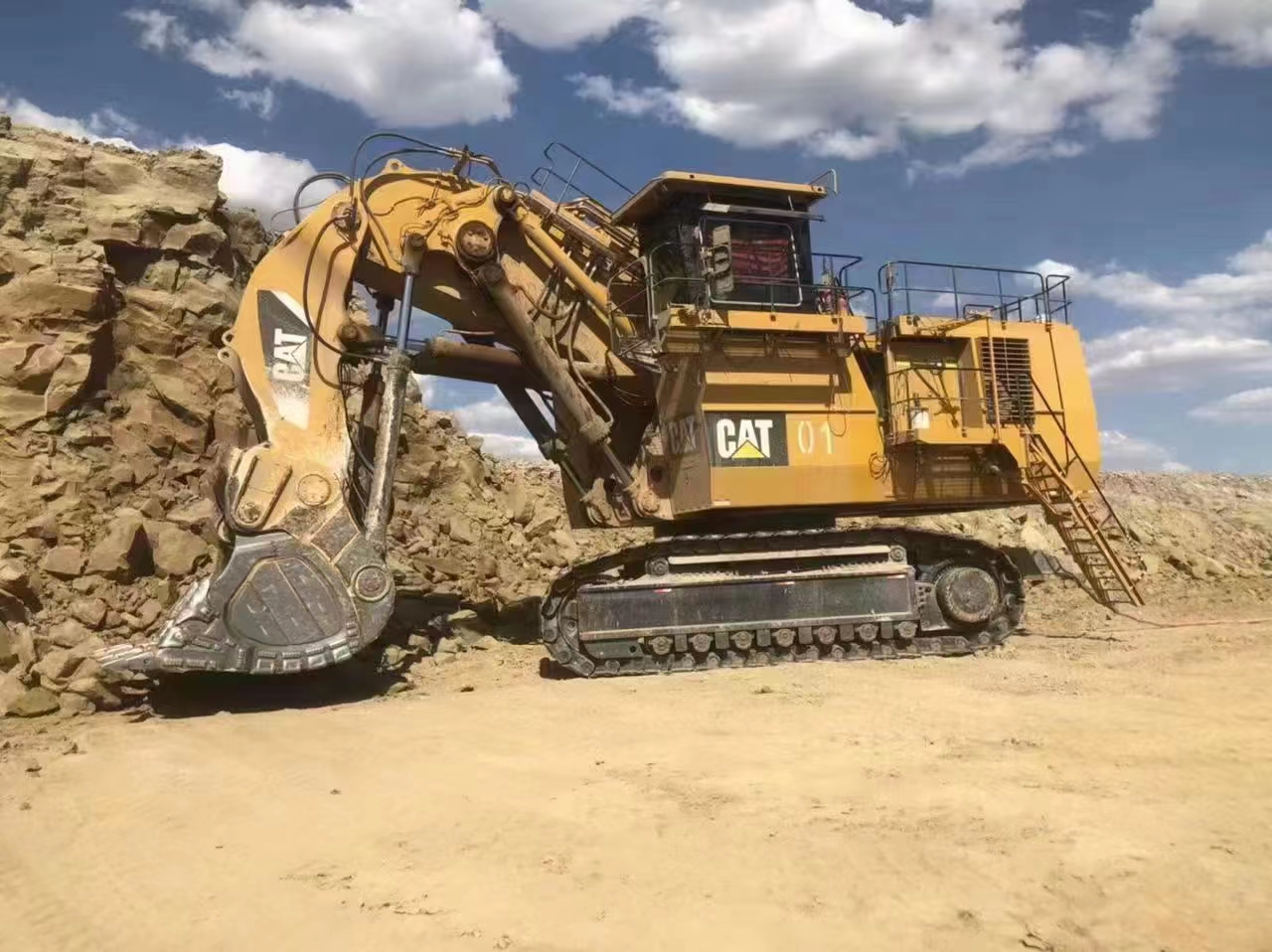

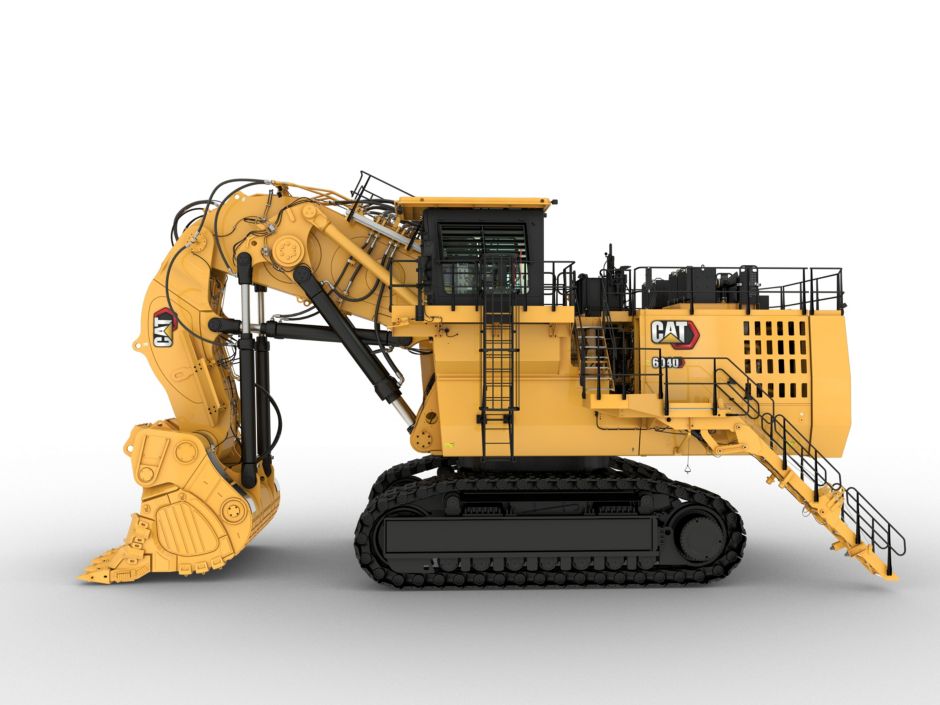

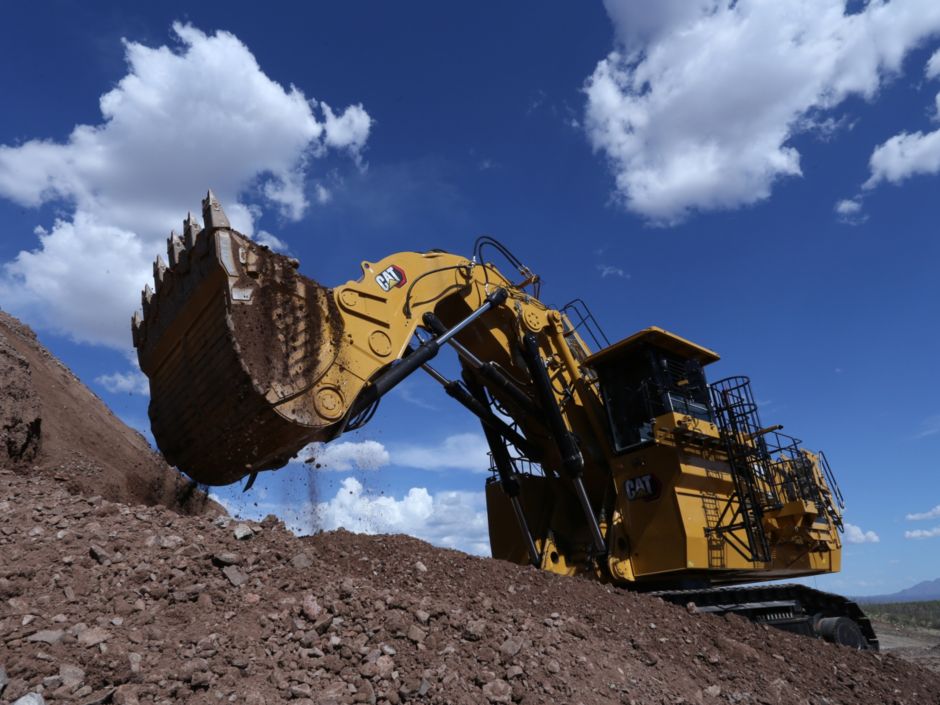

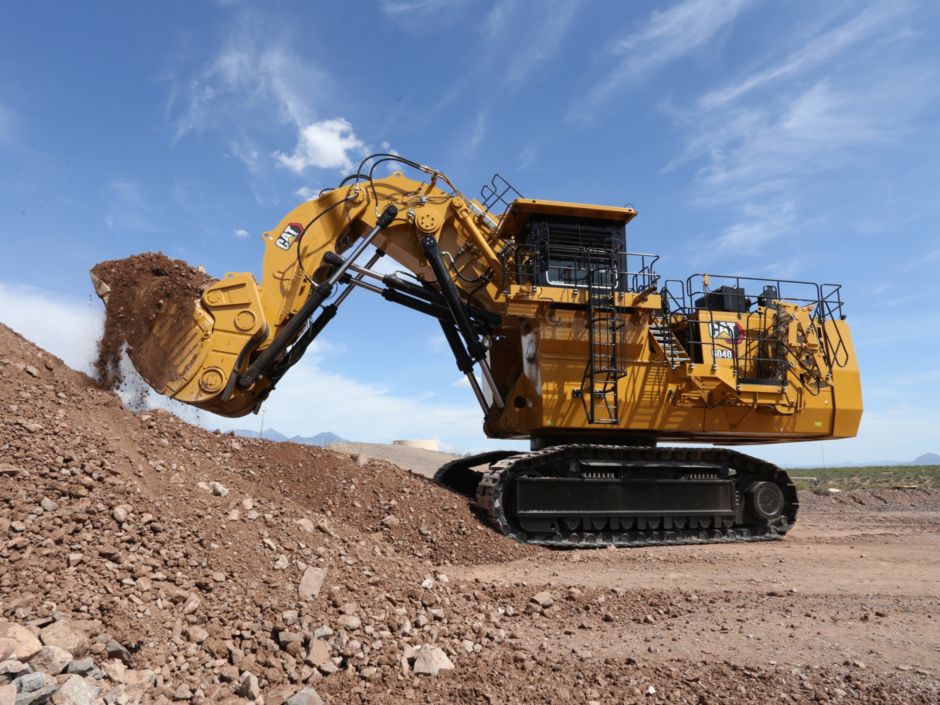

Used Caterpillar 6040 Hydraulic Excavator

Used Caterpillar 6040 Hydraulic Excavator

Product Introduction

This used Caterpillar 6040 hydraulic excavator renowned for its excellent performance and robust durability is Designed for global large-scale mining and extreme working conditions, it combines impressive productivity, unparalleled durability, and top-tier reliability, making it an ideal choice for major resource extraction and large earthmoving projects.

Product Parameter

Models	6040 / 6040 FS (Face-Shovel Configuration)
Specification Item	Parameter Value
​Engine Power (SAE J1995)​​	1,550 kW
​Bucket Payload​	39.6 t
​Operating Weight​	404,600 kg (6040 FS) / 407,300 kg (6040)
​Standard Track Shoe Width​	1,200 mm (1,600 mm optional)
​Ground Pressure​	24.1 N/cm² (6040 FS) / 24.3 N/cm² (6040)
​Engine Model​	2 × Cat C32
​Gross Power (SAE J1995)​​	1,550 kW
​Net Power (SAE J1349)​​	1,428 kW
​Number of Cylinders (per engine)​​	12
​Bore × Stroke​	145 mm × 162 mm
​Displacement​	32.1 L
​Air Induction​	Turbocharged and Air-to-Air Aftercooled
​Fuel Tank Capacity​	7,940 L
​Emission Standards​	Compliant with U.S. EPA Tier 4 Final and EU Stage V
​System Voltage​	24V
​Batteries​	6 × 210Ah batteries (each 12V), total capacity 630Ah/24V in series/parallel
​Hydraulic Tank Capacity (approx.)​​	3,400 L
​Total Hydraulic System Capacity (approx.)​​	5,800 L
​Main Pumps​	4 Variable Displacement Axial Piston Pumps
​Main Pump Max. Flow​	4 × 724 L/min
​Swing Pumps​	4 Reversible Displacement Axial Piston Pumps
​Swing Pump Max. Flow​	4 × 321 L/min
​Max. Pressure – Implement​	300 bar
​Max. Pressure – Travel/Swing Pump​	350 bar
​Fan Diameter​	1,524 mm
​Cooling Pump Flow​	2 × 799 L/min
​Hydraulic Oil Cooling System Features​	Independent cooling circuit, thermostatically controlled fan speed, uses combination of gear pump and axial piston pump for efficient cooling
​Max. Travel Speed – 1st Gear​	1.5 km/h
​Max. Travel Speed – 2nd Gear​	2.5 km/h
​Max. Drawbar Pull​	2,097 kN
​Max. Gradeability​	0.57 (or 57%)
​Track Shoes (per side)​​	42
​Bottom Rollers (per side)​​	7
​Carrier Rollers (per side)​​	2
​Travel Drive (per side)​​	1 planetary gearbox with 2 two-stage axial piston motors
​Swing Drive​	3 compact planetary gearboxes with axial piston motors
​Max. Swing Speed​	4.7 r/min
​Swing Bearing​	Triple-row roller bearing
​Swing Parking Brake​	Spring-applied / Hydraulically-released multi-disc wet brake
​Swing System Features​	Closed-loop swing circuit with torque control, hydraulic braking, dust wiper, and automatic central lubrication system
​Operator’s Eye Level (approx.)​​	6.8 m
​Cab Interior Dimensions – Length​	2,200 mm
​Cab Interior Dimensions – Width​	1,600 mm
​Cab Interior Dimensions – Height​	2,150 mm

Product Features

1. Peak Productivity, Efficient Operation: Benefiting from fast cycle times and powerful digging forces, its theoretical peak capacity reaches up to 4,000 tons per hour. Equipped with two Cat C32 engines compliant with U.S. EPA Tier 4 Final / EU Stage V emission standards, requiring no Diesel Exhaust Fluid (DEF), it delivers strong power while simplifying maintenance procedures.
2. Robust Structure, Extended Service Life: With a target design life of at least 60,000 hours, increased operating weight up to 18%, and key structures utilizing heavy-duty castings at pivot points, it ensures stability in harsh conditions and a long remaining service life.
3. Intelligent and Reliable, Stable Operation: Enhanced undercarriage systems, optimized routing and isolation of hydraulic lines and cables significantly improve reliability. The closed-loop swing system not only shortens cycle times but also improves energy efficiency and reduces heat generation.
4. Safety First, Comprehensive Design: All windows use safety glass, with optional armored windshield. Equipped with five emergency shutdown switches, plus hydraulically operated access stairs and an emergency escape ladder located near the cab, ensuring all-around operator safety.
5. Economy & Maintenance:
   • Easy Maintenance Design: Neatly arranged hoses and components, along with centralized daily service points (e.g., for coolant, hydraulic oil), make inspection and maintenance easier and more efficient.
   • Enhanced Reliability: Improved dust removal systems and optimized hose and coupling layouts reduce daily failures, maximize uptime, and lower overall maintenance costs.
   • Advanced Connectivity Technology: Features factory-installed monitoring and diagnostic systems along with Product Link™, facilitating remote equipment management, troubleshooting, and fleet efficiency optimization.

Product Current Condition

1. The machine is structurally sound, with core components (such as the twin engines, hydraulic system, undercarriage) functioning normally and in good working condition.
2. Complete maintenance records are available, with no major structural damage or persistent leaks.
3. Professionally assessed and ready for immediate deployment to high-intensity construction projects.
4. Comprehensive after-sales technical support and services are available.
