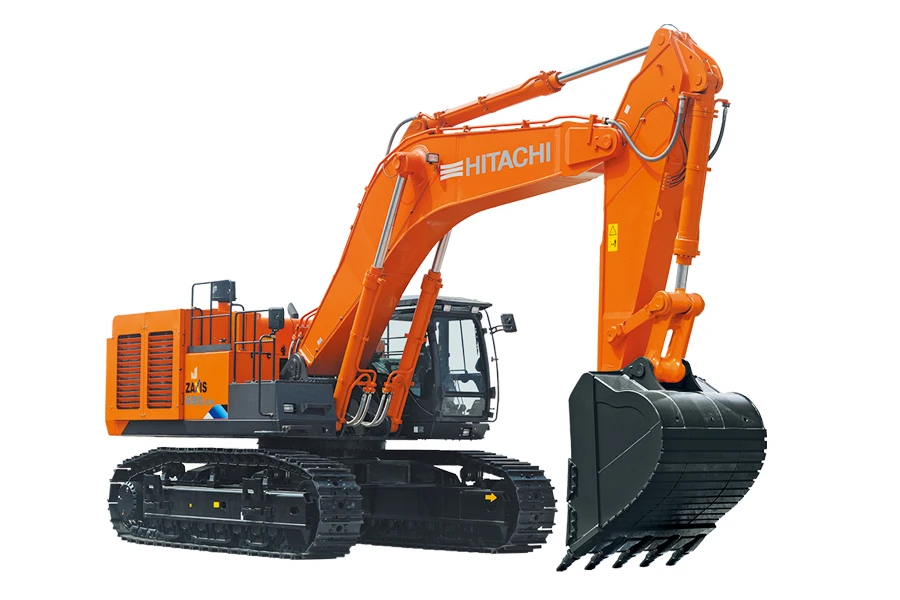

Used Hitachi ZX690LCH-5A  Hydraulic Excavator

Used Hitachi ZX690LCH-5A  Hydraulic Excavator

Product Introduction

This Hitachi ZX690LCH-5A combines excellent performance with high cost-effectiveness, making it capable of handling large earthmoving projects. It inherits Hitachi Construction Machinery’s consistent reliability and durability, with mature and stable core systems, serving as a powerful partner to help you reduce costs, improve efficiency, and deliver long-term returns.

Product Parameter

Detailed Item	Parameter Value
Model	ZX690LCH-5A(BE)
Model Abbreviation	690
Operating Weight (t)	69.1
Travel Mode	Crawler
Bucket Type	Backhoe
Model	Isuzu GH-6WG1XKSA-02
Type	4-cycle, Water-cooled, Direct Injection
Rated Power (kW)	345
Rated Speed (r/min)	1800
Max. Torque (N·m)	1980
Total Displacement (L)	15.681
Number of Cylinders	6
Bore × Stroke (mm)	147 × 154
Engine Brand	Isuzu
Swing Speed (rpm)	9
Operating Weight (kg)	69100
Bucket Capacity (m³)	4
Travel Speed (High/Low) (km/h)	5.2 / 3.6
Length × Width × Height (Transport) (mm)	13400 × 4360 × 3660
Cab Height (mm)	1530
Counterweight Ground Clearance (mm)	1530
Track Contact Length (mm)	4590
Track Total Length (mm)	5840
Track Shoe Width (mm)	650
Track Overall Width (mm)	3950 / 3480
Track Gauge (mm)	3300 / 2830
Min. Ground Clearance (mm)	860
Min. Swing Radius (Front End) (mm)	5240
Rear Swing Radius (mm)	4020
Max. Digging Reach (mm)	11780
Max. Digging Reach at Ground Level (mm)	11490
Max. Digging Depth (mm)	7170
Max. Digging Height (mm)	11150
Max. Dumping Height (mm)	7340
Max. Vertical Digging Depth (mm)	5050
Fuel Tank (L)	920
Hydraulic Oil Tank (L)	380
Engine Oil Capacity (L)	57
Coolant (L)	70
Main Pump Type	2 variable axial piston pumps, 1 gear pump
Main Pump Max. Flow (L/min)	2 × 489
Travel Hydraulic Motor Type	2 axial piston motors with parking brake
Swing Hydraulic Motor Type	2 axial piston motors
Work Circuit Pressure (MPa)	31.9
Travel Circuit Pressure (MPa)	34.3
Swing Circuit Pressure (MPa)	29.4
Pilot System Max. Pressure (MPa)	3.9
Pilot System Max. Flow (L/min)	50
Boom Cylinder – Qty. × Bore × Stroke (mm)	2 – 190 × 130
Arm Cylinder – Qty. × Bore × Stroke (mm)	1 – 200 × 140
Bucket Cylinder – Qty. × Bore × Stroke (mm)	1 – 180 × 130

Product Features

1. Perfect Combination of Efficient Power and Precision Hydraulics
   • Premium Power plant: Equipped with an imported high-efficiency engine, offering ample power reserve and rapid response, ensuring stable output even under harsh working conditions.
   • Intelligent Hydraulics: Utilizes the advanced HIOS IIIB hydraulic system, which features low energy loss and precise, smooth control. Excellent coordination in compound movements significantly enhances digging and leveling efficiency, achieving “fast, accurate, and stable” performance.
   • Economical Operation: Features a dedicated ECO mode that intelligently adjusts output based on actual load, ensuring high working efficiency while substantially reducing fuel consumption and effectively controlling your operating costs.
2. Robust Structure and Durable Quality Assurance
   • Reinforced Frame: The main structure employs a reinforced design with optimized key components, providing high resistance to fatigue and durability, capable of withstanding long-term, high-intensity operating challenges.
   • Reliable Components: High-quality manufacturing processes and mechanical/electrical components ensure an extended service life and extremely low failure rate, minimizing downtime due to repairs.
3. Human-Centric, Safe and Comfortable Operation
   • Panoramic Cabin: The spacious and bright cabin offers an unparalleled wide field of view, effectively eliminating blind spots and ensuring operational safety.
   • Ergonomic Design: Features a high-performance shock-absorbing suspension seat and a human-engineered control layout, significantly reducing operator fatigue during long shifts and enhancing productivity and comfort.
   • Comprehensive Safety Features: Standard equipment includes front window protective mesh, neutral-start system, rear view camera, and other safety devices, providing all-around protection for both the operator and the machine.
4. Modern Design: Eco-Friendly and Easy Maintenance
   • Environmental Standards: Complies with China National III emission standards and utilizes advanced technologies like EGR to effectively reduce pollutant emissions. Low noise operation makes it suitable for urban and noise-sensitive areas.
   • Ease of Maintenance: The design fully considers maintenance convenience, with easily accessible daily service points that streamline inspection and repair processes, helping to reduce long-term maintenance costs and downtime.

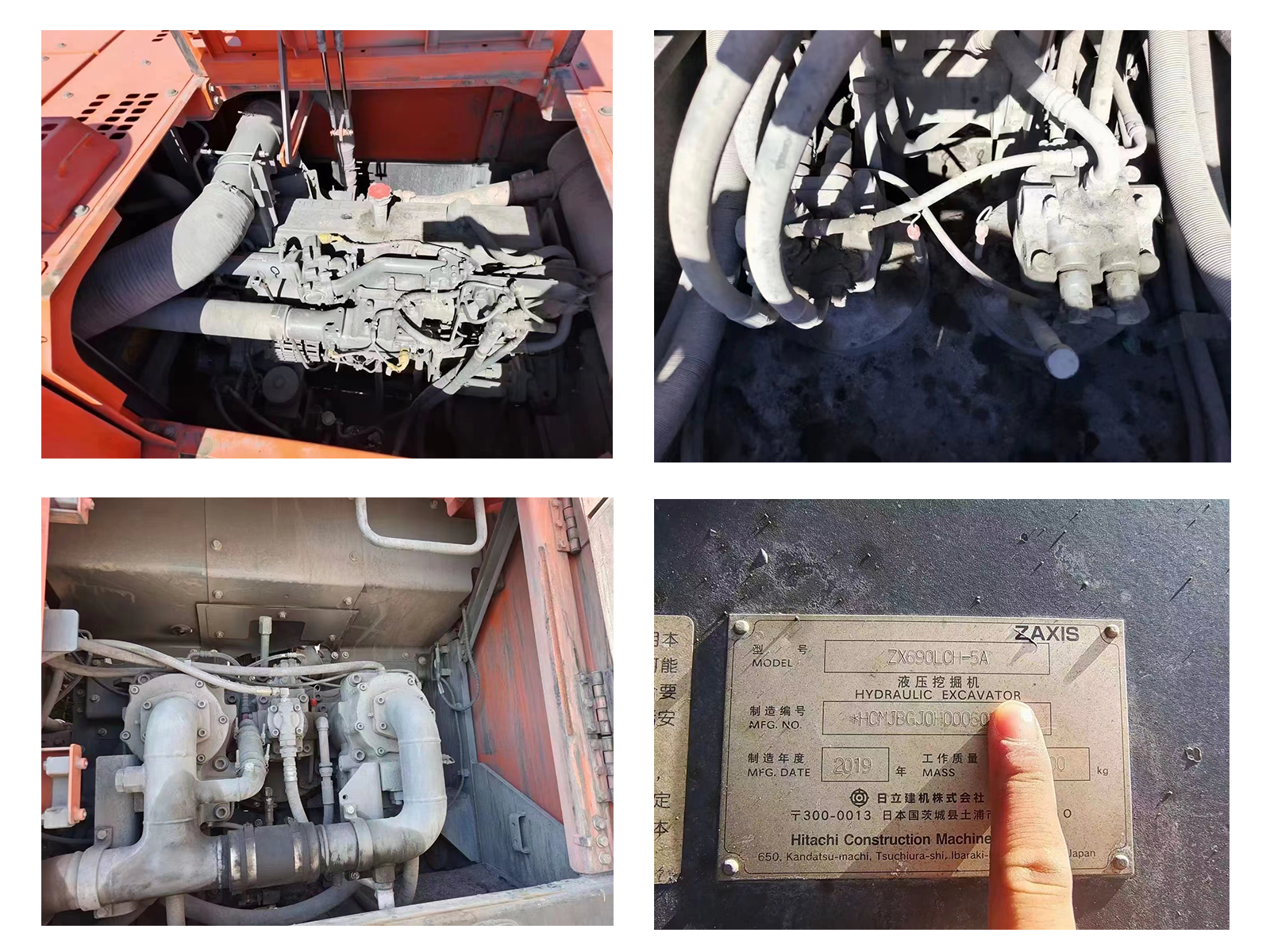

Product Current Condition
